Toyota CORONA FF COUPE — FRONT BUMPER & BUMPER STAY

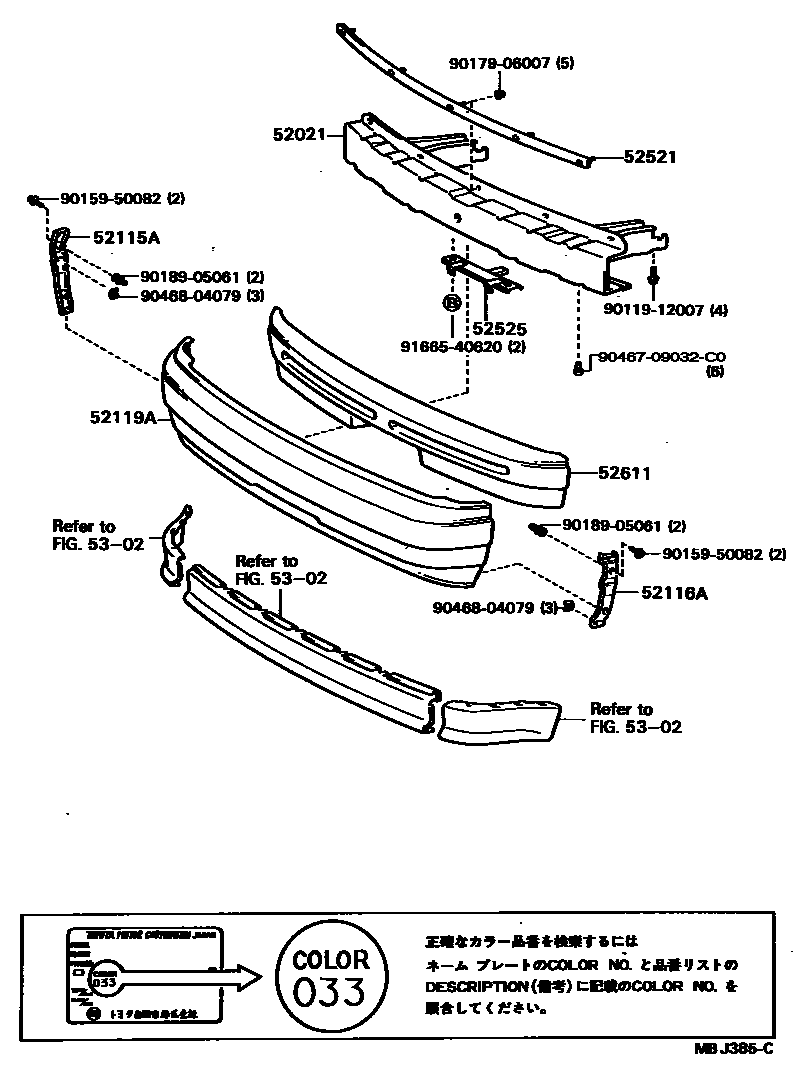

Parts diagram

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20100i198508-198708

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20160i198508-198708

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20140i198508-198708

52119ACOVER, FRONT BUMPER

main52119-20230-02i198508-198708

RED,SUPER RED 2,3E5

main52119-20230-03i198508-198708

SILVER-M,BLUISH SILVER M,160

main52119-20230-04i198508-198605

BLUE-M,ATLAS BLUE METALLIC,8D4

main52119-20230-08i198508-198605

WHITE,WHITE,041

main52119-20230-13i198508-198708

DARK GRAY-M,DARK GRAY METALLIC,162

main52119-20230-14i198605-198708

BLUE-M,BLUE METALLIC,8D7

main52119-20230-18i198605-198708

SUPER WHITE,SUPER WHITE 2,040

main52119-20230-23i198508-198605

SILVER-M,SILVER/GRAY METALLIC,2Z5

main52119-20230-33i198605-198708

SILVER-M,SILVER/SILVER,24C

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20060i198508-198511

main52521-20061i198511-198708

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-20060i198508-198708

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20060i198508-198708

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011912007

main90119-12007

9015950082

main90159-50082

9017906007

main90179-06007

9018905061

main90189-05061

9046709032C0

main90467-09032C0

9046804079

main90468-04079

9166540620

main91665-40620

15 parts on this diagram · 1 diagram in section

FRONT BUMPER & BUMPER STAY for Toyota CORONA FF COUPE

This section contains 15 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota CORONA FF COUPE. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, RETAINER, FRONT BUMPER, UPPER CENTER.
