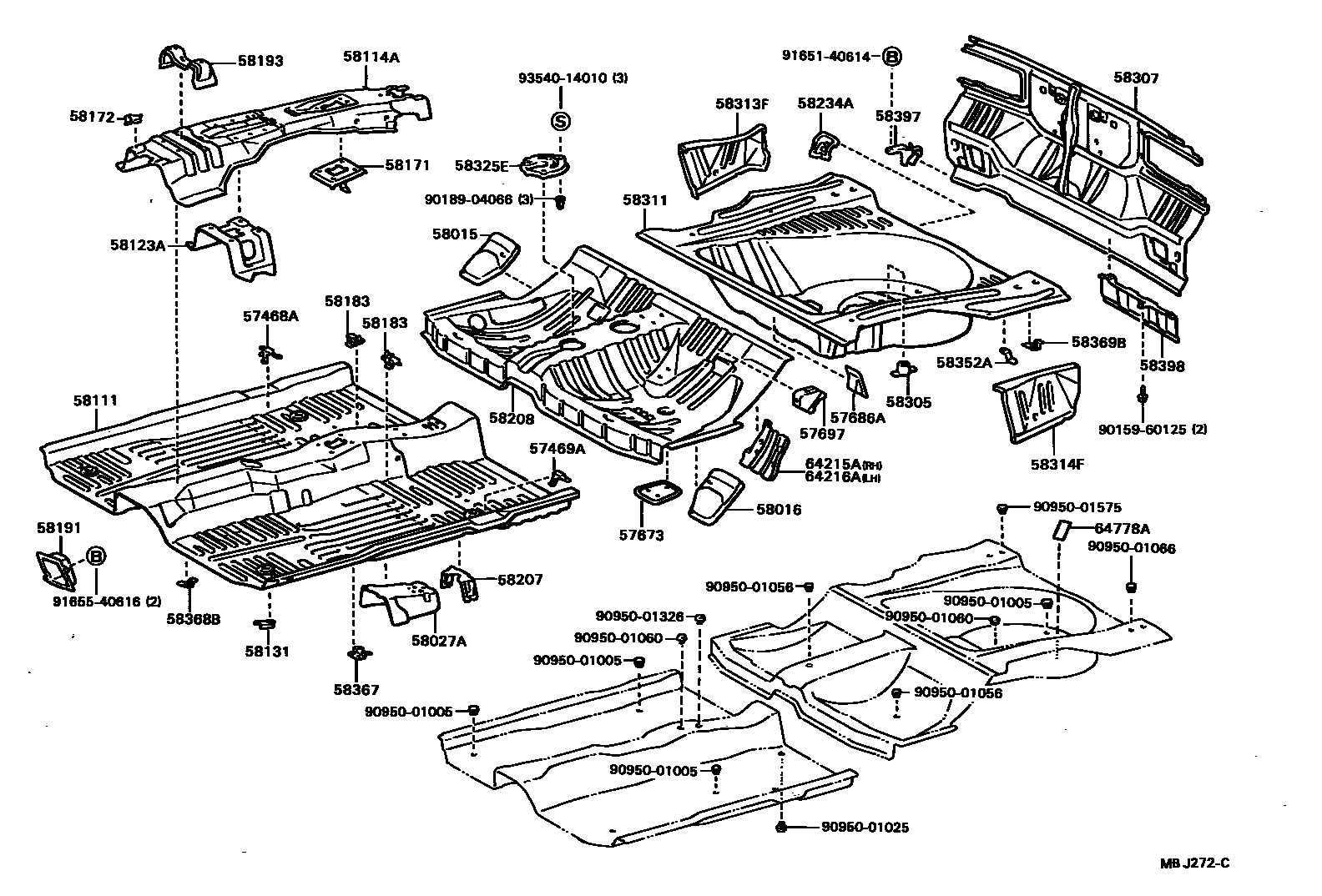

Toyota CORONA FF COUPE — FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57697RETAINER, REAR SEAT CUSHION
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58208PAN, CENTER FLOOR
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58352ABRACKET, REAR FLOOR STAY
58367BRACKET, FUEL TUBE CLAMP
58368BBRACKET, FUEL TUBE, NO.2
58369BBRACKET, FUEL TUBE, NO.3
58397COVER, LOWER BACK, OUTER RH
58398COVER, LOWER BACK, OUTER LH
64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH
64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH
64778APROTECTOR, SPARE WHEEL
9015960125
main90159-60125
9018904066
main90189-04066
9095001005
main90950-01005
9095001025
main90950-01025
9095001056
main90950-01056
9095001060
main90950-01060
9095001066
main90950-01066
9095001326
main90950-01326
9095001575
main90950-01575
9165140614
main91651-40614
9165540616
main91655-40616
9354014010
main93540-14010
47 parts on this diagram · 1 diagram in section
FLOOR PAN & LOWER BACK PANEL for Toyota CORONA FF COUPE
This section contains 47 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CORONA FF COUPE. Key components include: BRACKET, FRONT SEAT, OUTSIDE, REAR RH, BRACKET, FRONT SEAT, OUTSIDE, REAR LH, BRACKET, REAR SEATBACK HINGE MOUNTING, BRACKET, FUEL TANK MOUNTING, REAR RH, RETAINER, REAR SEAT CUSHION.
