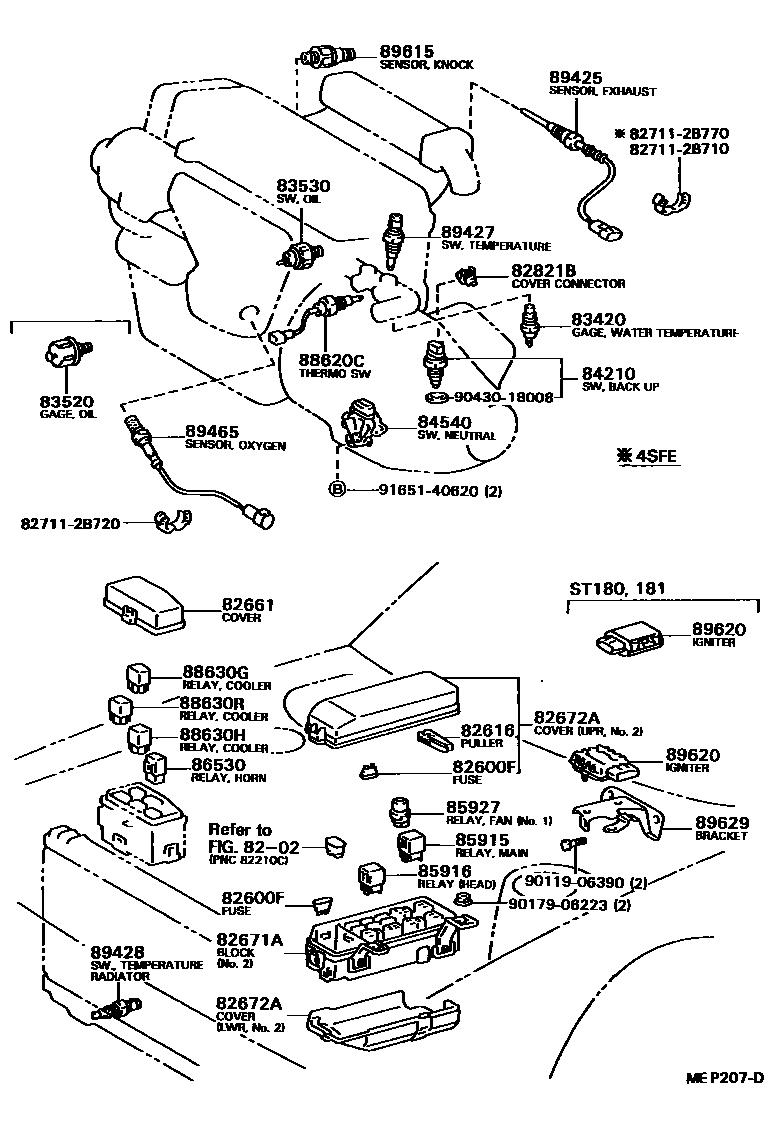

Toyota CORONA EXIV — SWITCH & RELAY & COMPUTER
8202WIRING & CLAMP
82600FFUSE, FUSE BLOCK
82616PULLER, FUSE
82661COVER, RELAY BLOCK, NO.1
82672ACOVER, JUNCTION BLOCK
LOWER,NO.2
UPPER,NO.2
82821BCOVER, CONNECTOR
83420GAGE ASSY, WATER TEMPERATURE SENDER
83520GAGE ASSY,OIL PRESSURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
HEADLAMP
TAIL LAMP
85927RELAY, COOLING FAN
NO.2
NO.1
86530RELAY ASSY, HORN
88620CTHERMO SWITCH ASSY
88630GRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89425SENSOR, EXHAUST GAS TEMPERATURE
89427SWITCH, TEMPERATURE DETECT
89428SWITCH, TEMPERATURE DETECT, NO.2
RADIATOR
WATER INLET
WATER INLET
RADIATOR
89465SENSOR, OXYGEN
89615SENSOR, KNOCK CONTROL
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
827112B710WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B710
827112B720WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B720
827112B770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B770
9011906390
main90119-06390
9017906223
main90179-06223
9043018008
main90430-18008
9165140620
main91651-40620
34 parts on this diagram · 5 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota CORONA EXIV
This section contains 108 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota CORONA EXIV. Key components include: FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP, FUSE, FUSE BLOCK, FUSE, MEDIUM CURRENT, PULLER, FUSE.
