Toyota CORONA EXIV — REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
SUPER WHITE 2,040
WARM GRAY PEARL MICA,046
WHITE PM,049
LT. GREIGE ME.,1A2
SILVER ME,199
BLACK,202
RED MICA,3K4
DK. GREEN MICA,6M1
DK.BLUE M.M.,8L2
52561RETAINER, REAR BUMPER, UPPER CENTER
52562BRETAINER, REAR BUMPER, UPPER RH
52565ARETAINER, REAR BUMPER, LOWER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
9017906132
main90179-06132
9043005019
main90430-05019
9046705113
main90467-05113
9046708185
main90467-08185
9046709143
main90467-09143
11 parts on this diagram · 1 diagram in section

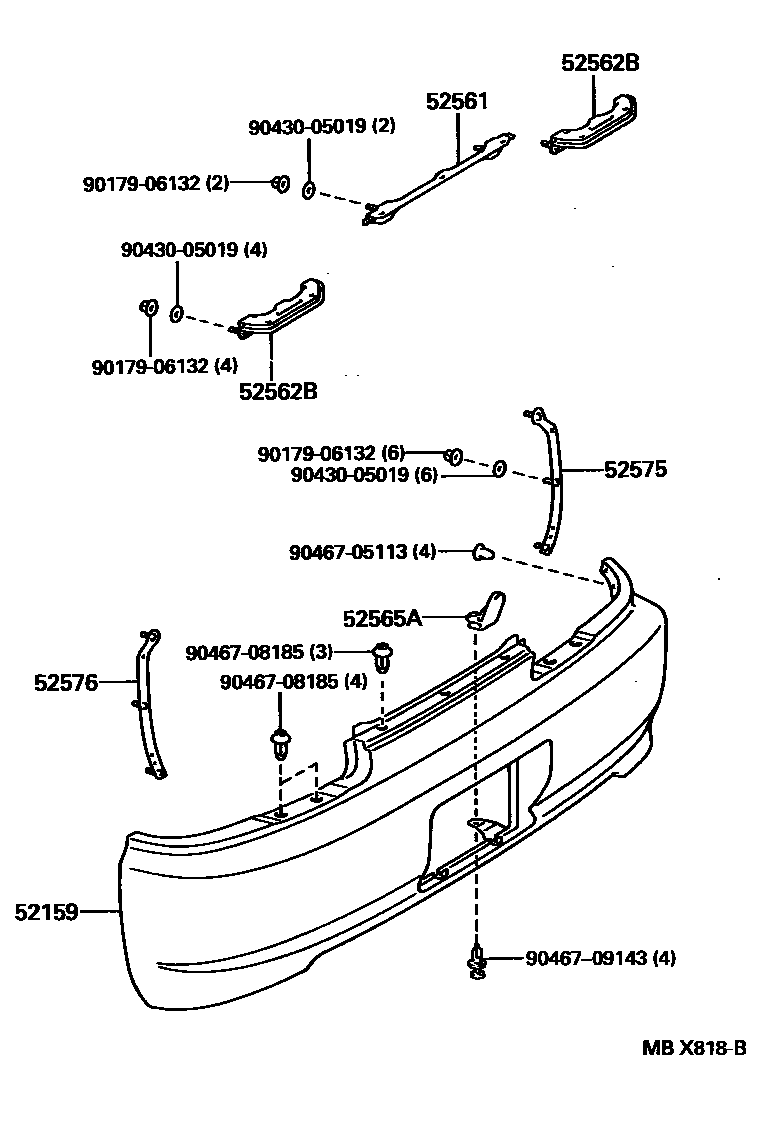

REAR BUMPER & BUMPER STAY for Toyota CORONA EXIV
This section contains 11 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota CORONA EXIV. Key components include: COVER, REAR BUMPER, RETAINER, REAR BUMPER, UPPER CENTER, RETAINER, REAR BUMPER, UPPER RH, RETAINER, REAR BUMPER, LOWER, RETAINER, REAR BUMPER SIDE, RH.
