Toyota CORONA EXIV — ANTENNA

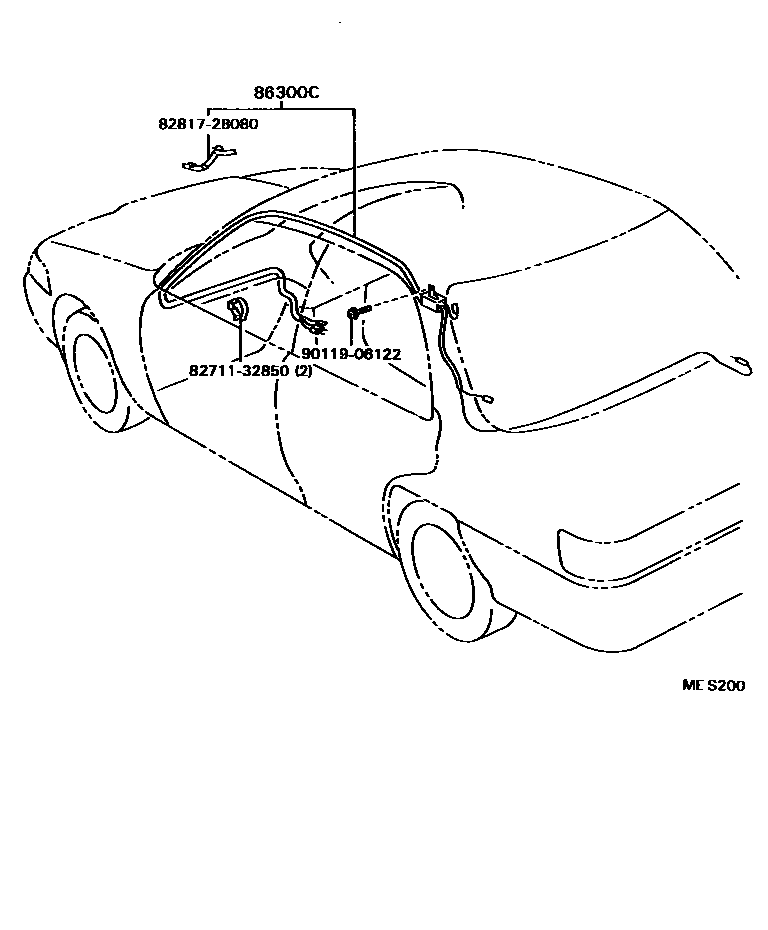

Parts diagram

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-20790i198909-199309

main86300-20800i198909-199108

main86300-20810i198909-199309

main86300-20820i199110-199309

main86300-20830i198909-199309

main86300-20840i198909-199309

main86300-20850i198909-199309

main86300-20860i198909-199309

8271132850WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32850

828172B080PROTECTOR, WIRING HARNESS, NO.1

main82817-2B080

9011906122

main90119-06122

4 parts on this diagram · 1 diagram in section

ANTENNA for Toyota CORONA EXIV

This section contains 4 genuine Toyota parts for the ANTENNA system of the Toyota CORONA EXIV. Key components include: ANTENNA ASSY, AMPLIFIER, NO.2, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER), PROTECTOR, WIRING HARNESS, NO.1.
