Toyota CORONA/CARINA 2 — PARTIAL ENGINE ASSEMBLY

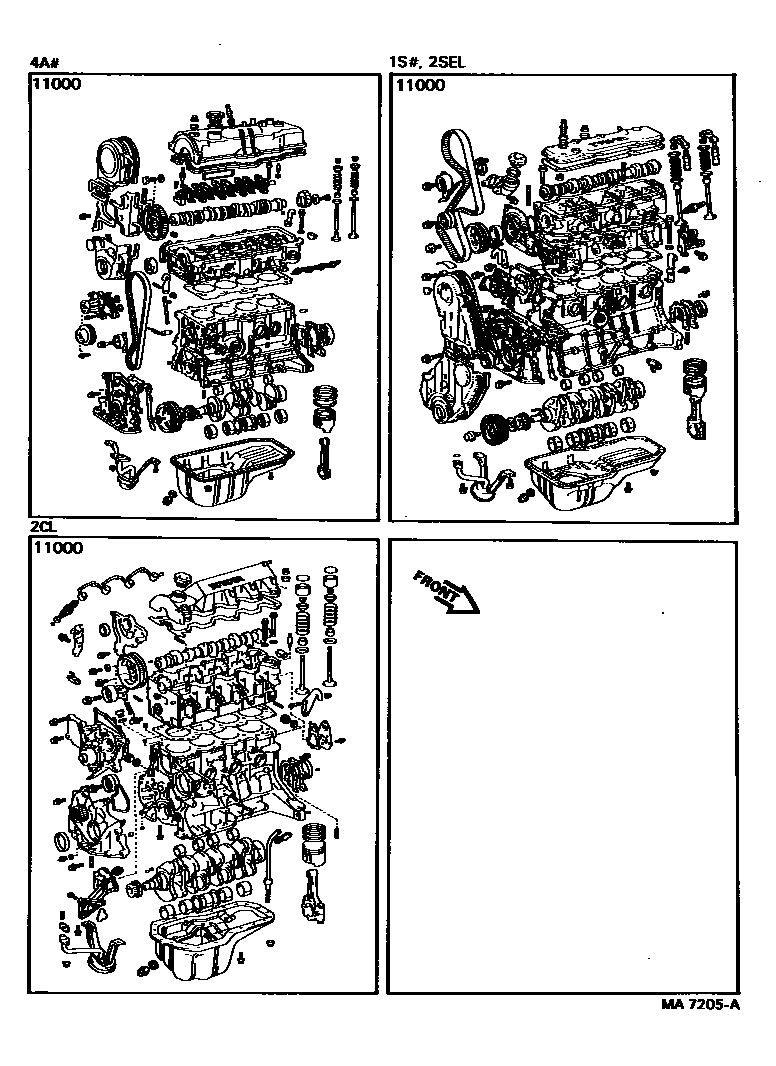

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-16030i198310-198508

main19000-16040i198508-198608

main19000-16260i198608

main19000-16280i198508-198711

main19000-16290i198508-198711

SINGAPORE SPEC

main19000-63031i198508-198607

NEW ZEALAND SPEC

main19000-63032i198607-198608

NEW ZEALAND SPEC

main19000-63070i198310-198607

main19000-63071i198607-198711

main19000-63100i198508-198607

main19000-63101i198607-198711

main19000-63110i198608-198711

NEW ZEALAND SPEC

main19000-64100i198310-198508

main19000-64210i198508-198608

main19000-64211i198608-198711

main19000-64220i198508-198608

main19000-64221i198608-198711

main19000-74040i198508-198607

main19000-74041i198607-198711

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota CORONA/CARINA 2

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota CORONA/CARINA 2. Key components include: ENGINE ASSY, PARTIAL.
