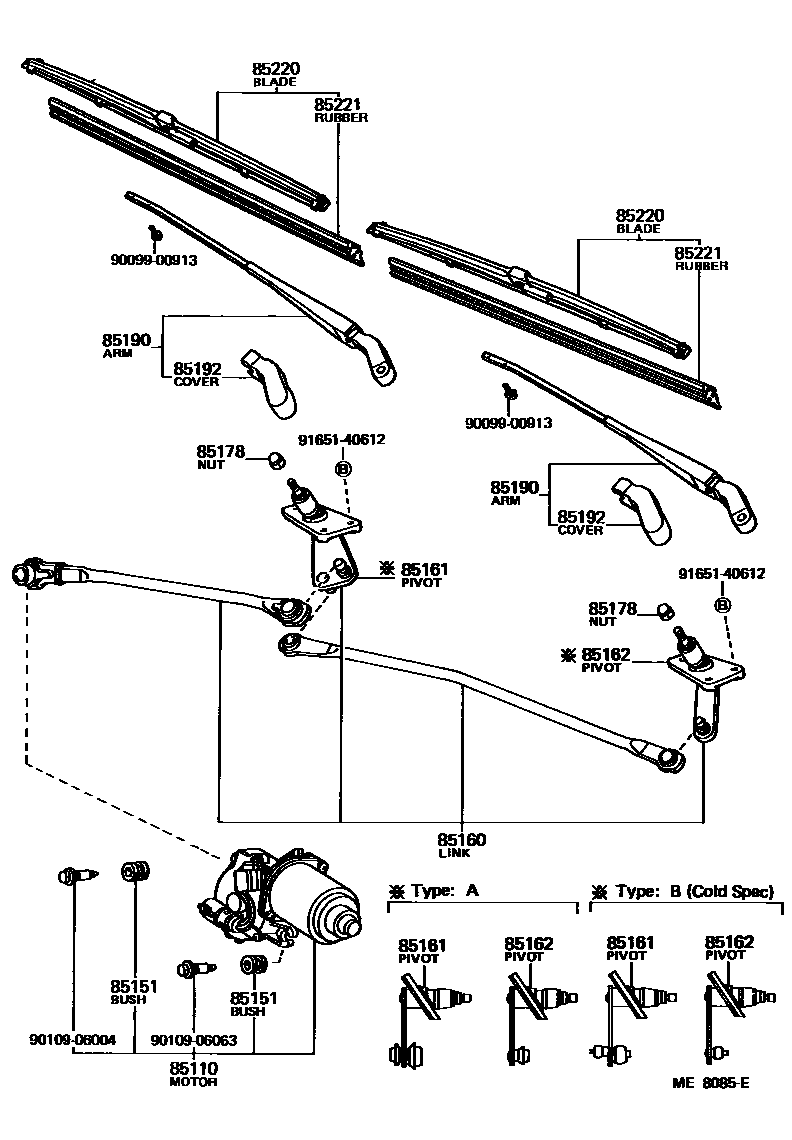

Toyota COROLLA — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12240iAE71,TE72..USA197908-198307

main85110-12250iAE71,TE72198108-198307

COLD SPEC

sub85110-12251

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-22070×4iTE72197908-198307

85160LINK ASSY, WINDSHIELD WIPER

main85160-12261iTE72..SED,WG197908-198108

main85160-12281iTE72..(CP,HT,LB)..USA197908-198103

main85160-12310iAE71,TE72..SED,WG198108-198307

main85160-12330iAE71,TE72..CP,HT,LB198108-198307

85161PIVOT, WINDSHIELD WIPER LINK, NO.1

main85161-12261iTE72..SED,WG197908-198103

TYPE:A

main85161-12271iTE72..SED,WG197908-198103

TYPE:B (COLD SPEC)

main85161-12281iTE72..CP,HT,LB197908-198103

TYPE:A

main85161-12291iTE72..CP,HT,LB197908-198103

TYPE:B (COLD SPEC)

85162PIVOT, WINDSHIELD WIPER LINK, NO.2

main85162-12262iTE72..SED,WG197908-198108

TYPE:A

main85162-12271iTE72..SED,WG197908-198103

TYPE:B (COLD SPEC)

main85162-12281iTE72..CP,HT,LB197908-198108

TYPE:A

main85162-12291iTE72..CP,HT,LB197908-198103

TYPE:B (COLD SPEC)

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08016×2iTE72197908-198108

main90179-08026×2iAE71,TE72..CP,HT,LB198108-198307

85190ARM ASSY, WINDSHIELD WIPER

main85190-12450×2iTE72..SED,WG197908-198108

RH&LH

main85190-12480iTE72..CP,HT,LB197908-198108

LH

main85190-12510iAE71,TE72..SED,WG198108-198307

LH

main85190-12530iTE72..CP,HT,LB198108-198110

LH

main85190-12531iAE71,TE72..CP,HT,LB198110-198307

LH

main85210-12020iTE72..CP,HT,LB197908-198108

RH

main85210-12040iAE71,TE72..SED,WG198108-198307

RH

main85210-12060iTE72..CP,HT,LB198108-198110

RH

main85210-12061iAE71,TE72..CP,HT,LB198110-198307

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-12040×2iTE72197908-198108

main85192-12050×2iAE71,TE72..CP,HT,LB198108-198307

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12330×2iTE72197908-198108

sub85220-20130

main85220-14320iAE71,TE72198108-198307

RH

sub85220-16270

main85220-14370iAE71,TE72198108-198307

LH

sub85220-16150

85221BLADE, WINDSHIELD WIPER

main85221-12120×2iAE71,TE72198108-198307

sub85214-24H90

main85221-20080×2iTE72197908-198108

sub85221-14H90

9009900913

main90099-00913

9010906004

main90109-06004

9010906063

main90109-06063

9165140612

main91651-40612

14 parts on this diagram · 2 diagrams in section
