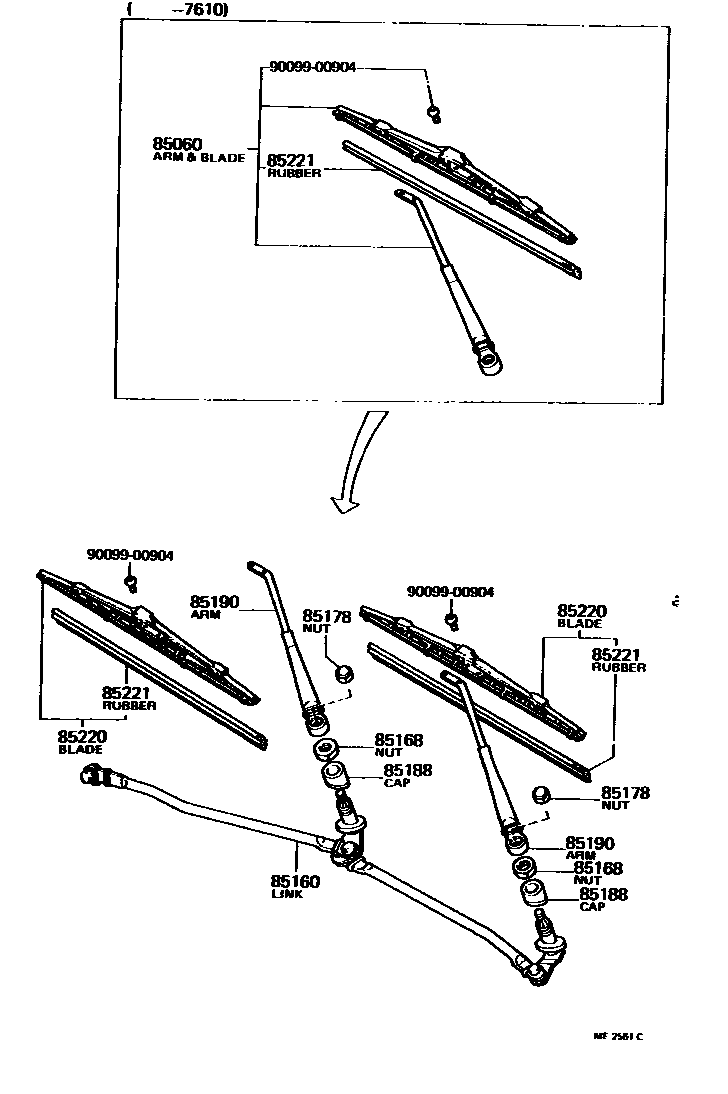

Toyota COROLLA — WINDSHIELD WIPER

0001 1 0002 1 0003 1 0004 1

85060ARM AND BLADE ASSY, WINDSHIELD WIPER

main85060-12060×2iKE3#,TE3#197408-197610

SILVER

sub90099-00904

main85060-12140×2iTE51197603-197610

sub90099-00904

main85060-12150×2iKE30,TE31..SPL197608-197610

BLACK

sub90099-00904

85160LINK ASSY, WINDSHIELD WIPER

main85160-12130iTE37;KE30,TE31,38..USA197708-197802

DENSO

main85160-12131iKE30,TE3#..USA197802-197908

DENSO

main85160-12140iTE51..USA197708-197710

TANAKA

main85160-12200iTE51..USA197708-197801

DENSO

main85160-12201iTE51..USA197801-197908

DENSO

main85160-12210iKE30,50,TE3#,51..CND197708-197710

ARCTIC

main85160-12211iTE31..MTM;KE30,TE37,38;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197802-197908

ARCTIC

main85160-12220iKE50,TE51197603-197908

ARCTIC

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-12180×2iKE3#,50,TE3#,51197701-197708

TANAKA,SILVER

main85168-12190×2iTE51..USA197708-197710

TANAKA,BLACK

main85186-12090×2iKE3#,TE3#197408-197511

DENSO

main85186-12170×2iKE30,50,TE3#,51197708-197902

DENSO,BLACK

main85186-12171×2iKE30,50,TE3#,51197902-197908

DENSO,BLACK

main85186-12210×2iKE3#,50,TE3#,51197511-197708

DENSO,SILVER

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08005×2iKE3#,50,TE3#,51197502-197708

SILVER

main90176-08008×2iKE3#,TE3#197408-197502

main90176-08019×2iKE30,TE31..SPL197608-197706

BLACK

main90176-08021×2iTE51..SR5197701-197708

BLACK

main90179-08015×2iKE30,TE31..SPL197706-197708

BLACK

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85179-12170×2iKE30,50,TE3#,51197708-197908

DENSO,BLACK

main85179-12210×2iKE3#,50,TE3#,51197511-197708

DENSO,SILVER

main85179-20060×2iKE3#,TE3#197408-197511

DENSO

main85180-12180×2iKE3#,TE3#197408-197701

TANAKA,SILVER

main85180-12190×2iTE51..SR5197701-197708

BLACK

85190ARM ASSY, WINDSHIELD WIPER

main85190-12260×2iKE3#,TE3#197610-197708

SILVER

main85190-12290iKE50,TE51197701-197708

TANAKA

main85190-12320×2iKE50,TE51197610-197708

DENSO

main85190-12330×2iKE30,TE31..SPL197610-197706

BLACK

main85190-12331×2iKE30,TE31..SPL197706-197708

BLACK

main85190-12350×2iTE51..SR5197701-197706

BLACK

main85190-12351×2iTE51..SR5197706-197708

BLACK

main85190-12400×2iKE30,TE3#197710-197908

BLACK

main85190-12410×2iKE50,TE51197710-197711

BLACK

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12180×2iTE51..SR5197701-197708

BLACK

main85220-12190×2iKE30,50,TE3#,51197708-197710

BLACK

main85220-12260×2iKE30,50,TE3#,51197710-197908

BLACK

sub85220-22101

main85220-20090×2iKE3#,50,TE3#,51197610-197708

SILVER

85221BLADE, WINDSHIELD WIPER

main85221-12010×2iTE51..SR5197701-197708

main85221-12070×2iKE30,50,TE3#,51197710-197908

sub85221-89102

main85221-14010×2iKE3#,50,TE3#,51197408-197708

sub85221-16020

main85221-20050×2iKE30,50,TE3#,51197708-197710

sub85221-20H90

9009900904

main90099-00904

9 parts on this diagram · 4 diagrams in section
