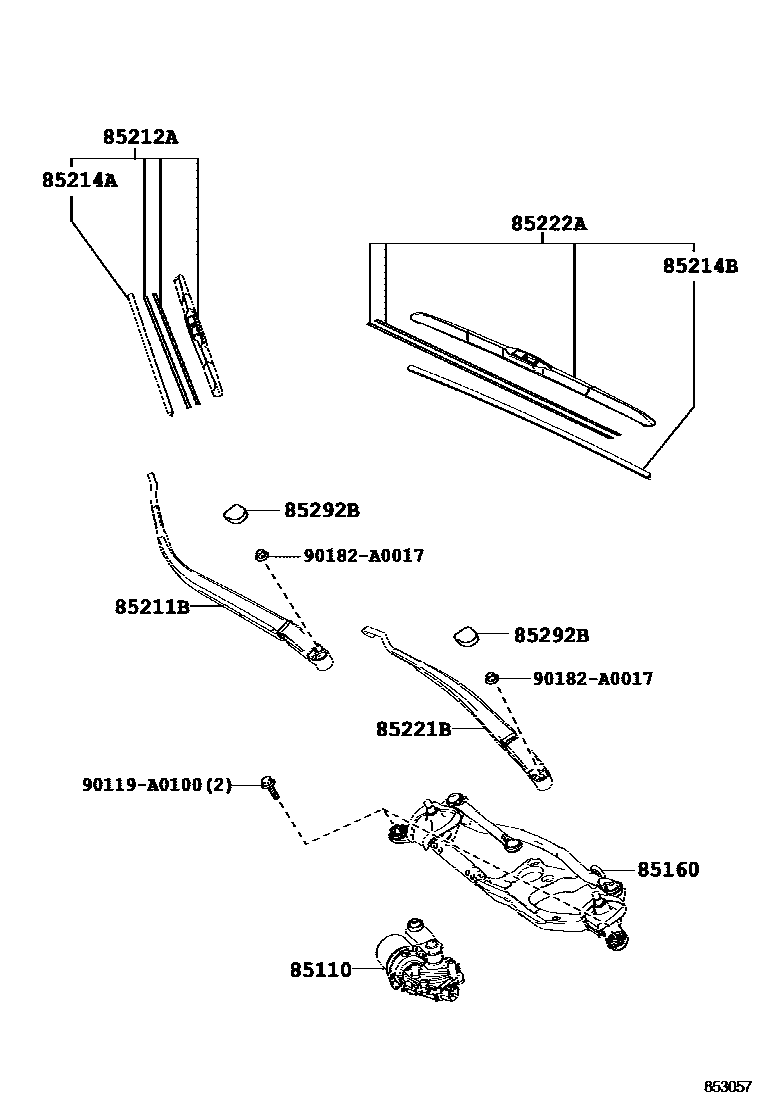

Toyota COROLLA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02350iZRE172201308-201608

85160LINK ASSY, WINDSHIELD WIPER

main85150-02310iZRE172201308-201608

85211BARM, FRONT WIPER, RH

main85211-02310iZRE172201308-201608

85212ABLADE, FR WIPER, RH

main85212-0R050iZRE172201308-201608

85214ARUBBER, WIPER, RH

main85214-0R040iZRE172201308-201608

85214BRUBBER, WIPER, LH

main85214-02340iZRE172201308-201608

85221BARM, FRONT WIPER, LH

main85221-02330iZRE172201308-201608

85222ABLADE, FR WIPER, LH

main85222-02280iZRE172201308-201608

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2iZRE172201308-201608

90119A0100

main90119-A0100

90182A0017

main90182-A0017

11 parts on this diagram · 1 diagram in section
