Toyota COROLLA — WINDSHIELD WASHER

1603

85033CAP ASSY, WINDSHIELD WASHER

main85332-16010iAE71,TE72..USA197908-198307

main85332-20060iAE71,TE72197908-198307

COLD SPEC

sub85332-12320

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-10140iAE71..USA198208-198307

sub85310-89105

main85310-12120iTE72..USA197908-198108

sub85310-89105

main85310-14030iTE72..USA198108-198201

main85310-1B010iTE72..USA198201-198208

sub85310-89105

main85310-20130iAE71,TE72197908-198307

COLD SPEC

sub85310-12130

85330JAR ASSY, WINDSHIELD WASHER

main85330-12090iTE72..USA197908-198002

main85330-12091iAE71,TE72..USA198002-198307

main85330-12120iTE72197908-198002

COLD SPEC

main85330-12121iAE71,TE72198002-198307

COLD SPEC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAE71,TE72..USA197908-198307

main90099-32103iAE71,TE72197908-198307

COLD SPEC

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010iTE72197908-198208

COLD SPEC

main85333-20020iAE71..MTM198208-198307

COLD SPEC

85345NOZZLE, WINDSHIELD WASHER

main85341-12110iAE71,TE72..USA197908-198307

LH

main85341-12120iAE71..SED,WG198208-198307

LH,COLD SPEC

main85341-12130iAE71,TE72..USA197908-198307

RH

main85341-12140iTE72197908-198208

RH,COLD SPEC

main85341-12160iAE71..CP,HT,LB198208-198307

LH,COLD SPEC

main85341-12170iAE71..CP,HT,LB198208-198307

RH,COLD SPEC

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-89101iAE71,TE72197908-198307

3 WAY TYPE,COLD SPEC

main85349-20010iAE71,TE72197908-198307

2 WAY TYPE,COLD SPEC

sub85334-22480

main85355-14010iAE71,TE72..USA197908-198307

3 WAY TYPE

sub85348-12250

main85355-87201×2iAE71,TE72..USA197908-198307

2 WAY TYPE

sub85349-89122

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33332iAE71..MTM198208-198307

*H,L=280,COLD SPEC

main90445-09003iAE71..ATM198208-198307

L=280,COLD SPEC

main90446-06013iAE71..ATM..USA198208-198307

L=1000(*H,L=280)

main90446-06341iTE72..USA197908-197912

L=1000(*H,L=280)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33334iAE71,TE72197912-198307

L=1450(*H,L=1300),COLD SPEC

main90099-33344iTE72197908-197912

L=1300

main90446-06006iAE71,TE72..USA197912-198307

L=2000,*H,L=1200

main90446-06014iTE72..USA197908-197912

L=1200

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAE71,TE72..USA197912-198307

L=1450(*H,L=60)

main90099-33332iTE72197908-197912

*H,L=700,COLD SPEC

main90445-09001iAE71,TE72197908-198307

L=60,COLD SPEC

main90446-06013iAE71,TE72..USA197912-198307

L=1450(*H,L=710)

main90446-06056iTE72..USA197908-197912

L=1450(*H,L=710)

8533320020FILTER, WINDSHIELD WASHER JAR

main85333-20020

9015950025

main90159-50025

9046304566

main90463-04566

9046306038

main90463-06038

9165140612

main91651-40612

9166140616

main91661-40616

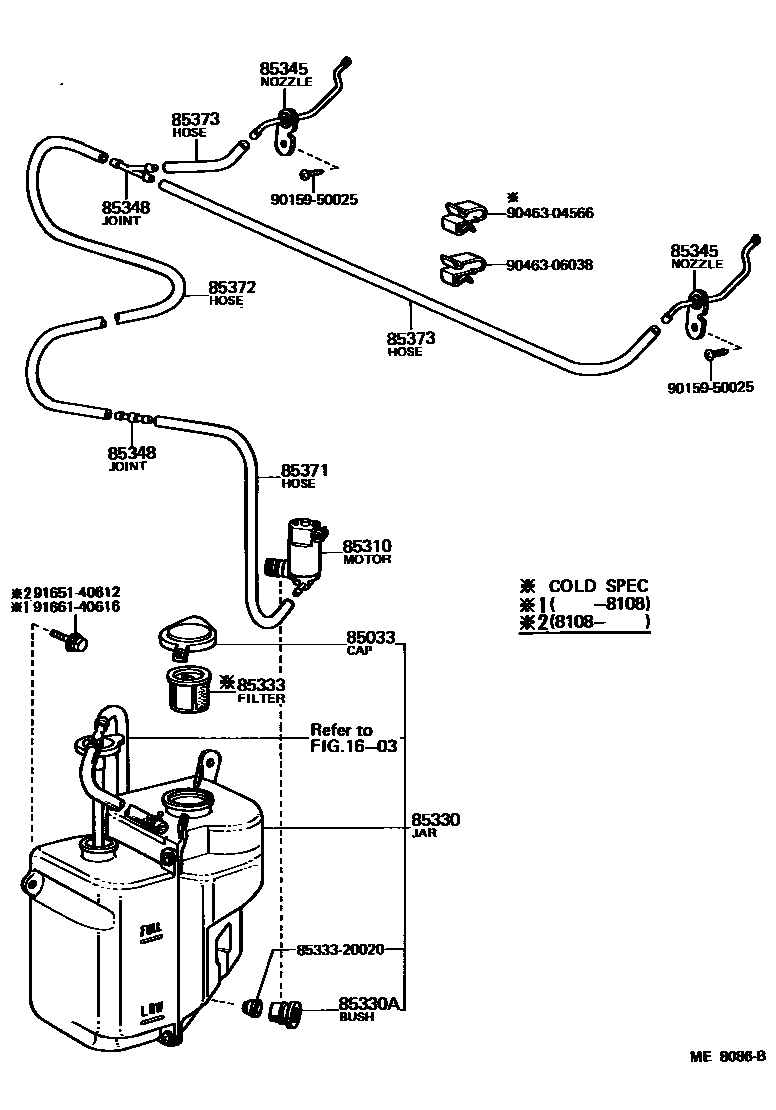

17 parts on this diagram · 1 diagram in section
