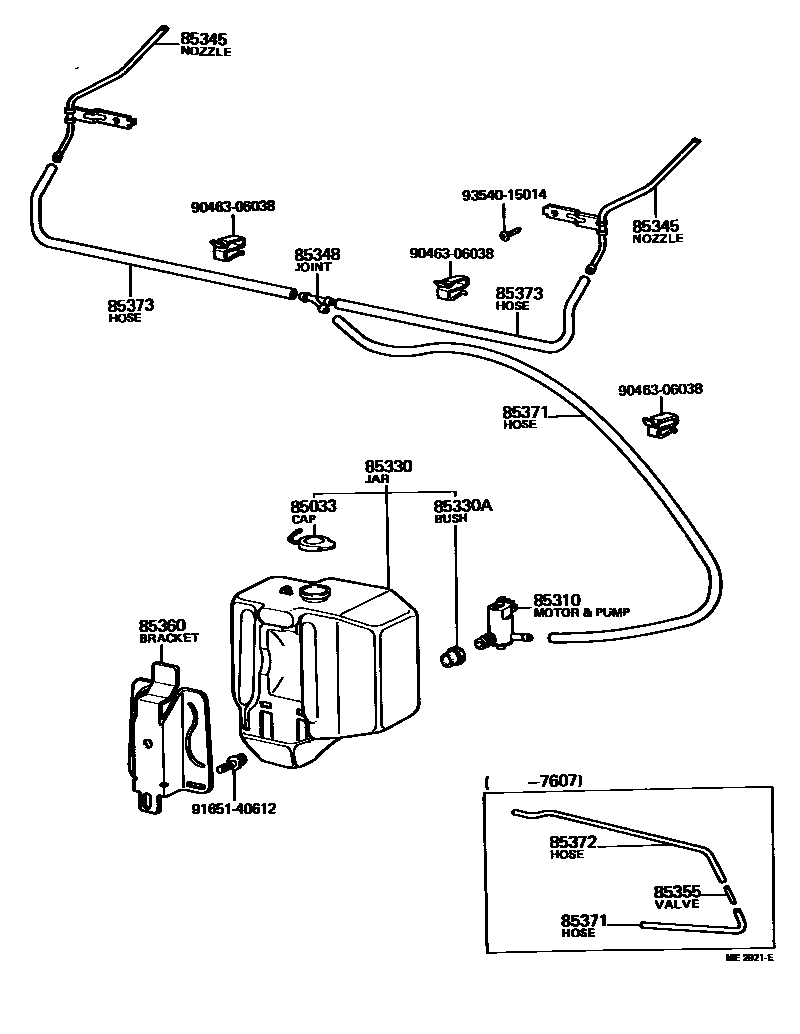

Toyota COROLLA — WINDSHIELD WASHER

0001 1 0002 1

85033CAP ASSY, WINDSHIELD WASHER

main85332-20040iTE31..MTM;KE30,50,TE37,38,51;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197710-197808

ARCTIC

main85332-20060iTE31..MTM;TE31..A40..DLX;KE30,50,TE37,38,51;TE31..A40..SPL..CND197808-197908

ARCTIC

sub85332-12320

main85332-30050iKE3#,50,TE3#,51197408-197908

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12020iKE3#,TE3#,51197408-197701

main85310-12070iTE31..MTM;KE30,50,TE37,38,51;TE31..A40..(DLX,STD)197708-197710

ARCTIC

sub85310-89115

main85310-12071iTE31..MTM;KE30,50,TE37,38,51;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197710-197808

ARCTIC

sub85310-89115

main85310-12100iTE31..MTM;TE31..A40..DLX;KE30,50,TE37,38,51;TE31..A40..SPL..CND197808-197908

ARCTIC

sub85330-12290

main85310-20100iKE3#,50,TE3#,51197701-197908

sub85310-22080

85330JAR ASSY, WINDSHIELD WASHER

main85330-12050iKE3#,TE3#,51197408-197701

main85330-12051iKE3#,50,TE3#,51197701-197908

main85330-12070iTE31..MTM;KE3#,50,TE37,38,51;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197701-197808

ARCTIC

main85330-12072iTE31..MTM;TE31..A40..DLX;KE30,50,TE37,38,51;TE31..A40..SPL..CND197808-197908

ARCTIC

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32057iKE3#,TE3#,51197408-197701

main90099-32089iKE3#,50,TE3#,51197701-197908

main90099-32103iTE31..MTM;TE31..A40..DLX;KE30,50,TE37,38,51;TE31..A40..SPL..CND197808-197908

ARCTIC

85345NOZZLE, WINDSHIELD WASHER

main85341-12010iKE3#,TE3#197408-197908

RH.

main85341-12020iKE3#,TE3#197408-197908

LH.

main85341-12050iKE50,TE51197603-197908

RH.

main85341-12060iKE50,TE51197603-197908

LH.

main85341-12070iTE31..MTM;KE30,TE37,38;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197710-197908

RH,ARCTIC

main85341-12080iTE31..MTM;KE30,TE37,38;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197710-197908

LH,ARCTIC

main85341-12090iKE50,TE51197710-197908

RH,ARCTIC

main85341-12100iKE50,TE51197710-197908

LH,ARCTIC

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-22010iTE31..MTM;KE30,50,TE37,38,51;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197710-197908

T TYPE

main85355-14010iKE3#,50,TE3#,51197408-197908

Y TYPE

sub85348-12250

85355VALVE, WINDSHIELD WASHER HOSE

main85031-14020iKE3#,TE3#,51197408-197607

sub85031-14010

85360BRACKET ASSY, WINDSHIELD WASHER

main53752-12020iKE3#,TE3#,51197408-197701

main53752-12030iKE3#,50,TE3#,51197701-197908

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33245iKE3#,50,TE3#,51197607-197908

L=900

sub90446-06013

main90099-33289iKE3#,TE3#,51197408-197607

L=1000(*H,L=160)

main90099-33340iTE31..MTM;KE30,50,TE37,38,51;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197710-197908

L=700,ARCTIC

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33242iKE3#,TE3#,51197408-197607

L=1000(*H,L=280)

sub90446-06013

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33242×2iKE3#,50,TE3#,51197408-197908

L=1000(*H,L=280)

sub90446-06013

main90099-33337iTE31..MTM;KE30,50,TE37,38,51;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197710-197908

L=550,ARCTIC

main90099-33342iTE31..MTM;KE30,50,TE37,38,51;TE31..A40..SPL..CND;TE31..A40..(DLX,STD)197710-197908

L=50,ARCTIC

9046306038

main90463-06038

9165140612

main91651-40612

9354015014

main93540-15014

14 parts on this diagram · 2 diagrams in section
