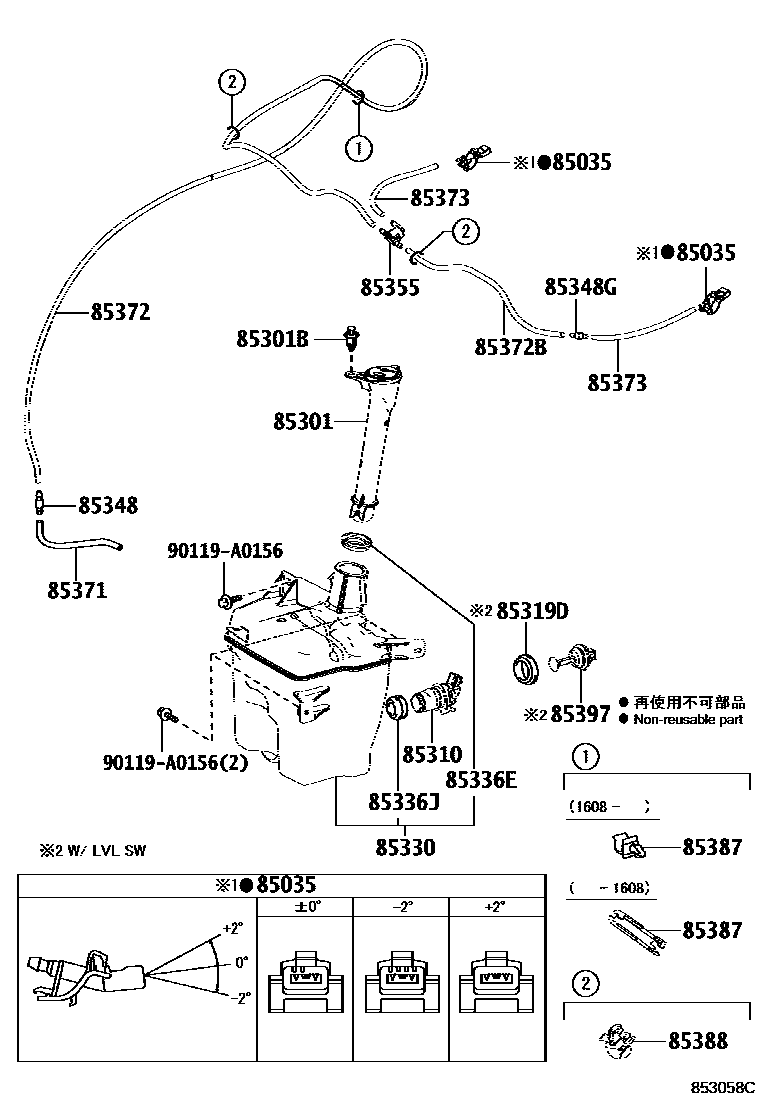

Toyota COROLLA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2iZRE172201308-201608

ANGLE 0

main85381-12420×2iZRE172201608

ANGLE +2

sub85381-0K060

main85381-12430×2iZRE172201608

ANGLE -2

85301INLET SUB-ASSY, WASHER

main85301-02050iZRE172201308-201608

85301BCLIP, WASHER

main90467-A0016-C0iZRE172201308-201608

BLACK

main90467-A0016-C3iZRE172201706

BLACK

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-06070iZRE172201411-201608

main85330-60190iZRE172201308-201410

85319DPACKING, FRONT WASHER

main85319-AA020iZRE172..CND201608

85330JAR ASSY, WINDSHIELD WASHER

main85315-02510iZRE172..CND201608

main85315-02520iZRE172..USA201308-201608

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iZRE172201308-201608

85336JPROTECTOR, WASHER JAR

main85336-60300iZRE172201308-201608

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85317-02300iZRE172201308-201608

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-02300iZRE172201308-201608

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iZRE172201308-201608

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33104iZRE172201308-201608

L=140

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33186iZRE172201308-201608

L=1920

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33065iZRE172201308-201608

L=390

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33187×6iZRE172201308-201608

L=170

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-02260iZRE172201308-201608

main85387-30400iZRE172201608

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-12040×2iZRE172201308-201608

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040iZRE172..CND201308-201608

90119A0156

main90119-A0156

19 parts on this diagram · 1 diagram in section
