Toyota COROLLA — V-BELT

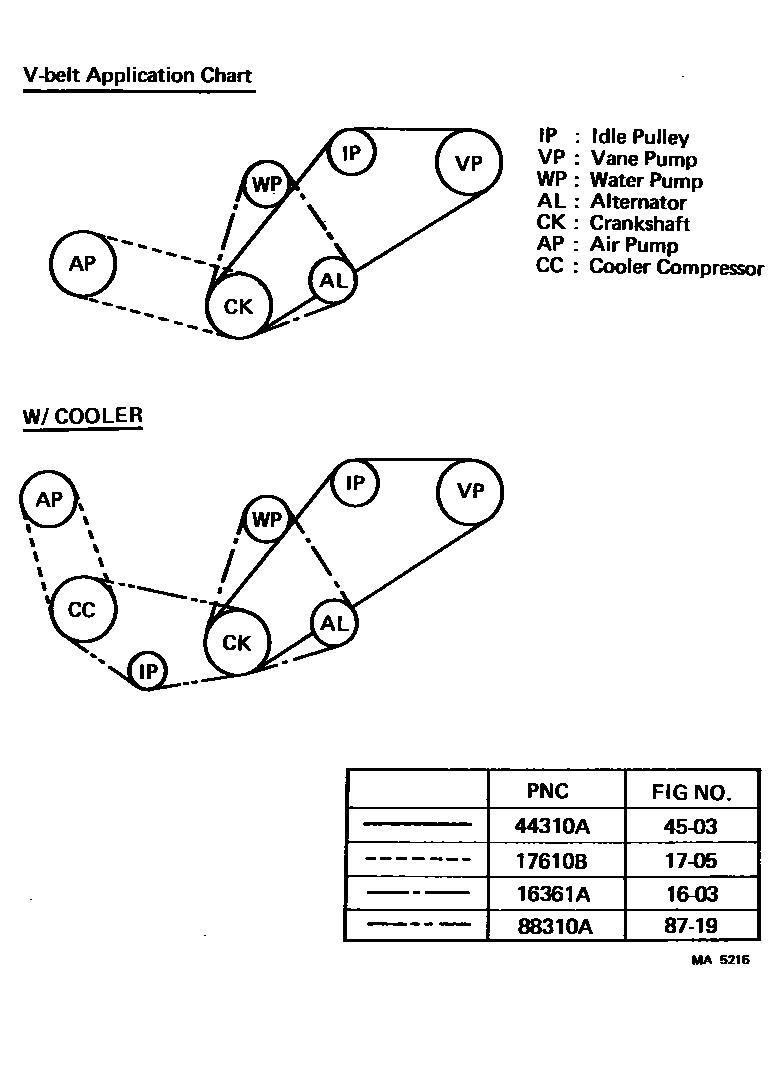

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02117i198208-198307

W/COOLER

main90916-02126i198208-198307

main99331-10885i197908-198208

1705AIR PUMP

→ Go to FIG 17-05

17610BBELT, V(FOR AIR PUMP)

main99332-10765i198008-198208

W/COOLER

main99332-10815i198008-198208

44310ABELT, V(FOR VANE PUMP)

main99332-00805i198208-198307

main99332-11080i197908-198208

L=1080

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10860i198208-198307

L=860

main99332-10965i197908-198008

8 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA

This section contains 8 genuine Toyota parts for the V-BELT system of the Toyota COROLLA. Key components include: RADIATOR & WATER OUTLET, BELT, V(FOR FAN & ALTERNATOR), AIR PUMP, BELT, V(FOR AIR PUMP), BELT, V(FOR VANE PUMP).
