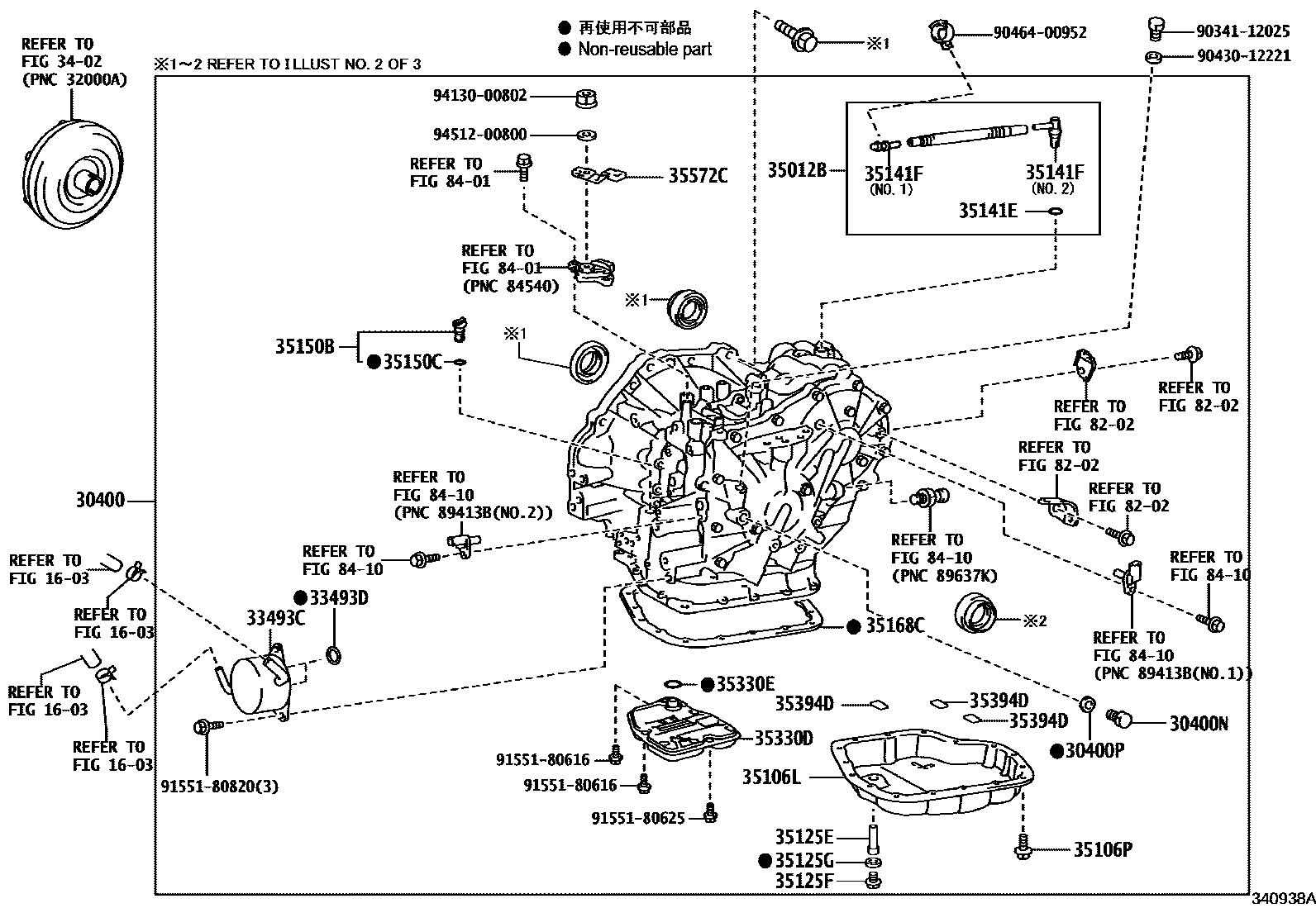

Toyota COROLLA — TRANSAXLE ASSY(CVT)
1603
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K313,TMH
30400NPLUG, REFILL(CVT)
30400PGASKET, REFILL PLUG(CVT)
33493CCOOLER, TRANSMISSION OIL
AISIN AW
TMH
33493DRING, O (FOR TRANSMISSION OIL COOLER)
3402
35012BHOSE SUB-ASSY, TRANSMISSION BREATHER
AISIN AW
TMH
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
TMH
AISIN AW
35106PBOLT(FOR TRANSAXLE OIL PAN)
35125ETUBE, OVERFLOW(CVT)
TMH
AISIN AW
35125FPLUG, OVERFLOW(CVT)
35125GGASKET, OVERFLOW PLUG(CVT)
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
NO.2
NO.1
35150BPLUG ASSY, TRANSMISSION CASE
35150CRING, O (FOR TRANSMISSION CASE PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35394DMAGNET, OIL CLEANER(CVT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
TMH
AISIN AW
8202
8401
8410
9034112025
main90341-12025
9043012221
main90430-12221
9046400952
main90464-00952
9155180616
main91551-80616
9155180625
main91551-80625
9155180820
main91551-80820
9413000802
main94130-00802
9451200800
main94512-00800
33 parts on this diagram · 3 diagrams in section
