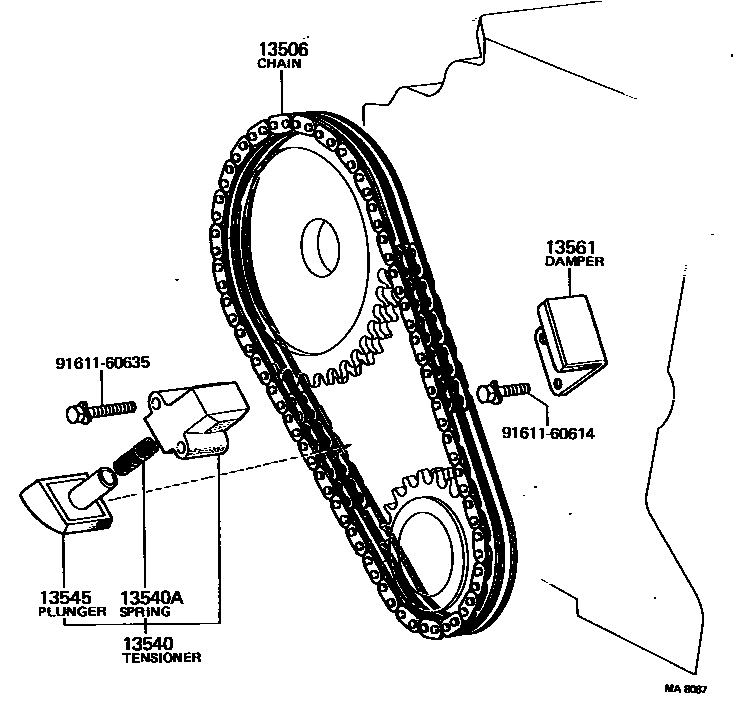

Toyota COROLLA — TIMING CHAIN
13506CHAIN SUB-ASSY
13540TENSIONER ASSY, CHAIN, NO.1
13540ASPRING, COMPRESSION(FOR CHAIN TENSIONER)
13545PLUNGER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
9161160614
main91611-60614
9161160635
main91611-60635
7 parts on this diagram · 2 diagrams in section
TIMING CHAIN for Toyota COROLLA
This section contains 9 genuine Toyota parts for the TIMING CHAIN system of the Toyota COROLLA. Key components include: CHAIN SUB-ASSY, TENSIONER ASSY, CHAIN, NO.1, SPRING, COMPRESSION(FOR CHAIN TENSIONER), PLUNGER, CHAIN TENSIONER, DAMPER, CHAIN VIBRATION, NO.1.
