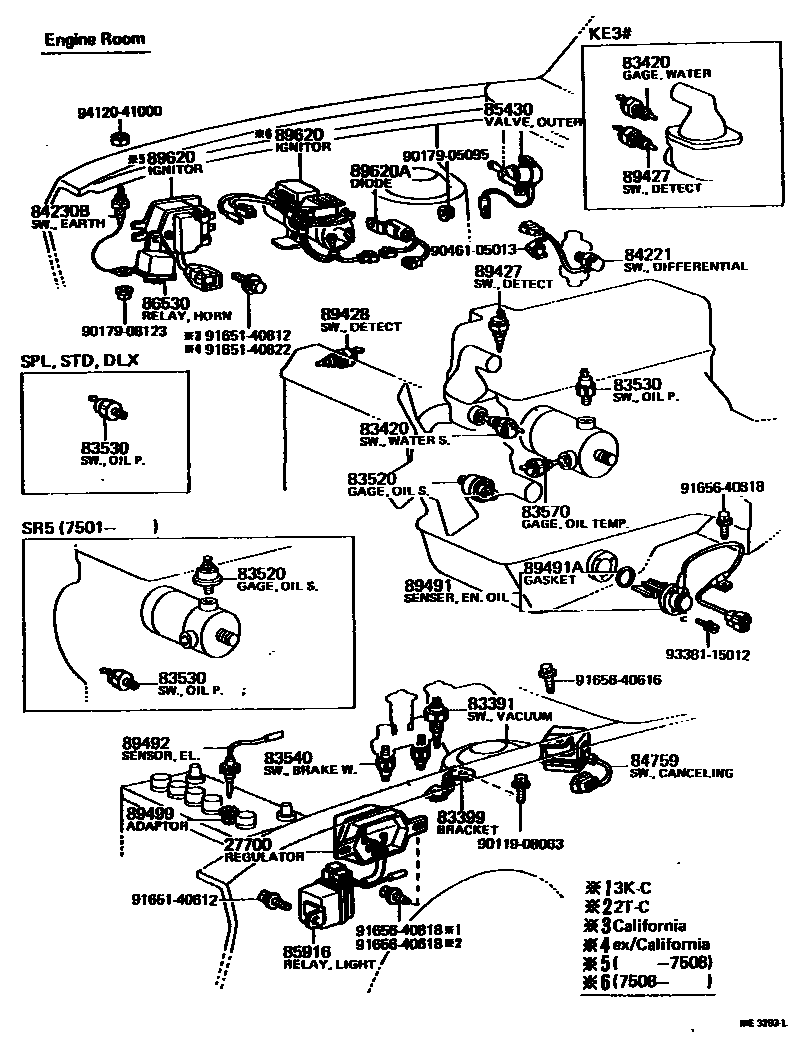

Toyota COROLLA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

27700REGULATOR ASSY, GENERATOR

main27700-24010i3KC..KE3#197505-197508

ARCTIC

main27700-24020i3KC..KE3#,50197608-197708

sub27700-54030

main27700-26020i2TC..TE3#197505-197508

ARCTIC

main27700-26030i2TC..TE3#,51..USA197808-197908

sub27700-38070

main27700-36010i3KC..KE3#197408-197608

sub27700-36020

main27700-38010i2TC..TE3#,51197408-197608

main27700-38050i2TC..TE3#,51197608-197706

main27700-38060i2TC..TE3#,51197706-197711

main27700-38100i3KC,2TC..KE30,50,TE3#,51197808-197908

W/HEAVY DUTY REAR DEFOGGER

sub27700-28030

83391SWITCH, VACUUM

main83391-12020iKE30..USA197608-197708

USA SPEC.

main83391-12050iKE30..USA197811-197908

main83391-14010iTE3#,51..USA197808-197908

FEDERAL SPEC.

83399BRACKET, VACUUM SWITCH

main83399-12020iKE30..USA197608-197708

USA SPEC.

main83399-12050iTE3#,51..USA197808-197908

CAL.& H.A.

main83399-20010iTE31..A40..SPL..USA;TE3#,51..(DLX,SR5)..USA197708-197908

FEDERAL SPEC.

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iKE3#,50,TE3#,51197408-197908

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14020iTE37,51..SR5197607-197908

sub83520-14021

main83520-30010iTE37,51..SR5197408-197607

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKE3#,TE3#..DLX,STD197408-197508

sub83530-14030

main83530-14010iTE37,51..SR5197408-197608

CALIFORNIA SPEC.(FOR FUEL PUMP

sub83530-14030

83540SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)

main84390-30011×2iKE3#,50..DLX,STD;KE30..K40..2D..USA197601-197708

CANADA SPEC.

83570GAGE ASSY, OIL TEMPERATURE SENDER

main83420-12010iTE37,51..SR5197408-197805

84221SWITCH ASSY, DIFFERENTIAL VALVE

main84220-12030iTE31;KE30,TE37,38,51..DLX,SPL,SR5197703-197708

USA SPEC.

main84220-12040iTE3#,51;KE30..USA197708-197908

main84220-20031iTE31;KE30,TE37,38,51..DLX,SPL,SR5197601-197703

USA SPEC.

84230BSWITCH ASSY, EARTH

main84241-12010×2iKE30,50,TE3#,51..CND197708-197808

main84241-20010×2iTE3#..CND;KE30..K40..2D197808-197908

CANADA SPEC.

84759SWITCH ASSY, INTERLOCK CANCELING

main84759-12021iTE3#197408-197411

USA SPEC.

85430VALVE, OUTER VENT CONTROL

main85430-12010iKE30..USA197708-197908

main85430-12020iTE3#,51..USA197708-197908

85916RELAY, LIGHT CONTROL

main85919-12010iKE3#,TE3#,51197408-197609

main85919-12011iKE3#,TE3#,51197609-197701

main90987-01001iKE3#,50,TE3#,51197701-197908

sub90999-99088

86530RELAY ASSY, HORN

main86530-20050iKE3#,TE3#197506-197508

main86530-22010iKE3#,TE3#197408-197506

89427SWITCH, TEMPERATURE DETECT

main89428-12020iTE3#197408-197508

MARK=35

main89428-12030iTE3#197408-197508

MARK=60,CALIFORNIA SPEC.

main89428-12040iKE30,50..CND197708-197811

MARK=105-60

main89428-12070iKE30..USA197608-197706

MARK=40B,USA SPEC.

main89428-12120iKE30,50..CND197811-197908

MARK=105-60

main89428-12130iKE30..USA197811-197908

MARK=60

main89428-22010iKE3#197408-197508

MARK=105-60,CANADA SPEC.

89428SWITCH, TEMPERATURE DETECT, NO.2

main89427-12010iTE37,38,51;TE31..MTM..USA;TE31..A40..DLX197608-197708

MARK=13-105,CAL.& H.A.

main89427-12011iTE3#,51..USA197811-197908

MARK=13-105,CAL.& H.A.

main89428-12080iKE3#,50197608-197811

MARK=95

main89428-30030iKE30,50197811-197908

MARK=95

89491SENSOR, ENGINE OIL LEVEL

main89491-12900iTE37..USA197508-197701

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90301-25094iTE37..USA197508-197701

89492SENSOR, ELECTROLYTE LEVEL

main89492-20040iTE37..USA197508-197701

89499ADAPTER, ELECTROLYTE LEVEL SENSOR

main89499-20010iTE37..USA197508-197701

89620IGNITER ASSY

main89620-12010iTE3#197408-197508

main89620-12020iTE3#,51197508-197605

sub89620-20H90

main89620-12021iTE3#,51197605-197608

ARCTIC & CALIFORNIA SPEC.

sub89620-20H91

main89620-12022iTE37,38,51;TE31..MTM..USA;TE31..A40..DLX197608-197701

ARCTIC,CAL.& H.A.

main89620-12023iTE37,38,51;TE31..MTM..USA;TE31..A40..DLX197701-197708

ARCTIC,CAL.& H.A.

main89620-12040iTE3#197505-197508

ARCTIC

main89620-12050iTE3#,51197605-197608

sub89620-20H91

main89620-12070iKE30..USA197608-197701

USA SPEC.

main89620-12071iKE30..USA197701-197708

USA SPEC.

main89620-12090iTE3#,51..DLX,SR5197608-197701

main89620-12091iTE31..A40..SPL;TE3#,51..DLX,SR5197701-197708

main89620-12100iTE3#,51197701-197708

CANADA SPEC.

sub89620-12102

sub90919-03065

main89620-12103iTE3#,51197708-197808

main89620-12104iTE3#,51197808-197908

sub89620-14H92

main89620-14130iKE30..USA197708-197808

main89620-14131iKE30..USA197808-197908

sub89620-14H92

89620ADIODE, IGNITION COIL

main90919-14001iTE3#,51197508-197608

CALIFORNIA SPEC.

main90919-14005iTE37,38,51;TE31..MTM..USA;TE31..A40..DLX197608-197701

CAL.& H.A.

main90919-14007iTE37,38,51;TE31..MTM..USA;TE31..A40..DLX197701-197708

CAL.& H.A.

9011908063

main90119-08063

9017905095

main90179-05095

9017908123

main90179-08123

9046105013

main90461-05013

9165140612

main91651-40612

9165140812

main91651-40812

9165140822

main91651-40822

9165640616

main91656-40616

9165640618

main91656-40618

9165640818

main91656-40818

9338115012

main93381-15012

9412041000

main94120-41000
