Toyota COROLLA — STARTER

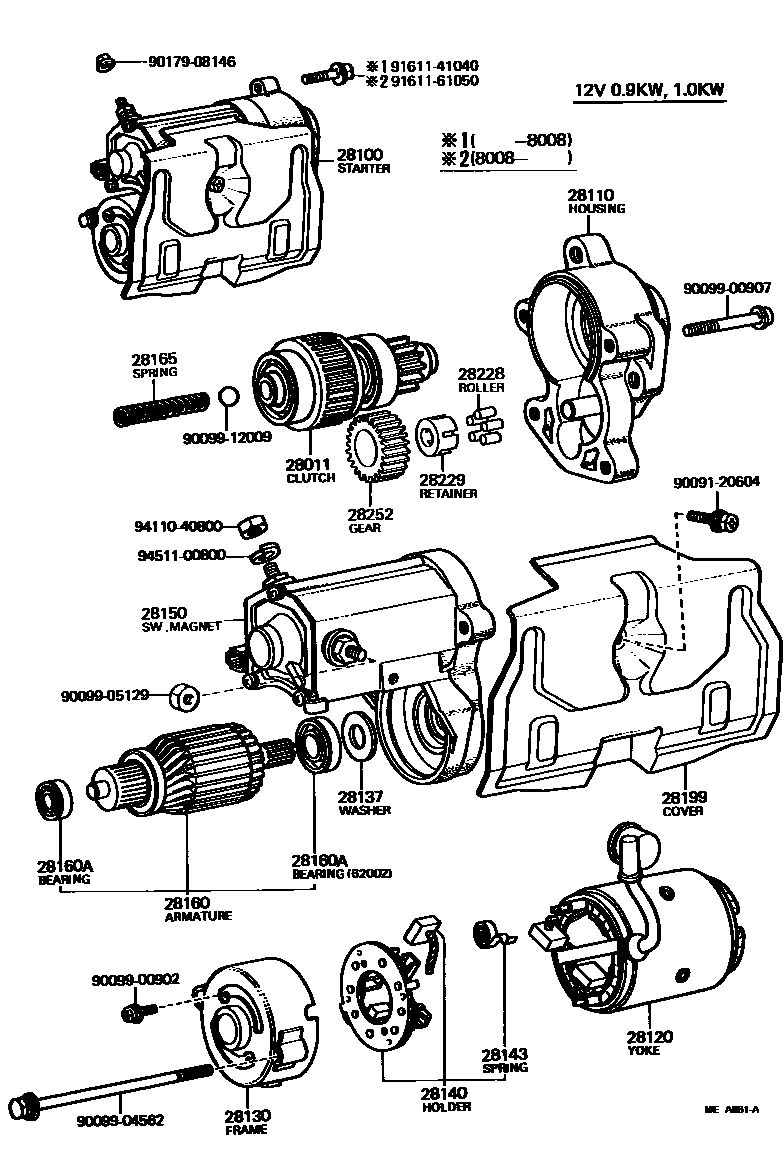

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-26042i197908-198307
12V 0.9KW,1.0KW & 1.4KW
28100STARTER ASSY
main28100-15040i198208-198307
12V 1.0KW,12V 1.0KW
main28100-15070i198208-198307
12V 1.0KW,12V 1.0KW
sub28100-15120
main28100-15090i198208-198307
12V 1.4KW
main28100-26070i197908-198008
12V 1.0KW,12V 0.9KW
main28100-26110i197908-198008
12V 1.4KW
sub28100-26053
main28100-27040i198008-198208
12V 1.4KW
sub28100-27041
main28100-27050i198008-198208
12V 1.0KW,12V 1.0KW
28110HOUSING ASSY, STARTER DRIVE
main28110-15040i198208-198307
12V 1.0KW
main28110-15070i198208-198307
12V 1.0KW
main28110-15090i198208-198307
12V 1.4KW
main28110-26070i197908-198008
12V 0.9KW
main28110-27030i198008-198208
12V 1.0KW
main28110-27040i198008-198208
12V 1.4KW
main28115-26040i197908-198008
12V 1.4KW
28120YOKE ASSY, STARTER
main28120-15090i198208-198307
12V 1.4KW
main28120-26051i197908-198208
12V 1.4KW
main28120-26070i197908-198203
12V 0.9KW,1.0KW
main28120-26071i198203-198208
12V 1.0KW
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-15040i198208-198307
12V 1.0KW
main28130-15090i198208-198307
12V 1.4KW
main28130-26070i197908-198208
12V 0.9KW,1.0KW
28137WASHER, FELT, STARTER
main90099-02202i197908-198208
12V 1.4KW
main90099-02323i197908-198208
12V 0.9KW,1.0KW
28140HOLDER ASSY, STARTER BRUSH
main28140-15090i198208-198307
12V 1.4KW
main28140-26070i198208-198307
12V 1.0KW
main28140-34030i197908-198208
12V 1.4KW
28143SPRING, STARTER BRUSH
main90099-17112×4i197908-198307
12V 0.9KW,1.0KW & 1.4KW
28150SWITCH ASSY, MAGNET STARTER
main28150-15070i198208-198307
12V 1.0KW
main28150-15090i198208-198307
12V 1.4KW
main28150-26070i197908-198008
12V 0.9KW
main28150-26090i197908-198208
12V 1.4KW
main28150-27050i198008-198108
12V 1.0KW
main28150-27051i198108-198208
12V 1.0KW
28160ARMATURE ASSY, STARTER
main28160-15090i198208-198307
12V 1.4KW
sub28160-15091
main28160-26050i197908-198208
12V 1.4KW
main28160-26070i198208-198307
12V 1.0KW
sub28160-26071
28160ABEARING, STARTER ARMATURE
main28253-45020i197908-198208
12V0.9KW,1.0KW & 1.4KW,608Z,RR
main90099-10107i197908-198208
12V 1.4KW,6200Z,FR
main90099-10113i197908-198208
12V 0.9KW,1.0KW,FR,NSK
main90099-10143i198208-198307
12V 1.4KW,OD=30,RR
main90099-10144i198208-198307
12V 1.4KW,OD=26,FR
28165SPRING, STARTER MAGNET SWITCH RETURN
main28165-26040i197908-198307
12V 0.9KW,1.0KW & 1.4KW
28199COVER, STARTER
main28199-13010i198011-198108
12V 1.0KW
main28199-13011i198108-198208
12V 1.0KW
main28199-15090i198208-198307
12V 1.4KW
main28199-26070i197908-198008
12V 0.9KW
main28199-27050i198008-198011
12V 1.0KW
28228ROLLER, STARTER IDLE GEAR CLUTCH
main28228-26040×5i197908-198307
12V 0.9KW,1.0KW & 1.4KW
28229RETAINER, STARTER IDLE GEAR
main28229-26040i197908-198307
12V 0.9KW,1.0KW & 1.4KW
28252GEAR, STARTER IDLE
main28254-45020i197908-198307
12V 0.9KW,1.0KW & 1.4KW
9009120604
main90091-20604
9009900902
main90099-00902
9009900907
main90099-00907
9009904562
main90099-04562
9009905129
main90099-05129
9009912009
main90099-12009
9017908146
main90179-08146
9161141040
main91611-41040
9161161050
main91611-61050
9411040800
main94110-40800
9451100800
main94511-00800

27 parts on this diagram · 4 diagrams in section
