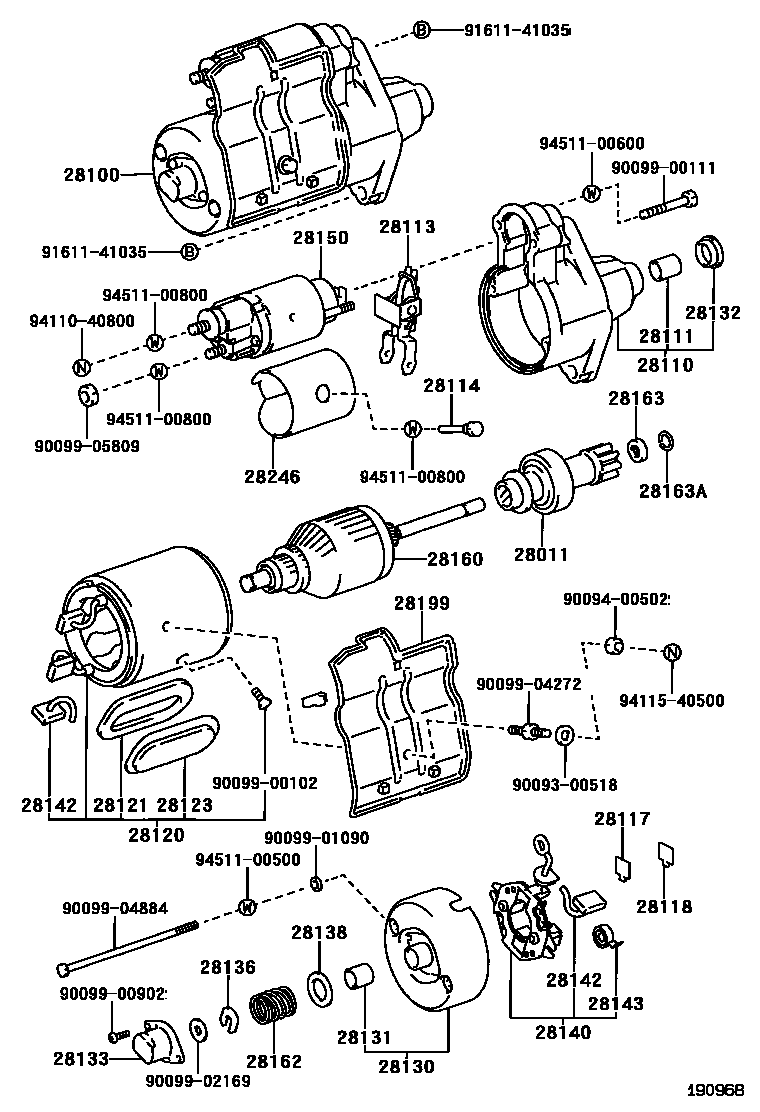

Toyota COROLLA — STARTER

0001 112V 0.8KW 0002 112V 0.9KW,1.0KW,1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-22020i3KC..KE3#197408-197701

main28011-26040i2TC..TE3#197408-197410

main28011-26041i2TC..TE3#,51197410-197908

sub28011-26042

main28011-41011i3KC..KE3#,50..DLX,STD;3KC..KE30..K40..2D..USA197701-197708

CANADA SPEC.

28100STARTER ASSY

main28100-24022i3KC..KE3#197408-197410

12V 0.8KW

sub28100-24110

main28100-24050i3KC..KE3#197410-197512

12V 0.8KW

main28100-24060i3KC..KE30..USA197701-197708

12V 0.8KW

sub28100-13020

main28100-24080i3KC..KE30..USA197608-197701

12V 0.8KW

sub28100-13030

main28100-24090i3KC..KE3#..DLX,STD;3KC..KE30..K40..2D..USA197512-197701

12V 0.8KW,CANADA SPEC.

sub28100-24023

main28100-26040i2TC..TE3#197408-197410

12V 1.0KW

main28100-26041i2TC..TE3#197410-197510

12V 1.0KW

main28100-26042i2TC..TE3#197510-197601

12V 1.0KW

main28100-26043i2TC..TE3#,51197601-197608

12V 1.0KW

main28100-26050i2TC..TE3#197408-197410

12V 1.4KW

main28100-26051i2TC..TE3#197410-197510

12V 1.4KW

main28100-26052i2TC..TE3#197510-197601

12V 1.4KW

main28100-26053i2TC..TE3#,51197601-197608

12V 1.4KW

main28100-26054i2TC..TE31..A40..SPL;2TC..TE3#,51..DLX,SR5,STD197608-197701

12V 1.4KW

main28100-26060i2TC..TE3#197408-197410

12V 1.0KW,CALIFORNIA SPEC.

main28100-26061i2TC..TE3#197410-197510

12V 1.0KW,CALIFORNIA SPEC.

main28100-26062i2TC..TE3#197510-197601

12V 1.0KW,CALIFORNIA SPEC.

main28100-26063i2TC..TE3#,51197601-197608

12V 1.0KW,CALIFORNIA SPEC.

sub28100-27010

main28100-26070i2TC..TE3#,51197808-197908

12V 1.0KW,12V 0.9KW,REDUCTION TYPE

main28100-26090i2TC..TE37,38,51;2TC..TE31..MTM..USA;2TC..TE31..A40..DLX197608-197701

12V 1.0KW,CALIFORNIA SPEC.

main28100-26100i2TC..TE31..A40..SPL;2TC..TE3#,51..DLX,SR5197608-197701

12V 1.0KW

main28100-26110i2TC..TE37,38,51;2TC..TE31..MTM..USA;2TC..TE31..A40..DLX197608-197701

12V 1.4KW,HIGH-ALTITUDE SPEC.

main28100-26120i2TC..TE3#,51197708-197808

12V 0.9KW,REDUCTION TYPE

28110HOUSING ASSY, STARTER DRIVE

main28110-24010i3KC..KE3#,50197408-197908

main28110-26070i2TC..TE3#,51..DLX,SPL,SR5197701-197908

12V 0.9KW

main28115-26040i2TC..TE3#,51197408-197908

28111BUSH(FOR STARTER HOUSING)

main28111-51011i3KC..KE3#,50197408-197908

28113LEVER, STARTER PINION DRIVE

main28113-41011i3KC..KE3#,50197408-197908

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i3KC..KE3#,50197408-197908

28117RUBBER(FOR STARTER YOKE)

main28117-41012i3KC..KE3#197408-197512

main28117-41013i3KC..KE3#,50197512-197908

28118PLATE(FOR STARTER YOKE)

main28118-41012i3KC..KE3#197408-197512

main28118-41013i3KC..KE3#,50197512-197908

28120YOKE ASSY, STARTER

main28120-24030i3KC..KE30..SPL197701-197908

main28120-26040i2TC..TE3#,51197408-197608

12V 1.0KW

main28120-26041i2TC..TE3#,51..DLX,SPL,SR5197608-197708

12V 1.0KW

main28120-26050i2TC..TE3#,51197408-197608

12V 1.4KW

main28120-26051i2TC..TE3#,51197608-197701

12V 1.4KW

main28120-26070i2TC..TE3#,51..DLX,SPL,SR5197701-197908

12V 0.9KW

sub28120-26071

main28120-36040i3KC..KE3#197512-197701

main28120-89101i3KC..KE3#197408-197512

28121COIL, STARTER FIELD

main28121-22011i3KC..KE30..SPL197701-197908

sub28121-22012

main28121-36040i3KC..KE3#,50..DLX,STD;3KC..KE30..K40..2D..USA197701-197708

CANADA SPEC.

main28121-40014i3KC..KE3#197408-197512

28123CORE, STARTER POLE

main28123-10011i3KC..KE30..SPL197701-197908

main28123-40012i3KC..KE3#197408-197701

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i3KC..KE3#,50197408-197908

main28130-26070i2TC..TE3#,51..DLX,SPL,SR5197701-197908

28131BUSH, COMMUTATOR END FRAME

main28131-20010i3KC..KE3#,50197408-197908

STD

main90099-10039i3KC..KE3#,50197408-197908

U/S 0.3

main90099-10040i3KC..KE3#,50197408-197908

U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i3KC..KE3#,50197408-197908

28133COVER, BEARING(FOR END FRAME)

main28132-41011i3KC..KE3#,50197408-197908

28136PLATE, STARTER LOCK

main28136-41011i3KC..KE3#,50197408-197908

28138RUBBER(FOR STARTER BEARING COVER)

main28138-41011i3KC..KE3#,50197408-197908

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i2TC..TE3#,51..DLX,SPL,SR5197701-197908

12V 0.9KW

main28140-34030i2TC..TE3#,51197408-197908

main28140-41012i3KC..KE3#,50197408-197908

sub28140-41013

28142BRUSH, STARTER

main28142-10011i3KC..KE30..SPL197701-197908

main28142-21010i3KC..KE3#197408-197701

28143SPRING, STARTER BRUSH

main28143-40010i3KC..KE3#,50197408-197908

sub28143-40040

main90099-17112i2TC..TE3#,51197408-197908

28150SWITCH ASSY, MAGNET STARTER

main28150-24010i3KC..KE3#197408-197512

main28150-24060i3KC..KE30..USA197701-197708

12V 0.8KW

main28150-24061i3KC..KE30..USA197708-197908

12V 0.8KW

main28150-24070i3KC..KE30,50..CND197708-197709

main28150-24071i3KC..KE30,50..CND197709-197908

12V 0.8KW

main28150-25010i3KC..KE30..USA197608-197701

12V 0.8KW

sub28150-25030

main28150-25032i3KC..KE3#..DLX,STD;3KC..KE30..K40..2D..USA197512-197701

CANADA SPEC.

main28150-26040i2TC..TE3#197408-197510

12V 1.0KW,1.4KW

main28150-26041i2TC..TE3#,51197510-197608

12V 1.0KW,1.4KW

main28150-26060i2TC..TE3#197408-197510

12V 1.0KW,CALIFORNIA SPEC.

main28150-26061i2TC..TE3#,51197510-197608

12V 1.0KW,CALIFORNIA SPEC.

main28150-26062i2TC..TE3#,51..DLX,SPL,SR5197701-197708

12V 1.4KW

main28150-26070i2TC..TE3#,51197808-197908

12V 0.9KW

sub28150-27051

main28150-26100i2TC..TE31..A40..SPL;2TC..TE3#,51..DLX,SR5,STD197608-197701

12V 1.0KW,1.4KW

main28150-26120i2TC..TE3#,51..DLX,SPL,SR5197701-197808

12V 0.9KW

28160ARMATURE ASSY, STARTER

main28160-22011i3KC..KE30..SPL197701-197908

main28160-22021i3KC..KE3#197408-197512

main28160-26040i2TC..TE3#,51..DLX,SPL,SR5197608-197708

12V 1.0KW

main28160-26050i2TC..TE31..A40..2D..SPL;2TC..TE3#,51..DLX,SR5,STD197701-197708

12V 1.4KW

main28160-26070i2TC..TE3#,51..DLX,SPL,SR5197701-197908

12V 0.9KW

sub28160-26071

main28160-40014i3KC..KE3#,50..DLX,STD;3KC..KE30..K40..2D..USA197701-197708

CANADA SPEC.

28162SPRING, STARTER BRAKE

main28162-41011i3KC..KE3#,50197408-197908

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i3KC..KE3#,50197408-197908

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i3KC..KE3#,50197408-197908

28199COVER, STARTER

main28199-24030i3KC..KE30..SPL197701-197908

main28199-26070i2TC..TE3#,51197510-197608

sub28199-13011

28246COVER, MAGNET SWITCH

main28246-25010i3KC..KE3#197512-197701

9009300518

main90093-00518

9009400502

main90094-00502

9009900102

main90099-00102

9009900111

main90099-00111

9009900902

main90099-00902

9009901090

main90099-01090

9009902169

main90099-02169

9009904272

main90099-04272

9009904884

main90099-04884

9009905809

main90099-05809

9161141035

main91611-41035

9411040800

main94110-40800

9411540500

main94115-40500

9451100500

main94511-00500

9451100600

main94511-00600

9451100800

main94511-00800

43 parts on this diagram · 2 diagrams in section
