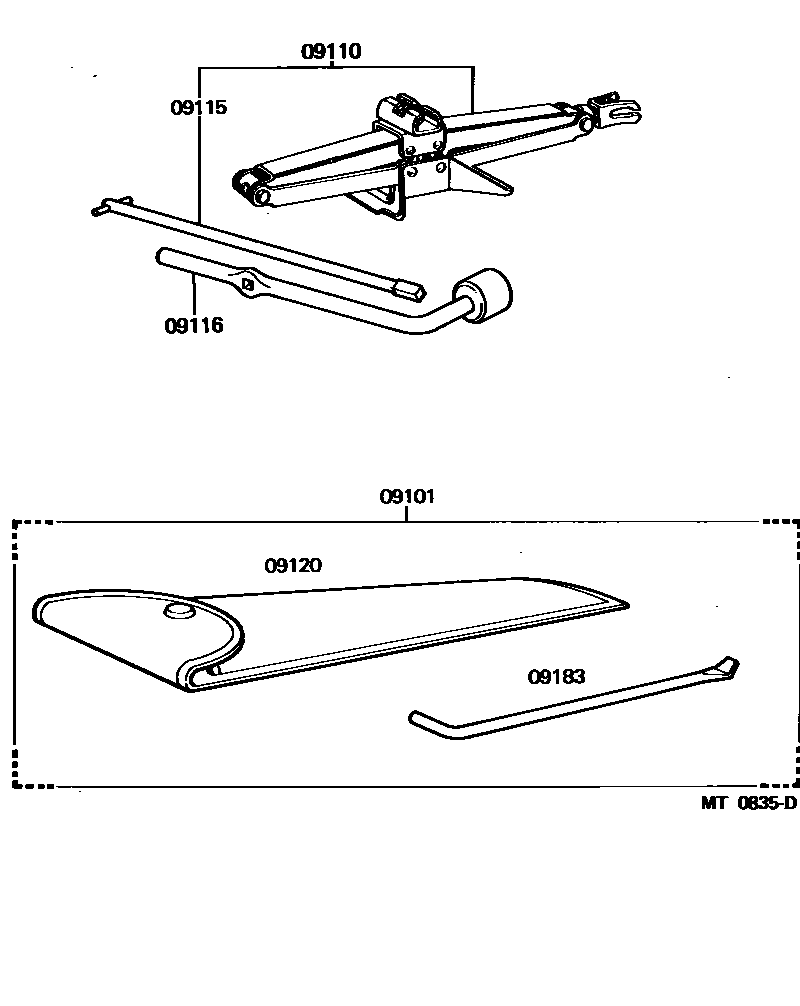

Toyota COROLLA — STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09102-12040iAE71,TE72197908-198307

09110JACK ASSY

main09118-10010iAE71,TE72..CP,HT,LB,SED197908-198307

sub09111-22040

main09118-13011iAE71,TE72..WG197908-198307

09115ROD SUB-ASSY, JACK HANDLE

main09115-13010iAE71,TE72..WG197908-198307

main09115-16010iTE72..CP,HT,LB,SED197908-198205

main09115-16020iAE71,TE72..CP,HT,LB,SED198205-198307

09116LEVER, JACK HANDLE

main09116-16010iAE71,TE72197908-198307

09120BAG, TOOL

main09120-12030iAE71,TE72197908-198307

sub09120-32010

09183WRENCH, WHEEL CAP

main09183-00010iAE71,TE72197908-198307

6 parts on this diagram · 1 diagram in section
