Toyota COROLLA — STANDARD TOOL

0001 1 0002 1

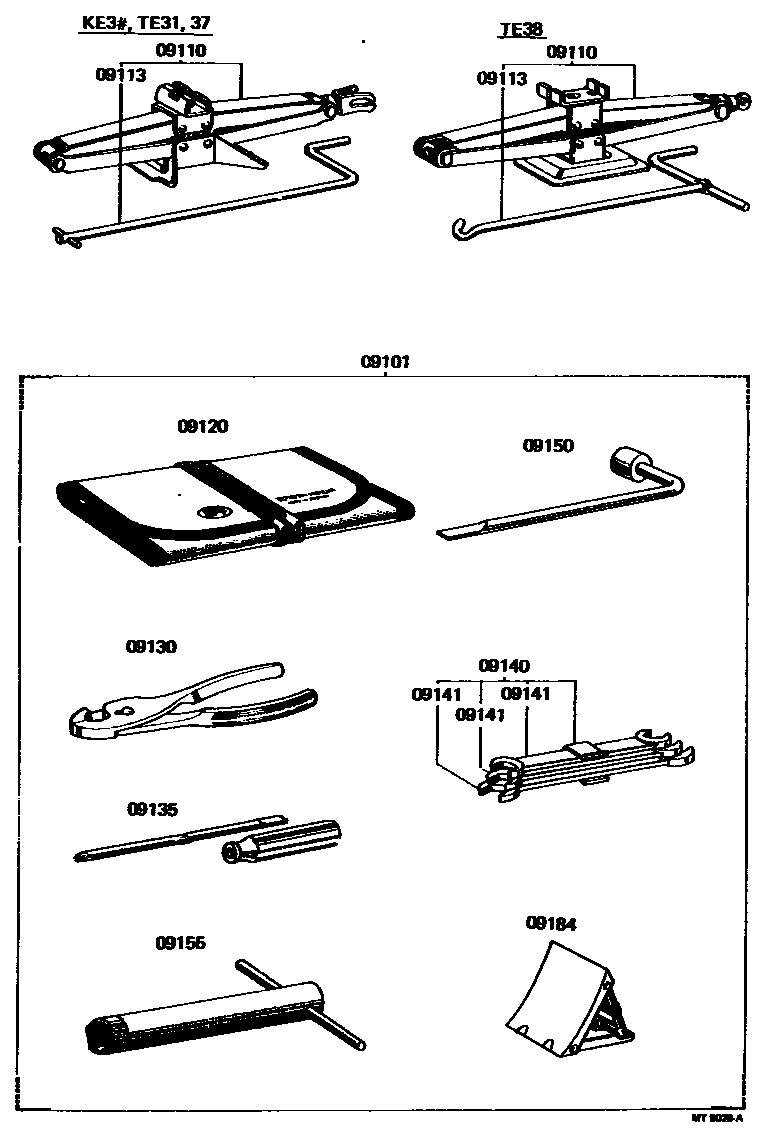

09101TOOL SET, STANDARD W/O JACK

main09101-12012iKE3#197408-197508

sub09101-11014

main09101-12041iTE31,37197408-197508

sub09101-14110

main09101-12050iKE30,50197808-197908

sub09101-14060

main09101-13010iTE38197408-197508

09110JACK ASSY

main09110-12030iKE3#,50,TE31,37,51197408-197808

sub09111-22080

sub09113-32010

main09110-13020iTE38197408-197808

main09118-12010iTE51..LB197808-197908

main09118-13010iTE38197808-197908

sub09118-13011

09113HANDLE, JACK

main09113-11011iKE3#,50,TE31,37,51197408-197808

main09113-13021iTE38197408-197808

09120BAG, TOOL

main09120-12011iKE3#,TE31,37197408-197508

main09120-12030iKE3#,50,TE3#,51197508-197908

sub09120-32010

main09120-13010iTE38197408-197508

sub09120-36070

09130PLIERS

main09130-00010iKE3#,TE3#197408-197508

sub09130-00012

09135DRIVER, SCREW

main09135-00010iKE3#,TE3#197408-197508

sub99915-10700

09140SPANNER SET

main09140-12011iKE3#,TE3#197408-197508

09141SPANNER

main09141-00032iKE3#,TE3#197408-197509

10X12

sub99914-11012

main09141-12011iKE3#,TE3#197408-197508

8X10

sub99914-10810

main09141-12020iKE3#,TE3#197408-197508

14X17

sub99914-11417

09150WRENCH, HUB NUT BOX

main09150-00010iKE30,50197808-197908

09155WRENCH, SPARK PLUG

main09155-12010iKE3#197408-197508

sub09155-44010

main09155-51010iTE3#197408-197508

sub09155-26010

09184STOPPER, WHEEL

main09184-00010iKE3#,TE3#197408-197508

11 parts on this diagram · 2 diagrams in section
