Toyota COROLLA — STANDARD TOOL

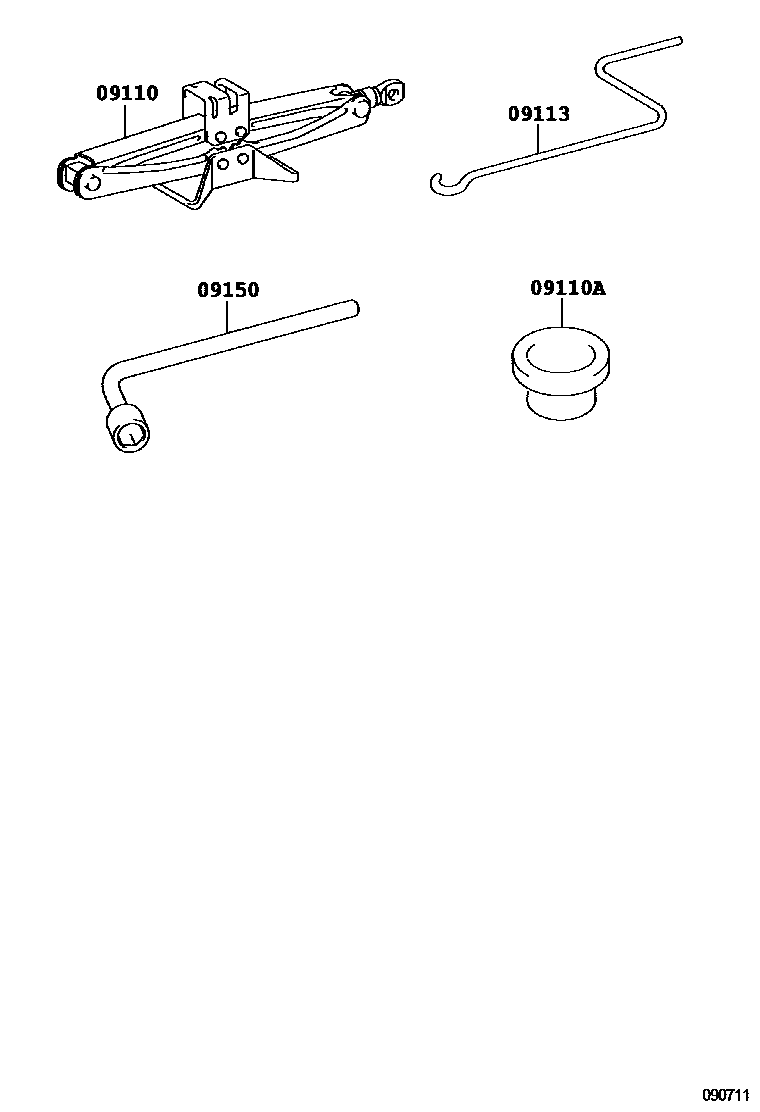

Parts diagram

09110JACK ASSY

main09111-06151i201308-201606

main09111-0W160i201607-201608

09110AJACK SPACER

main58379-02030i201308-201608

09113HANDLE, JACK

main09113-01010i201308-201608

09150WRENCH, HUB NUT BOX

main09150-02020i201308-201608

4 parts on this diagram · 1 diagram in section
