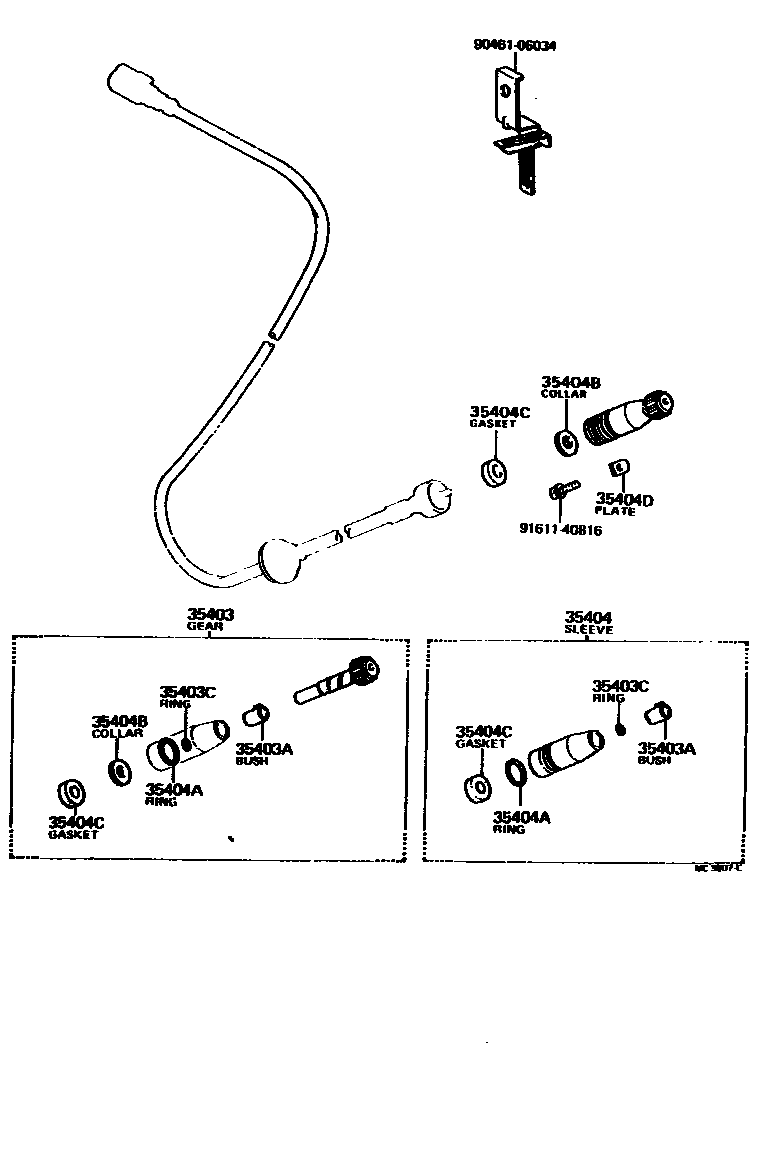

Toyota COROLLA — SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-39015i197408-197908

N=21

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09078i197408-197908

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017i197408-197908

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-39016i197408-197908

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018i197408-197908

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069i197408-197908

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017i197408-197908

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30010i197408-197908

9046106034

main90461-06034

9161140816

main91611-40816

10 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (ATM) for Toyota COROLLA

This section contains 10 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (ATM) system of the Toyota COROLLA. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM), BUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE), RING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM), RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE).
