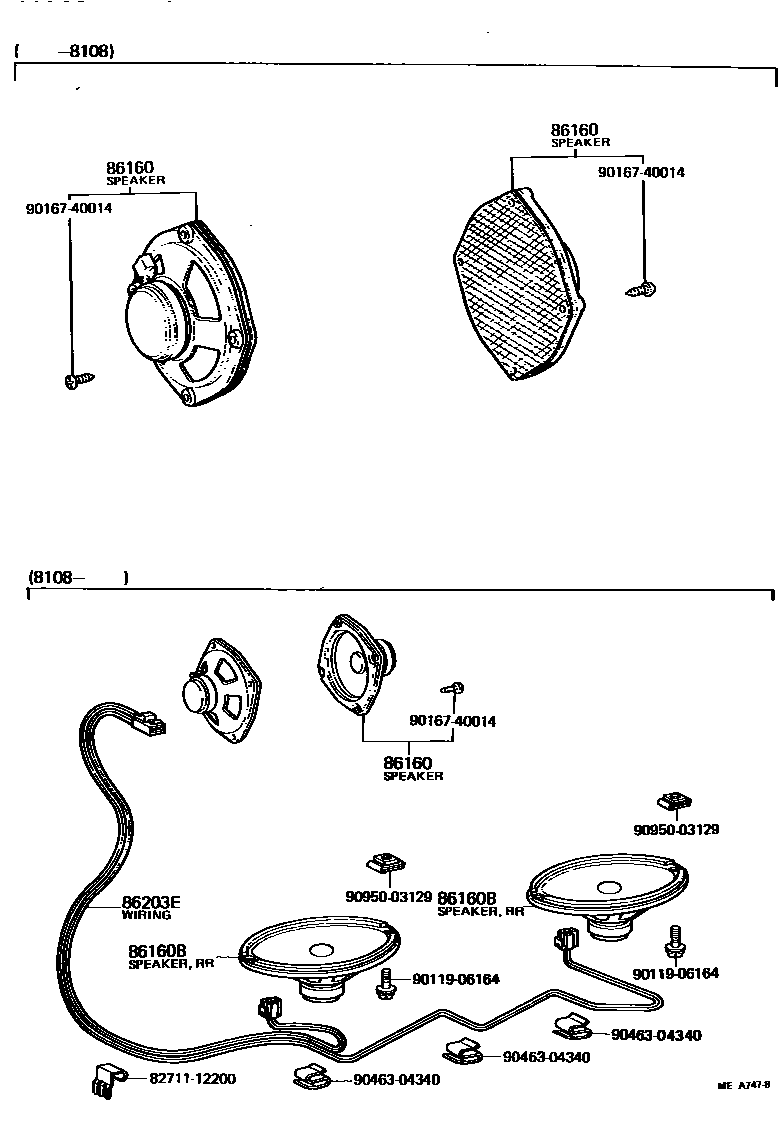

Toyota COROLLA — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-19135×2iTE72197908-198108

main86160-19325iAE71,TE72198108-198307

W/AM

86160BSPEAKER ASSY, REAR

main86160-12090×2iTE72..HT..SR5198108-198208

86203EWIRE, STEREO COMPONENT SPEAKER, NO.1

main86203-12080iTE72..HT..SR5198108-198208

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9011906164

main90119-06164

9016740014

main90167-40014

9046304340

main90463-04340

9095003129

main90950-03129

8 parts on this diagram · 1 diagram in section
