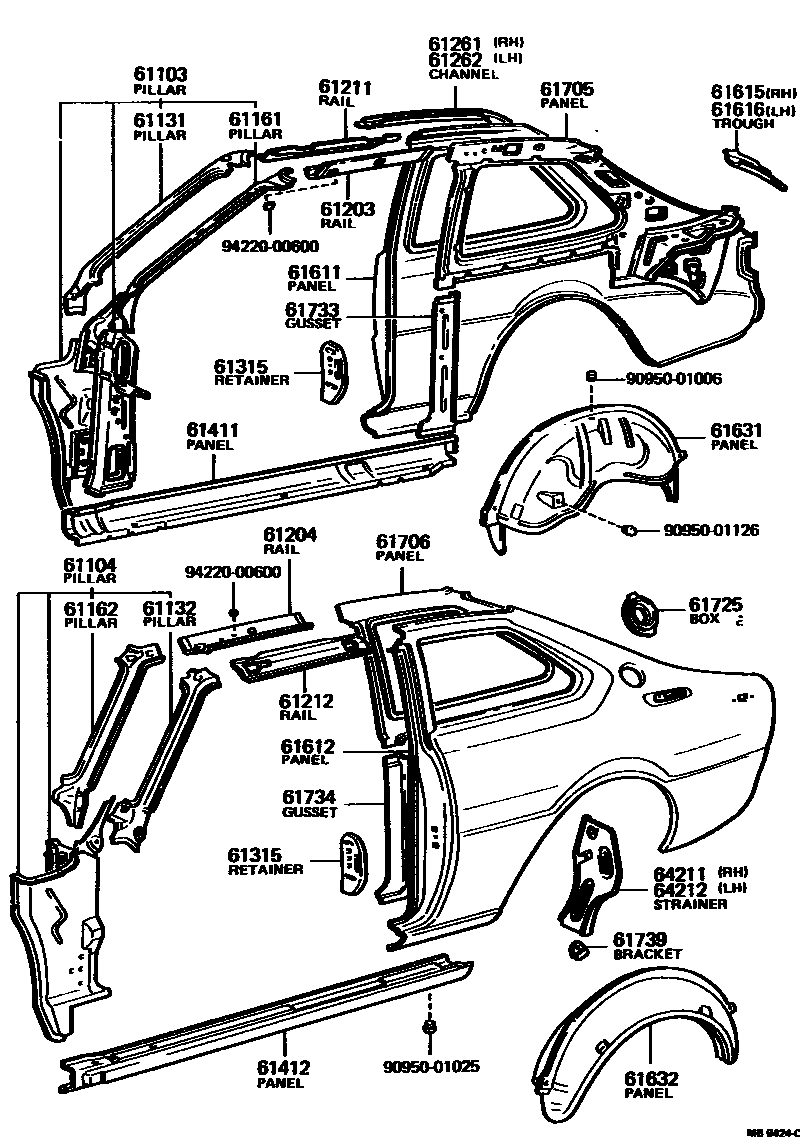

Toyota COROLLA — SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-12020iKE35,TE37197408-197701

main61021-12021iKE35,TE37197701-197808

main61021-12070iKE50,TE51197701-197808

main61021-12110iKE30,TE31,38197808-197908

main61021-12120iTE37197808-197908

main61021-12130iKE50,TE51197808-197908

main61103-12160iTE51197603-197701

main61103-12180iKE30,TE31,38197408-197701

main61103-12181iKE30,TE31,38197701-197808

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-12060iKE35,TE37197408-197701

sub61022-12030

main61022-12061iKE35,TE37197701-197808

main61022-12130iKE30,TE31,38197808-197908

main61022-12160iTE37197808-197908

main61104-12130iTE51197603-197701

main61104-12141iKE50,TE51197701-197808

main61104-12190iKE30,TE31,38197408-197701

sub61104-12090

main61104-12191iKE30,TE31,38197701-197808

main61104-12200iKE50,TE51197808-197908

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12070iKE30,TE31,38197408-197908

main61131-12100iKE35,TE37197408-197908

main61131-12120iKE50,TE51197603-197908

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12070iKE30,TE31,38197408-197908

main61132-12080iKE35,TE37197408-197908

main61132-12100iKE50,TE51197603-197908

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-12050iKE30,TE31,38197408-197908

main61161-12060iKE35,TE37197408-197908

main61161-12070iKE50,TE51197603-197908

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-12050iKE30,TE31,38197408-197908

main61162-12060iKE35,TE37197408-197908

main61162-12070iKE50,TE51197603-197908

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61231-12080iKE30,TE31,38..2D197408-197501

main61231-12090iKE30,TE31..4D197408-197501

main61231-12110iKE30,TE31,38..2D197501-197908

main61231-12120iTE51..CP197603-197908

main61231-12140iKE30,TE31..4D197501-197509

main61231-12141iKE30,TE31..4D197509-197908

main61231-12160iKE50,TE51..LB197603-197908

main61231-13020iTE38..USA197408-197505

main61231-13021iTE38..4D197505-197908

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61232-12080iKE30,TE31,38..2D197408-197908

main61232-12090iKE30,TE31..4D197408-197509

main61232-12091iKE30,TE31..4D197509-197908

main61232-12110iKE50,TE51..LB197604-197908

main61232-12120iTE51..CP197603-197908

main61232-13020iTE38..USA197408-197505

main61232-13021iTE38..4D197505-197908

61211RAIL, ROOF SIDE, OUTER RH

main61201-12010iKE35,TE37197408-197908

main61211-12070iKE30,TE31..4D197408-197908

main61211-12080iKE30,TE31,38..2D197408-197908

main61211-12100iTE51..CP197601-197908

main61211-12120iKE50,TE51..LB197603-197908

main61211-13020iTE38..USA197408-197505

main61211-13021iTE38..4D197505-197908

61212RAIL, ROOF SIDE, OUTER LH

main61202-12010iKE35,TE37197408-197908

main61212-12070iKE30,TE31..4D197408-197908

main61212-12080iKE30,TE31,38..2D197408-197908

main61212-12100iTE51..CP197603-197908

main61212-12120iKE50,TE51..LB197603-197908

main61212-13020iTE38..USA197408-197505

main61212-13021iTE38..4D197505-197908

61261CHANNEL, ROOF DRIP, RH

main61261-12080iKE30,TE31..2D197408-197908

main61261-12090iTE51..CP197603-197908

61262CHANNEL, ROOF DRIP, LH

main61262-12080iKE30,TE31..2D197408-197908

main61262-12090iTE51..CP197603-197908

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-12030×2iKE50,TE51197603-197703

main61309-20010×2iKE30,TE31,38197408-197908

61411PANEL, ROCKER, OUTER RH

main61411-12130iKE3#,TE31,37..2D197608-197701

main61411-12131iKE3#,TE31,37..2D197701-197908

main61411-12140iKE30,TE31,38..4D197608-197908

main61411-12150iKE50,TE51197608-197908

main61411-12901iKE3#,TE3#..2D197408-197608

main61411-12902iKE30,TE31,38..4D197408-197608

main61411-12903iTE51197603-197608

61412PANEL, ROCKER, OUTER LH

main61412-12130iKE3#,TE31,37..2D197608-197701

main61412-12131iKE3#,TE31,37..2D197701-197908

main61412-12140iKE30,TE31,38..4D197608-197908

main61412-12150iKE50,TE51197608-197908

main61412-12901iKE3#,TE3#..2D197408-197608

main61412-12902iKE30,TE31,38..4D197408-197608

main61412-12903iTE51197603-197608

61611PANEL, QUARTER, RH

main61601-12250iKE50,TE51..LB197603-197908

main61601-13050iTE38..2D197408-197511

sub62951-19177

sub62951-19195

main61601-13051iTE38..2D197511-197608

main61601-13902iTE38..USA197408-197511

sub62951-19177

sub62951-19195

main61601-13903iTE38..4D197511-197908

main61611-12130iTE37..USA197408-197612

sub62931-12110

sub62957-12010

sub90430-04254

sub90950-01065

main61611-12131iTE37..SR5197612-197908

main61611-12140iKE35,TE37..DLX197408-197612

sub62931-12110

sub62957-12010

sub90430-04254

sub90950-01065

main61611-12141iKE35,TE37..DLX197612-197708

main61611-12150iKE30,TE31..4D197408-197908

main61611-12170iKE30,TE31..2D197408-197908

main61611-12250iTE51..CP197603-197908

61612PANEL, QUARTER, LH

main61602-12230iKE50,TE51..LB197603-197708

main61602-12360iTE51..LB..SR5197708-197908

main61602-13050iTE38..2D197408-197608

main61602-13902iTE38..4D197408-197908

main61612-12130iTE37..USA197408-197612

sub62932-12110

sub62957-12010

sub90430-04254

sub90950-01065

main61612-12131iTE37..SR5197612-197908

main61612-12140iKE35,TE37..DLX197408-197612

sub61612-12H01

main61612-12141iKE35,TE37..DLX197612-197708

main61612-12150iKE30,TE31..4D197408-197908

main61612-12170iKE30,TE31..2D..(DLX,STD)197408-197908

main61612-12260iTE51..CP197603-197908

main61612-12270iKE30,TE31..2D..SPL197608-197908

61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12010iKE30,TE31197408-197908

main61621-12020iKE35,TE37197408-197908

main61621-12030iTE51..CP197603-197908

61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12010iKE30,TE31197408-197908

main61622-12020iKE35,TE37197408-197908

main61622-12030iTE51..CP197603-197908

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-12080iTE51..CP197603-197908

main61603-12090iTE37..USA197408-197701

main61603-12110iKE50,TE51..LB197603-197908

main61603-12901iKE3#,TE31,37..DLX,STD197701-197908

main61603-12902iTE37..SR5197701-197908

main61603-13040iTE38197408-197908

main61631-12900iKE3#,TE31,37..DLX,STD197408-197701

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-12080iTE51..CP197603-197908

main61604-12090iTE37..USA197408-197701

main61604-12110iKE50,TE51..LB197603-197908

main61604-12901iKE3#,TE31,37..DLX,STD197701-197908

main61604-12902iTE37..SR5197701-197908

main61604-13040iTE38197408-197908

main61632-12900iKE3#,TE31,37..DLX,STD197408-197701

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-12090iTE51..CP197603-197607

main61705-12140iKE30,TE31..4D197408-197908

sub61705-12280

main61705-12923iKE50,TE51..LB197603-197908

main61705-12925iKE30,TE31..2D197408-197501

main61705-12927iKE30,TE31..2D197501-197908

main61705-12928iTE51..CP197607-197908

main61705-13120iTE38..2D197408-197501

sub61705-13121

sub62951-19156

sub62951-19167

sub62951-19177

sub62951-19185

sub62951-19195

main61705-13130iTE38..USA197408-197501

sub61705-13131

sub62951-19156

sub62951-19167

sub62951-19177

sub62951-19185

sub62951-19195

main61705-13151iTE38..2D197501-197511

sub62951-19156

sub62951-19177

sub62951-19195

main61705-13152iTE38..2D197511-197608

sub61705-13300

main61705-13160iTE38..USA197501-197511

sub62951-19156

sub62951-19177

sub62951-19195

main61705-13161iTE38..4D197511-197908

sub61705-13290

main61731-12130iKE35,TE37197408-197908

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-12090iTE51..CP197603-197607

main61706-12140iKE30,TE31..4D197408-197908

sub61706-12290

main61706-12923iKE50,TE51..LB197603-197908

main61706-12925iKE30,TE31..2D197408-197501

main61706-12927iKE30,TE31..2D197501-197908

main61706-12928iTE51..CP197607-197908

main61706-13120iTE38..2D197408-197501

sub61706-13350

main61706-13130iTE38..USA197408-197501

sub61706-13340

main61706-13150iTE38..2D197408-197501

FOR REAR WINDOW WIPER

sub61706-13350

main61706-13160iTE38..USA197408-197501

FOR REAR WINDOW WIPER

sub61706-13340

main61706-13171iTE38..2D197501-197508

main61706-13180iTE38..USA197501-197508

main61706-13191iTE38..2D197501-197602

FOR REAR WINDOW WIPER

main61706-13200iTE38..4D197501-197908

FOR REAR WINDOW WIPER

sub61706-13340

main61706-13220iTE38..2D197508-197608

sub61706-13350

main61706-13230iTE38..4D197508-197908

sub61706-13340

main61732-12130iKE35,TE37197408-197908

61725BOX, FUEL INLET

main61725-12060iKE30,TE31197408-197608

main61725-12070iKE35,TE37197408-197608

main61725-12080iTE51..CP197603-197608

main61725-12110iTE51..CP197608-197908

main61725-12120iKE30,TE31..2D197608-197908

main61725-12130iKE30,TE31..4D197608-197908

main61725-12140iKE35,TE37197608-197908

61733GUSSET, QUARTER, INNER RH

main61077-12010iKE35,TE37197408-197908

main61733-12040iKE30,TE31..2D197408-197908

main61733-12050iKE50,TE51197603-197908

61734GUSSET, QUARTER, INNER LH

main61078-12010iKE35,TE37197408-197908

main61734-12040iKE30,TE31..2D197408-197908

main61734-12060iKE50,TE51197603-197908

61739BRACKET, REAR BODY INSIDE TRIM

main61647-14010×4iKE3#,TE31,37..2D197408-197908

main61753-13010×4iTE38..2D197408-197608

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-12010iKE3#,TE31,37,51..CP,HT,SED197408-197908

9095001006

main90950-01006

9095001025

main90950-01025

9095001126

main90950-01126

9422000600

main94220-00600

33 parts on this diagram · 7 diagrams in section
