Toyota COROLLA — ROOF SIDE VENTILATOR

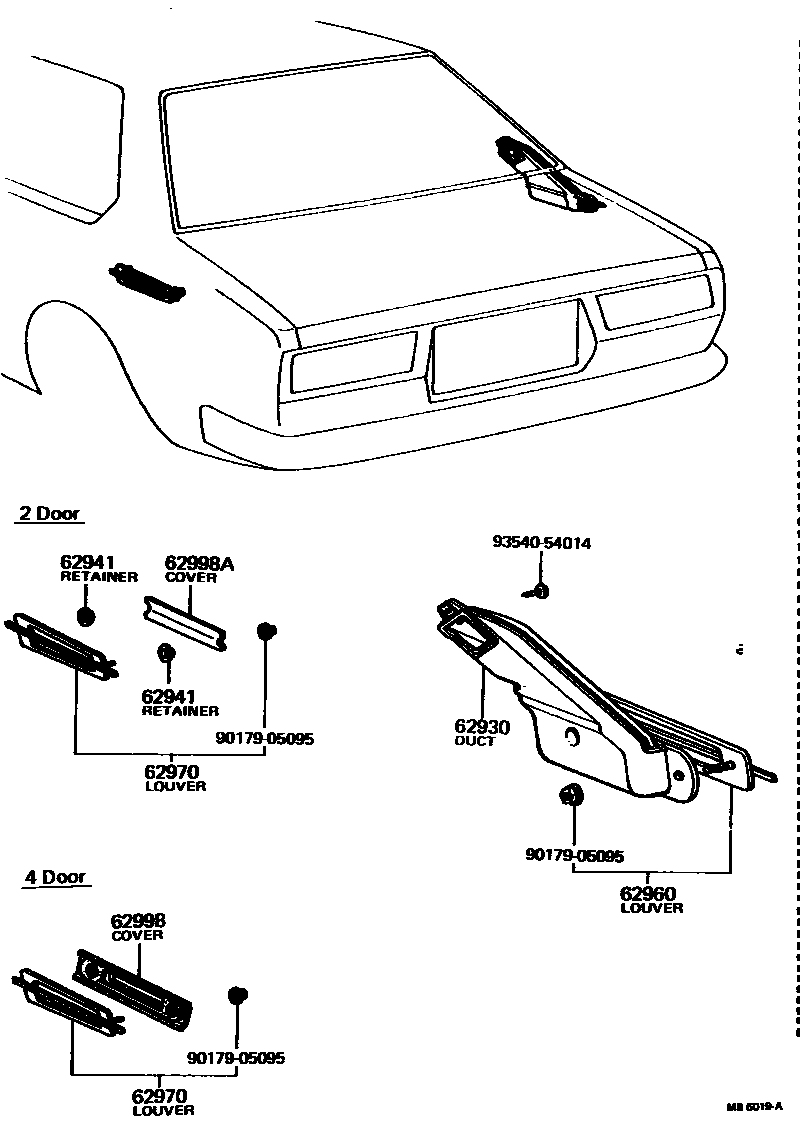

Parts diagram

62930DUCT ASSY, ROOF SIDE VENT, RH

main62930-12010i197408-197908

main62930-12020i197603-197908

main62930-12030i197408-197612

main62930-12031i197612-197908

main62931-13030i197408-197511

62941RETAINER, ROOF SIDE VENT DUCT, RH

main62941-12070×2i197608-197908

62960LOUVER ASSY, ROOF SIDE VENT, RH

main62905-19025i197408-197503

main62905-19026i197503-197512

main62905-19027i197512-197808

main62905-19065-03i197408-197503

SILVER M.,GRAY

main62905-19065-08i197408-197503

WHITE,IVORY

main62905-19065-13i197408-197503

DARK-GRAY M.,GRAY

main62905-19066-03i197503-197612

SILVER M.,GRAY

main62905-19066-08i197503-197612

WHITE,IVORY

main62905-19066-13i197503-197612

DARK-GRAY M.,GRAY

main62905-19067-03i197612-197701

SILVER M.,GRAY

main62905-19067-08i197612-197701

WHITE,IVORY

main62905-19067-13i197612-197701

DARK-GRAY M.,GRAY

main62905-19067-18i197701-197808

WHITE,IVORY

main62905-19067-23i197701-197808

SILVER M.,GRAY

main62905-19067-33i197701-197908

DARK-GRAY M.,GRAY

main62905-19075i197608-197808

main62905-19145i197808-197908

main62905-19195i197808-197908

main62951-19135i197603-197701

main62951-19136i197701-197808

main62951-19175i197408-197503

main62951-19176i197503-197511

main62951-19177i197511-197908

main62951-19205i197603-197808

main62951-19206i197808-197908

main62951-19215i197603-197808

main62951-19216i197808-197908

main62951-19255i197808-197908

62970LOUVER ASSY, ROOF SIDE VENT, LH

main62906-19025i197408-197503

main62906-19026i197503-197512

main62906-19027i197512-197808

main62906-19065-03i197408-197503

SILVER M.,GRAY

main62906-19065-08i197408-197503

WHITE,IVORY

main62906-19065-13i197408-197503

DARK-GRAY M.,GRAY

main62906-19066-03i197503-197612

SILVER M.,GRAY

main62906-19066-08i197503-197612

WHITE,IVORY

main62906-19066-13i197503-197612

DARK-GRAY M.,GRAY

main62906-19067-03i197612-197701

SILVER M.,GRAY

main62906-19067-08i197612-197701

WHITE,IVORY

main62906-19067-13i197612-197701

DARK-GRAY M.,GRAY

main62906-19067-18i197701-197808

WHITE,IVORY

main62906-19067-23i197701-197808

SILVER M.,GRAY

main62906-19067-33i197701-197908

DARK-GRAY M.,GRAY

main62906-19075i197608-197808

main62906-19125i197808-197908

main62906-19175i197808-197908

main62951-19135i197603-197701

main62951-19136i197701-197808

main62951-19255i197808-197908

main62952-19145i197408-197503

main62952-19146i197503-197908

main62952-19155i197603-197808

main62952-19156i197808-197908

main62952-19165i197603-197808

main62952-19166i197808-197908

62998COVER SUB-ASSY, QUARTER VENT HOLE

main62908-12010i197608-197908

62998ACOVER, QUARTER VENT HOLE

main62998-12020i197608-197808

main62998-12021i197808-197908

9017905095

main90179-05095

9354054014

main93540-54014

8 parts on this diagram · 4 diagrams in section

ROOF SIDE VENTILATOR for Toyota COROLLA

This section contains 18 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota COROLLA. Key components include: DUCT ASSY, ROOF SIDE VENT, RH, DUCT ASSY, ROOF SIDE VENT, LH, RETAINER, ROOF SIDE VENT DUCT, RH, LOUVER ASSY, ROOF SIDE VENT, RH, PAD, NO.1(FOR ROOF SIDE VENT LOUVER).
