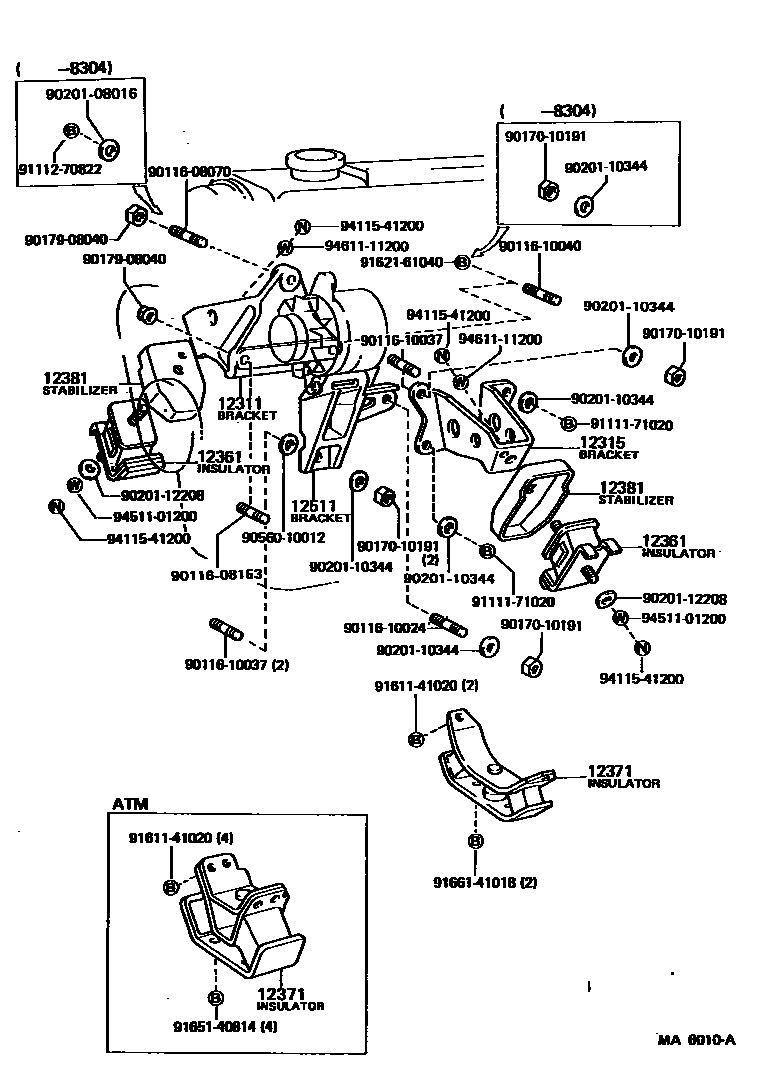

Toyota COROLLA — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-15021i4AC..AE71198208-198307

sub12311-15090

main12311-25060i3TC..TE72197908-197911

main12311-25061i3TC..TE72197911-198008

main12311-26060i3TC..TE72198008-198208

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12312-25050i3TC..TE72197908-198001

main12312-25060i3TC..TE72198001-198208

main12315-15020i4AC..AE71198208-198307

sub12315-15060

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-15040×2i4AC..AE71198208-198307

main12361-18010×2i3TC..TE72197908-198208

MARUYASU OR TOKAIGOMU

main12361-18020×2i3TC..TE72197908-198208

TOYOGOMU

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-16010i4AC..AE71..MTM198208-198307

main12371-16020i4AC..AE71..ATM198208-198307

main12371-33010i3TC..TE72..MTM197908-198208

main12371-34030i3TC..TE72..ATM197908-198208

12381STABILIZER, ENGINE MOUNTING

main12381-15010×2i4AC..AE71198208-198301

main12381-15040×2i4AC..AE71198301-198307

main12381-18010i3TC..TE72197908-198208

LH,MARUYASU OR TOKAIGOMU

main12381-18020i3TC..TE72197908-198208

LH,TOYOGOMU

main12381-18030i3TC..TE72197908-198208

RH,MARUYASU OR TOKAIGOMU

main12381-18040i3TC..TE72197908-198208

RH,TOYOGOMU

12511BRACKET, ALTERNATOR, NO.1

main12511-15011i4AC..AE71198208-198307

main12511-25010i3TC..TE72197908-198208

9011608070

main90116-08070

9011608153

main90116-08153

9011610024

main90116-10024

9011610037

main90116-10037

9011610040

main90116-10040

9017010191

main90170-10191

9017908040

main90179-08040

9020108016

main90201-08016

9020110344

main90201-10344

9020112208

main90201-12208

9056010012

main90560-10012

9111171020

main91111-71020

9111270822

main91112-70822

9161141020

main91611-41020

9162161040

main91621-61040

9165140814

main91651-40814

9166141018

main91661-41018

9411541200

main94115-41200

9451101200

main94511-01200

9461111200

main94611-11200

26 parts on this diagram · 2 diagrams in section
