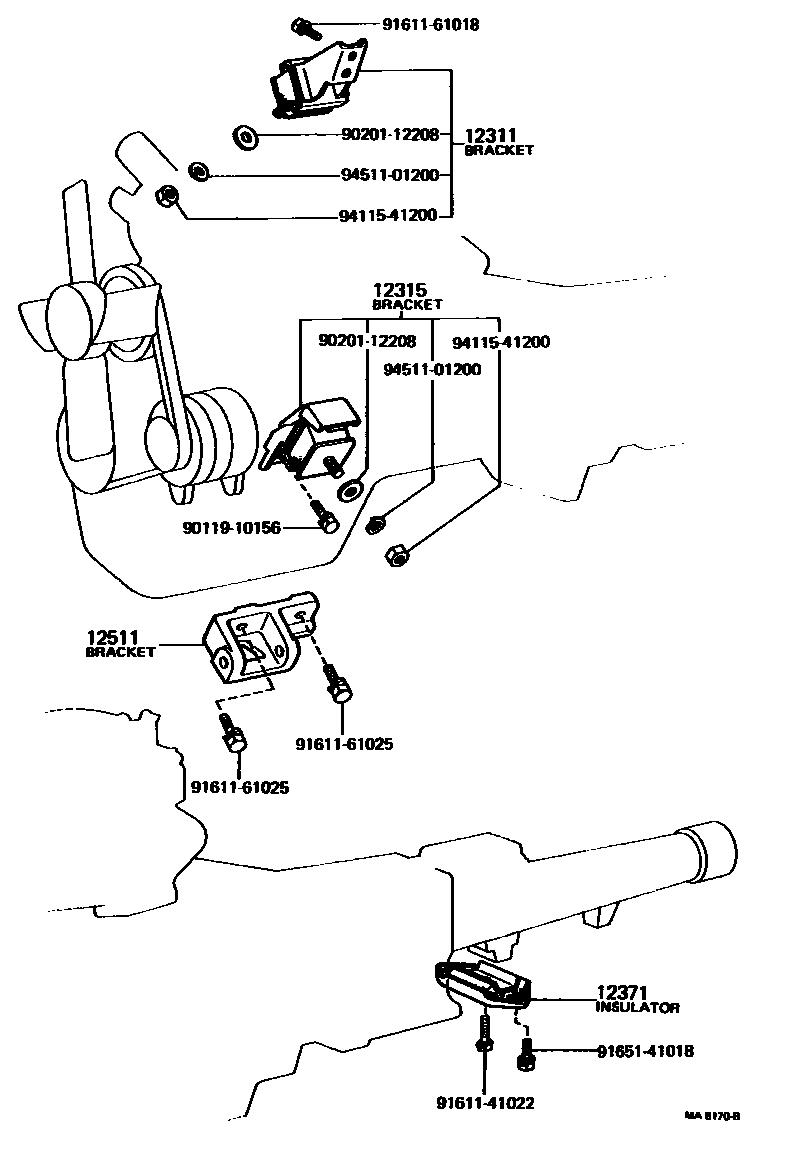

Toyota COROLLA — MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-29045i3KC..KE3#,50197408-197805

main12301-29046i3KC..KE30,50197805-197908

main12311-25011i2TC..TE3#,51197408-197709

main12311-25012i2TC..TE3#,51197709-197908

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-19015i3KC..KE3#,50197705-197908

sub12302-13011

sub90201-12208

sub94115-41200

sub94511-01200

main12302-29025i3KC..KE3#,50197408-197705

main12315-25011i2TC..TE3#,51197408-197908

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-24010i3KC..KE3#,50197408-197908

main12371-33010i2TC..TE3#,51..MTM197408-197908

main12371-34020i2TC..TE3#,51..A40197408-197612

main12371-34030i2TC..TE3#,51..A40197612-197908

12511BRACKET, ALTERNATOR, NO.1

main12511-24011i3KC..KE3#,50197408-197908

main12511-25010i2TC..TE3#,51197408-197908

9011910156

main90119-10156

9020112208

main90201-12208

9161141022

main91611-41022

9161161018

main91611-61018

9161161025

main91611-61025

9165141018

main91651-41018

9411541200

main94115-41200

9451101200

main94511-01200

12 parts on this diagram · 2 diagrams in section
