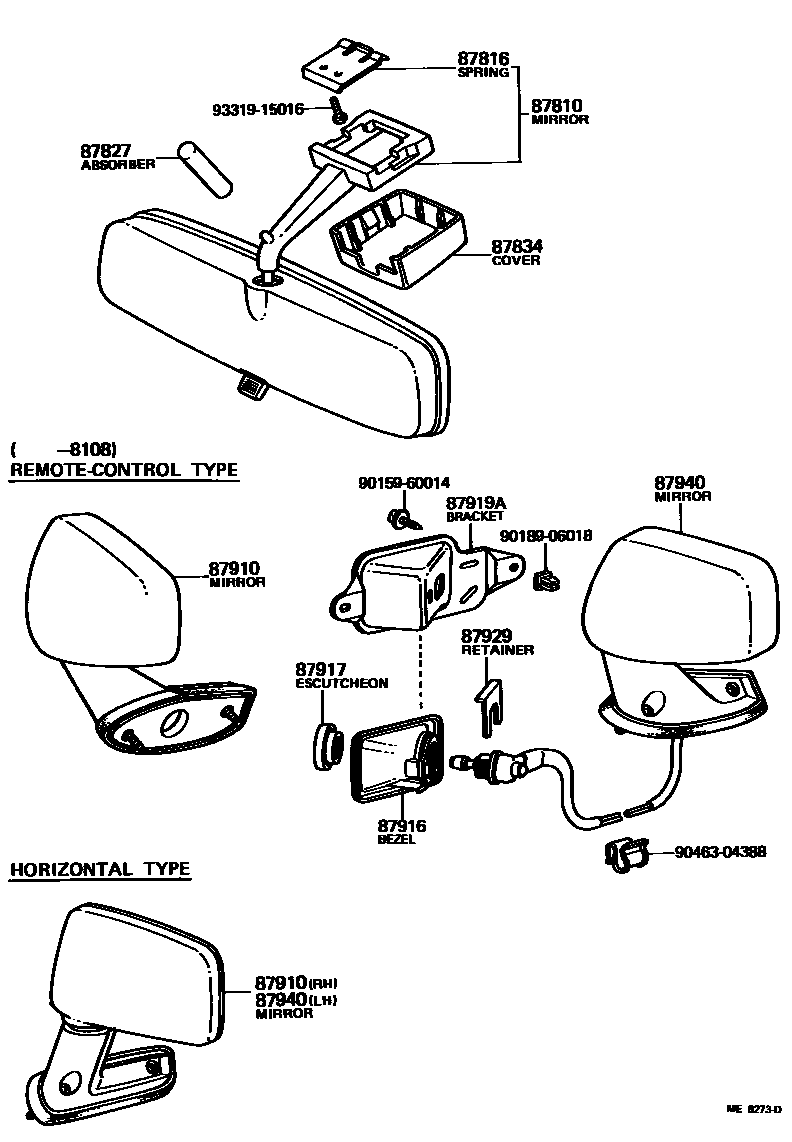

Toyota COROLLA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87816SPRING, INNER REAR VIEW MIRROR
87827ABSORBER, INNER REAR VIEW MIRROR
L=35,W/SUN ROOF
L=30
L=27,W/NON GLARE TYPE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,IVORY
IVORY,IVORY
IVORY,IVORY
87910MIRROR ASSY, OUTER REAR VIEW, RH
HORIZONTAL TYPE
REMOTE CONTROL TYPE
87916BEZEL, OUTER MIRROR
BLACK,BLACK
BLUE,BLUE
DARK BROWN,BROWN
87917ESCUTCHEON
87919ABRACKET, OUTER MIRROR
87929RETAINER, OUTER REAR VIEW MIRROR, LH
87940MIRROR ASSY, OUTER REAR VIEW, LH
REMOTE CONTROL TYPE
HORIZONTAL TYPE
HORIZONTAL TYPE
REMOTE CONTROL TYPE
9015960014
main90159-60014
9018906018
main90189-06018
9046304388
main90463-04388
9331915016
main93319-15016
14 parts on this diagram · 2 diagrams in section
