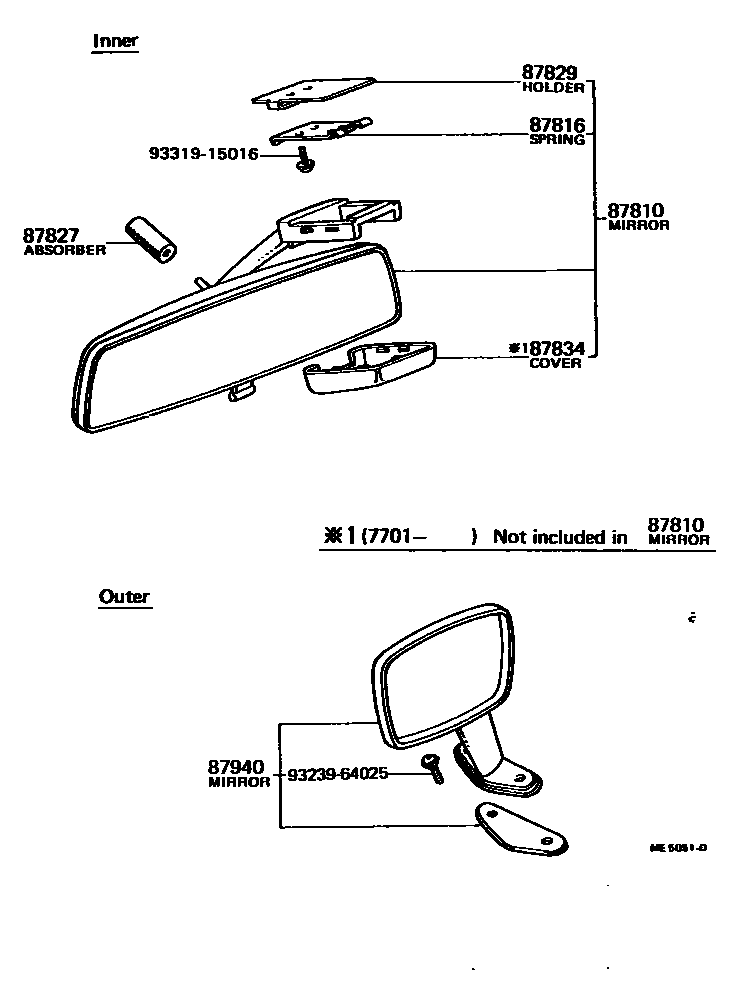

Toyota COROLLA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12050-01iKE3#,TE3#197408-197508

BLACK,BLACK

main87810-12050-03iKE3#,TE3#..DLX,STD197408-197508

GRAY,GRAY

main87810-12050-11iTE51..LB197603-197701

BLACK,COVER=GRAY,BLACK

main87810-12050-13iKE3#,TE31,37..DLX,SPL,STD197508-197701

GRAY,COVER=BEIGE,GRAY

main87810-12050-21iKE3#,TE31,37..DLX,SPL,STD197508-197701

BLACK,COVER=BEIGE,BLACK

main87810-12051iKE3#,50,TE31,37,51..HT,LB,SED197701-197708

main87810-12061iKE50,TE31,37,51..(HT,LB,SED)..(DLX,SPL,SR5)197708-197908

NON GLARE

main87810-12090-03iTE51..CP..DLX197603-197701

GRAY,COVER=GRAY,GRAY

main87810-12090-11iTE51..CP197603-197701

BLACK,COVER=GRAY,BLACK

main87810-12090-13iTE51..CP..DLX197603-197701

GRAY,COVER=BEIGE,GRAY

main87810-12090-21iTE51..CP197603-197701

BLACK,COVER=BEIGE,BLACK

main87810-12091iTE51..CP197701-197708

main87810-12101iTE51..CP197708-197908

NON GLARE

main87810-13010-01iTE38197508-197701

BLACK,COVER=GRAY,BLACK

main87810-13010-03iTE38197508-197701

GRAY,COVER=GRAY,GRAY

main87810-13010-11iTE38197508-197701

BLACK,COVER=BEIGE,BLACK

main87810-13010-13iTE38197508-197701

GRAY,COVER=BEIGE,GRAY

main87810-13011iTE38197701-197708

main87810-13021iTE38197708-197908

NON GLARE

87816SPRING, INNER REAR VIEW MIRROR

main74372-30020iKE3#,50,TE3#,51197408-197908

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-12010iKE50,TE3#,51..(DLX,SR5)..CND197808-197908

L=35

main87828-14020iTE51..CP197808-197908

L=40

87829HOLDER, INNER REAR VIEW MIRROR STAY

main87829-12030iTE51..CP197603-197908

main87829-12040iKE3#,50,TE31,37,51..HT,LB,SED197508-197908

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12010-01iKE3#,TE3#197408-197508

BLACK,BLACK

main87834-12010-03iTE51..LB197603-197701

GRAY,GRAY

main87834-12010-04iKE3#,50,TE3#,51..HT,LB,SED,WG197701-197908

BLUE,BLUE

main87834-12010-05iTE51..LB197603-197701

BEIGE,BEIGE

main87834-12010-13iKE3#,50,TE3#,51..HT,LB,SED,WG197701-197908

GRAY,GRAY

main87834-12010-15iKE3#,50,TE3#,51..HT,LB,SED,WG197701-197908

BEIGE,BEIGE

main87834-12020-03iTE51..CP197603-197701

GRAY,GRAY

main87834-12020-04iTE51..CP197701-197908

BLUE,BLUE

main87834-12020-05iTE51..CP197603-197701

BEIGE,BEIGE

main87834-12020-13iTE51..CP197701-197908

GRAY,GRAY

main87834-12020-15iTE51..CP197701-197908

BEIGE,BEIGE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-12110iKE50,TE51197603-197708

sub87940-12111

main87940-12120iKE30,TE31..SPL197608-197708

sub87940-12121

main87940-12140iKE3#,TE3#..DLX,SR5,STD197408-197708

sub87940-12141

main87940-12210iTE51..SR5197708-197908

main87940-12220iKE30,TE3#197708-197908

main87940-12230iKE50,TE51..DLX197708-197908

9323964025

main93239-64025

9331915016

main93319-15016

8 parts on this diagram · 1 diagram in section
