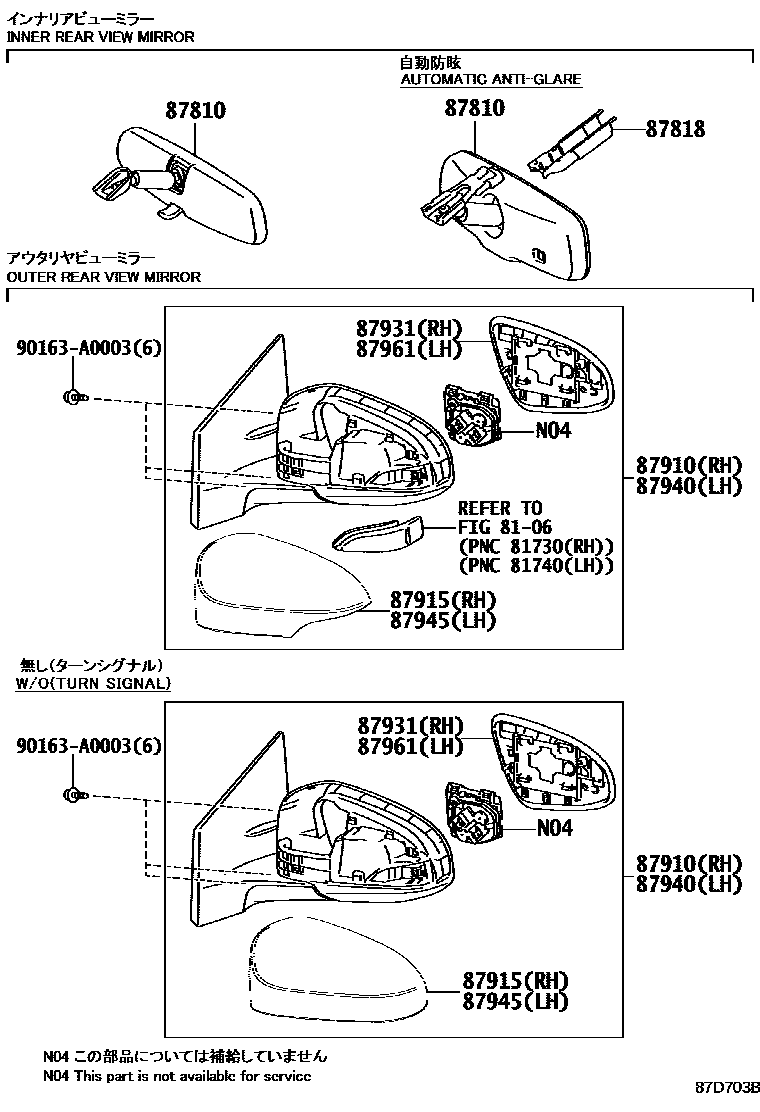

Toyota COROLLA — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS
87818COVER, INNER RR VIEW MIRROR
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1F9
GRAY ME.,1G2
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
GREEN M.M.,6W3
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1F9
GRAY ME.,1G2
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
GREEN M.M.,6W3
DK.BLUE M.M.,8W7
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,BLACKISH AGEHA GF.,221
sub87940-02940
NO PAINT REQ.,AVANT-GARDE BRONZE ME.,4V8
sub87940-02940
NO PAINT REQ.,BLACKISH AGEHA GF.,221
sub87940-02941
NO PAINT REQ.,BLACKISH AGEHA GF.,221
sub87940-02944
NO PAINT REQ.,BLACKISH AGEHA GF.,221
sub87940-02945
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1F9
GRAY ME.,1G2
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
GREEN M.M.,6W3
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1F9
GRAY ME.,1G2
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
GREEN M.M.,6W3
DK.BLUE M.M.,8W7
87961MIRROR OUTER, LH
90163A0003
main90163-A0003
10 parts on this diagram · 1 diagram in section
