Toyota COROLLA — METER

0001 1 0002 1 0003 1 0004 1 0005 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×6iTE72..SR5197908-198208

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×13iAE71,TE72197908-198307

12V 3.4W,12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×12iTE72..WG;TE72..SR5198108-198208

12V 3.4W

main83101-14040×5iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

12V 1.4W SR5 PACKAGE

main83101-20040×13iAE71,TE72..(CP,HT,LB)..DX198108-198307

12V 3.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-12610iTE72..(SED,WG)..DX197908-198008

W/CLOOK

main83247-12611iTE72..(SED,WG)..DX..CND198008-198108

W/CLOCK

main83247-12620iTE72..SED,WG197908-198008

main83247-12621iTE72..(SED,WG)..CND198008-198108

main83247-12630iTE72..(CP,LB)..DX..CND198008-198108

W/CLOCK

main83247-12640iTE72..(CP,LB)..DX197908-198008

main83247-12650iTE72..SR5197908-198008

main83247-12700iTE72..(SED,WG)..DX..USA198008-198108

W/CLOOK

main83247-12710iTE72..(SED,WG)..USA198008-198108

main83247-12740iTE72..SR5..USA198008-198108

main83247-12750iTE72..(CP,HT,LB)..DX..USA198008-198108

main83247-12760iTE72..(CP,HT,LB)..DX..USA198008-198108

W/CLOCK

main83247-12870iAE71,TE72..(SED,WG)..CND198108-198307

main83247-12890iAE71,TE72..(SED,WG)..USA198108-198307

main83247-1A030iAE71,TE72..(SED,WG)..CND198108-198307

W/CLOCK

main83247-1A050iAE71,TE72..(SED,WG)..DX..USA198108-198307

W/CLOOK

main83247-1A270iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

SR5 PACKAGE

main83247-1A400iAE71,TE72..(CP,HT,LB)..DX198108-198307

83110SPEEDOMETER ASSY

main83110-12690iTE72..STD..CND197908-198008

main83110-12691iTE72..STD..CND198008-198108

main83110-12700iTE72..(SED,WG)..DX..CND197908-198008

main83110-12701iTE72..(SED,WG)..DX..CND198008-198108

main83110-12702iAE71,TE72..(SED,WG)..CND198108-198307

main83110-12710iTE72..STD..USA197908-198008

main83110-12711iTE72..STD..USA198008-198108

main83110-12790iTE72..(SED,WG)..DX..USA197908-198008

main83110-12791iTE72..(SED,WG)..DX..USA198008-198108

main83110-12792iAE71,TE72..(SED,WG)..USA198108-198307

main83110-12841iTE72..SR5..USA197908-198008

main83110-12842iTE72..SR5..USA198008-198108

main83110-12843iTE72..SR5..USA198108-198208

main83110-12891iTE72..(CP,LB)..DX..CND197908-198008

main83110-12892iTE72..(CP,LB)..DX..CND198008-198108

main83110-1A011iTE72..(CP,LB)..DX..USA197908-198008

main83110-1A012iTE72..(CP,HT,LB)..DX..USA198008-198108

main83110-1A021iTE72..SR5..CND197908-198008

main83110-1A022iTE72..SR5..CND198008-198108

main83110-1A023iTE72..SR5..CND198108-198208

main83110-1A130iAE71,TE72..(CP,HT,LB)..DX..USA198108-198307

main83110-1A140iAE71..(CP,HT,LB)..CND198208-198307

83128KNOB, TRIP COUNTER

main83128-10260iTE72..CP,HT,LB197908-198108

main83128-12650iTE72..SR5,STD;TE72..(SED,WG)..DX198108-198208

main83128-12670iTE72..(SED,WG)..DX197908-198108

83132CASE, COMBINATION METER

main83132-12070iTE72..(CP,LB)..DX197908-198008

main83132-12080iTE72..SED,WG197908-198008

sub83132-12H90

main83132-12090iTE72..SR5197908-198008

main83132-12110iTE72..SR5198008-198108

main83132-12120iTE72..(CP,HT,LB)..DX198008-198108

main83132-12130iTE72..SED,WG198008-198108

main83132-12210iAE71,TE72..SED,WG198108-198307

main83132-12350iTE72..SR5198108-198208

main83132-1A020iAE71,TE72..(CP,HT,LB)..DX198108-198307

main83132-1A040iAE71,TE72..(CP,HT,LB)..DX198108-198307

W/CLOCK

83134COVER, COMBINATION METER, NO.1

main83133-12200iTE72..(SED,WG)..DX..USA197908-198108

W/CLOCK

main83133-12210iTE72..(SED,WG)..DX..USA197908-198108

main83133-12220iTE72..STD..USA197908-198108

main83133-12230iTE72..(SED,WG)..DX..CND197908-198108

W/CLOCK

main83133-12240iTE72..(SED,WG)..DX..CND197908-198108

main83133-12250iTE72..STD..CND197908-198108

main83133-12260iTE72..(CP,HT,LB)..DX..USA197908-198108

W/CLOCK

main83133-12270iTE72..(CP,LB)..DX..CND197908-198108

W/CLOCK

main83133-12280iTE72..(CP,HT,LB)..DX..USA197908-198108

main83133-12290iTE72..(CP,LB)..DX..CND197908-198108

main83133-12300iTE72..SR5..USA197908-198108

main83133-12310iTE72..SR5..CND197908-198108

main83133-12390iAE71,TE72..SED,WG198108-198307

main83133-12410iAE71,TE72..SED,WG198108-198307

W/CLOCK

main83133-12510iAE71..(CP,HT,LB)..(4FC,5F)198208-198307

SR5 PACKAGE

main83134-1A020iAE71,TE72..(CP,HT,LB)..DX..USA198108-198307

main83134-1A040iAE71,TE72..(CP,HT,LB)..DX..USA198108-198307

W/CLOCK

main83134-1A060iTE72..(HT,LB)..DX..CND198108-198208

main83134-1A080iAE71..(CP,HT,LB)..CND198208-198307

W/CLOCK

83145LENS, METER, NO.1

main83145-12011iTE72..STD197908-198008

main83145-12021iTE72..(SED,WG)..DX197908-198008

main83145-12130iTE72..(SED,WG)..DX..USA198008-198108

main83145-12140iTE72..STD..USA198008-198108

main83145-12150iTE72..(SED,WG)..DX..CND198008-198108

main83145-12160iTE72..STD..CND198008-198108

main83145-12390iAE71,TE72..STD..USA198108-198307

main83145-12410iAE71,TE72..(SED,WG)..DX198108-198307

83310GAGE ASSY, FUEL RECEIVER

main83243-12160iTE72..(CP,HT,LB)..DX197908-198108

main83243-12170iTE72..SED,WG197908-198108

main83243-12180iTE72..SR5197908-198108

main83243-12330iAE71,TE72..SED,WG198108-198307

main83243-12450iTE72..SR5198108-198208

main83243-1A020iAE71,TE72..(CP,HT,LB)..DX198108-198307

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-12221iTE72..SED,WG197908-198108

main83244-12231iTE72..(CP,HT,LB)..DX197908-198108

main83244-12241iTE72..SR5197908-198108

main83244-12390iAE71,TE72..SED,WG198108-198211

main83244-12530iTE72..SR5198108-198208

main83244-1A250iAE71..USA198211-198307

83910CLOCK ASSY

main83910-12220iTE72..(SED,WG)..DX197908-198108

main83910-12230iTE72..SR5197908-198108

DIGITAL

main83910-12250iTE72..(CP,HT,LB)..DX197908-198108

main83910-12270iAE71,TE72..(SED,WG)..DX198108-198307

main83910-12280iAE71,TE72..(CP,HT,LB)..DX198108-198307

main83910-12290iTE72..SR5198108-198208

DIGITAL

9009300416

main90093-00416

9009900909

main90099-00909

9009900917

main90099-00917

9009900929

main90099-00929

9018305094

main90183-05094

9354015016

main93540-15016

9411540400

main94115-40400

9451100400

main94511-00400

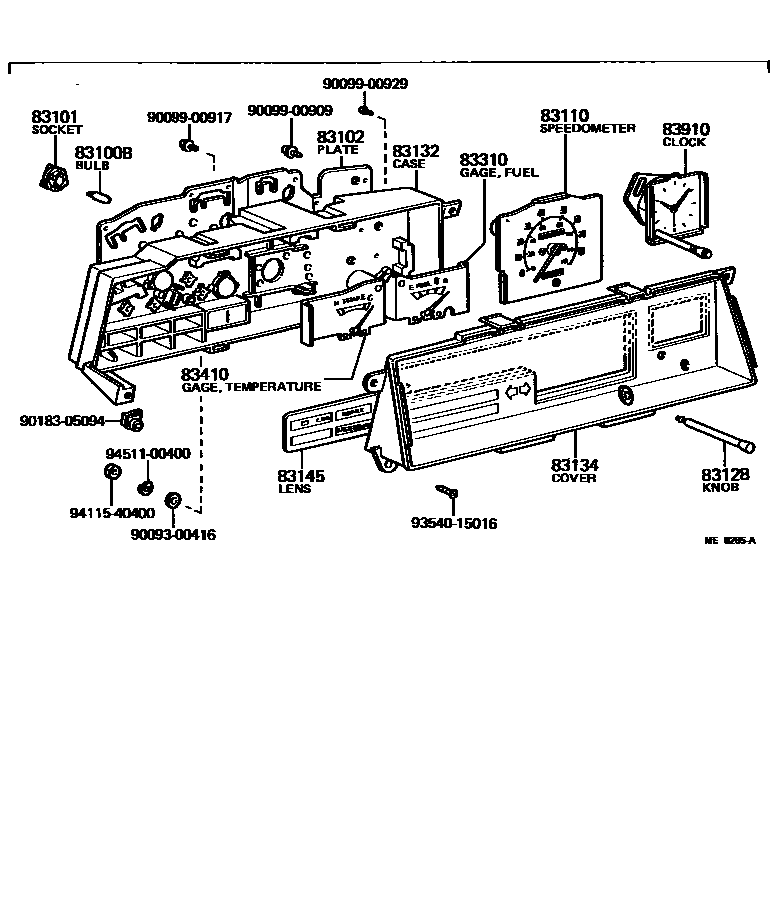

19 parts on this diagram · 5 diagrams in section
