Toyota COROLLA — METER

Parts diagram

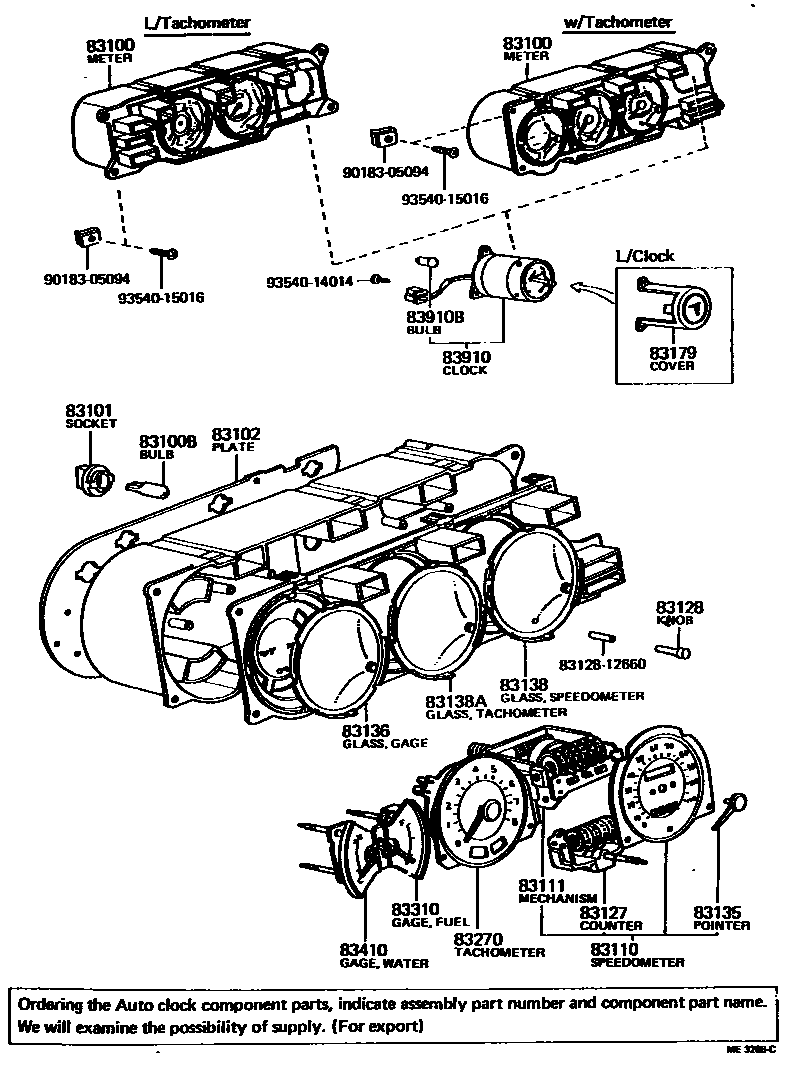

83100METER ASSY, COMBINATION
main83000-12080i197708-197808
main83000-12081i197808-197908
main83000-12090i197708-197808
main83000-12091i197808-197908
CANADA SPEC.
main83000-12100i197708-197808
main83000-12101i197808-197908
main83000-12110i197708-197808
main83000-12111i197808-197908
main83000-12140i197808-197908
main83000-12150i197808-197908
main83010-12050i197701-197708
main83010-12060i197708-197808
main83010-12250i197701-197708
W/LARGE CLOCK
main83010-12260i197708-197808
W/TACHOMETER
main83010-12270i197701-197708
W/LARGE CLOCK,CAL.& H.A.
main83010-12271i197708-197808
W/LARGE CLOCK,CAL.& H.A.
main83010-12280i197701-197708
W/TACHOMETER CAL.& H.A.
main83010-12281i197708-197808
W/TACHOMETER CAL.& H.A.
main83010-12290i197701-197708
CAL.& H.A.;CANADA
main83010-12291i197708-197808
CAL.& H.A.
main83010-12300i197701-197708
CAL.& H.A.
main83010-12301i197708-197808
CAL.& H.A.
main83010-12410i197708-197808
main83010-12411i197808-197908
main83010-12420i197708-197808
W/TACHOMETER
main83010-12421i197808-197908
W/TACHOMETER
main83010-12430i197708-197808
W/LARGE CLOCK
main83010-12431i197808-197908
W/LARGE CLOCK
main83010-12450i197708-197808
W/TACHOMETER
main83010-12451i197808-197908
W/TACHOMETER
main83010-12510i197708-197808
main83010-12511i197808-197908
main83010-12630i197808-197908
main83010-12640i197808-197908
W/LARGE CLOCK
main83010-12650i197808-197908
W/TACHOMETER
main83010-12660i197808-197908
main83100-12840i197603-197608
main83100-12841i197608-197701
main83100-12850i197508-197608
main83100-12851i197608-197701
main83100-12852i197701-197708
main83100-12860i197408-197508
main83100-12861i197608-197701
main83100-12862i197701-197708
main83100-12870i197408-197508
main83100-12871i197508-197608
main83100-12872i197708-197808
main83100-12873i197608-197701
main83100-12874i197808-197908
main83200-12020i197508-197608
main83200-12021i197708-197808
main83200-12022i197608-197701
main83200-12060i197508-197608
main83200-12061i197701-197708
main83200-12062i197608-197701
main83200-12240i197408-197608
CALIFORNIA SPEC.
main83200-12241i197701-197708
main83200-12242i197608-197701
CAL.& H.A.
main83200-12243i197708-197808
main83200-12250i197408-197608
CALIFORNIA SPEC.
main83200-12251i197701-197708
CAL.& H.A.
main83200-12252i197608-197701
CAL.& H.A.
main83200-12253i197708-197808
CAL.& H.A.
main83200-12260i197408-197508
CALIFORNIA SPEC.
main83200-12261i197508-197608
CALIFORNIA SPEC.
main83200-12262i197701-197708
CAL.& H.A.
main83200-12263i197608-197701
CAL.& H.A.
main83200-12264i197708-197808
CAL.& H.A.
main83200-12470i197603-197608
main83200-12471i197608-197701
main83200-12480i197603-197608
CALIFORNIA SPEC.
main83200-12481i197608-197701
CAL.& H.A.
main83200-12490i197603-197608
CALIFORNIA SPEC.
main83200-12491i197608-197701
CAL.& H.A.
main83200-12610i197603-197608
W/ED MONITOR
main83200-12611i197608-197701
W/ED MONITOR
main83200-12620i197603-197608
CALIFORNIA SPEC.W/ED MONITOR
main83200-12621i197608-197701
CAL.& H.A.W/ED MONITOR
main83200-12630i197603-197608
W/TACHOMETER
main83200-12631i197608-197701
W/TACHOMETER
main83200-12640i197603-197701
CALIFORNIA SPEC.W/TACHOMETER
main83200-12641i197608-197701
CAL.& H.A.W/TACHOMETER
main83200-12720i197608-197701
main83200-12721i197701-197708
83100BBULB, COMBINATION METER, NO.1
main90981-11018×3i197701-197908
12V 1.2W W/O SOCKET
main99132-12034×12i197408-197908
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-10010×12i197408-197801
main83101-12020i197701-197708
CANADA
main83101-14010×3i197701-197801
main83101-14030×12i197801-197908
main83101-14040×3i197801-197908
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
main83247-12080i197508-197701
main83247-12090i197408-197701
main83247-12100i197608-197701
CAL.& H.A.
main83247-12110i197508-197701
main83247-12190i197603-197701
main83247-12200i197603-197608
CALIFORNIA SPEC.
main83247-12320i197701-197708
main83247-12330i197708-197808
W/TACHOMETER,CAL.& H.A.
main83247-12340i197701-197708
W/TACHOMETER
main83247-12390i197708-197908
main83247-12400i197701-197708
CAL.& H.A.
main83247-12430i197701-197708
CAL.& H.A.
main83247-12440i197708-197908
main83247-12450i197708-197908
CAL.& H.A.
main83247-12460i197708-197908
CAL.& H.A.
83110SPEEDOMETER ASSY
main83110-12440i197508-197608
CALIFORNIA SPEC.
main83110-12441i197608-197708
CANADA SPEC.
main83110-12442i197708-197808
main83110-12450i197508-197608
CALIFORNIA SPEC.
main83110-12451i197701-197708
main83110-12452i197708-197808
CAL.& H.A.
main83110-12460i197508-197608
CALIFORNIA SPEC.
main83110-12580i197808-197908
main83110-12590i197808-197908
main83110-12600i197808-197908
main83110-12610i197808-197908
CANADA SPEC.
main83110-12620i197808-197908
main83110-12630i197808-197908
main83110-12640i197808-197908
main83110-12650i197808-197908
main83241-12080i197508-197608
main83241-12110i197508-197608
main83241-12180i197608-197708
main83241-12181i197708-197807
main83241-12182i197807-197908
main83241-12190i197608-197708
main83241-12191i197708-197807
main83241-12192i197807-197808
main83241-12260i197701-197708
CAL.& H.A.
main83241-12261i197708-197807
CAL.& H.A.
main83241-12262i197807-197808
CAL.& H.A
main83241-12270i197701-197708
main83241-12271i197708-197807
main83241-12272i197807-197808
main83241-12330i197708-197908
main83241-12340i197708-197808
main83241-12350i197708-197808
main83241-12361i197708-197808
main83241-12371i197708-197808
83111MECHANISM, SPEEDOMETER
main83111-12510i197508-197608
CALIFORNIA SPEC.
main83111-12520i197608-197701
CAL.& H.A.
main83111-12530i197808-197908
CANADA SPEC.
main83111-12540i197808-197908
main83111-12550i197808-197908
main83111-12560i197508-197701
main83111-12620i197808-197908
main83111-30440i197808-197908
83127COUNTER, TRIP
main83127-12280i197808-197908
main83127-12860i197808-197908
83128KNOB, TRIP COUNTER
main83128-12650i197408-197908
83135POINTER, SPEEDOMETER
main83135-12220i197408-197701
main83135-12230i197808-197908
83136GLASS, GAGE METER
main83138-12340×2i197701-197908
main83138-12640i197408-197908
main83138-12750i197603-197701
83138GLASS, SPEEDOMETER
main83138-12640i197408-197908
main83138-12650i197808-197908
CANADA SPEC.
83138AGLASS, TACHOMETER
main83138-12640i197408-197908
83179COVER, COMBINATION METER, HOLE
main83179-12010i197408-197701
L/CLOCK
83270TACHOMETER ASSY, ENGINE
main83242-12070i197408-197508
main83242-12080i197408-197508
CALIFORNIA SPEC.
main83242-12100i197508-197511
main83242-12101i197511-197908
main83242-12110i197508-197511
CALIFORNIA SPEC.
main83242-12111i197603-197701
main83242-12190i197701-197805
main83242-12191i197805-197908
83310GAGE ASSY, FUEL RECEIVER
main83243-12010i197408-197701
main83243-12030i197603-197701
main83243-12050i197603-197608
CALIFORNIA SPEC.
main83243-12090i197701-197908
main83243-12100i197701-197908
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
main83244-12010i197408-197511
main83244-12011i197511-197701
main83244-12031i197603-197701
main83244-12130i197701-197908
main83244-12180i197701-197908
83910CLOCK ASSY
main83910-12030i197408-197701
CITIZEN
main83910-12060i197603-197701
JECO
main83910-12090i197408-197701
JECO
main83910-12110i197701-197908
SMALL TYPE,CITIZEN
main83910-12120i197701-197908
SMALL TYPE,JECO
sub83910-12121
main83910-12170i197701-197908
SMALL TYPE,JECO
main83910-12180i197701-197908
LARGE TYPE,JECO
main83910-12190i197701-197908
SMALL TYPE,CITIZEN
main83910-12200i197701-197908
LARGE TYPE,CITIZEN
83910BBULB, CLOCK INDICATOR
main99132-11034i197408-197708
12V 3.4W
8312812660KNOB, TRIP COUNTER
main83128-12660
9018305094
main90183-05094
9354014014
main93540-14014
9354015016
main93540-15016

22 parts on this diagram · 4 diagrams in section
