Toyota COROLLA — METER

0001 1 0002 1

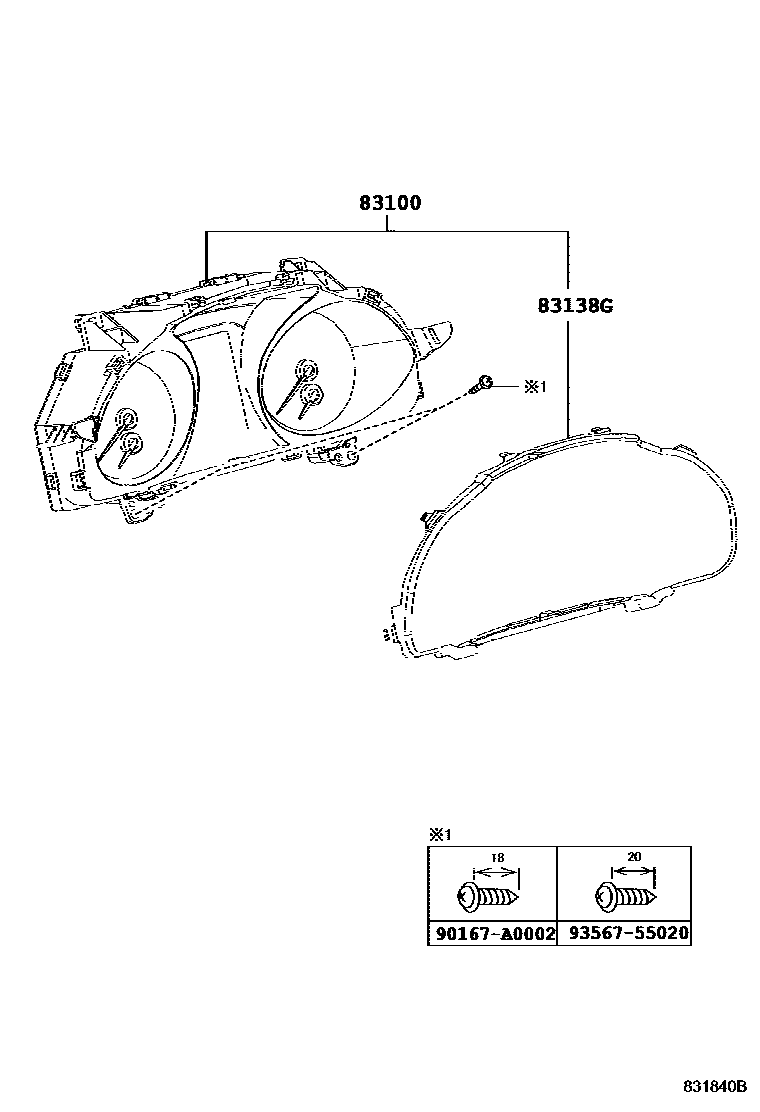

83100METER ASSY, COMBINATION

main83800-0ZX00iZRE172..HTWVM..USA201308-201608

main83800-0ZX10iZRE172..(LE,STD)..USA201308-201608

main83800-0ZX20iZRE172..HTWVM..CND201308-201608

main83800-0ZX40iZRE172..HTWVM..CND201308-201408

main83800-0ZX50iZRE172..S..USA201308-201408

main83800-0ZX51iZRE172..S..USA201408-201608

main83800-0ZX60iZRE172..S..CND201308-201408

main83800-0ZX61iZRE172..S..CND201408-201608

main83800-F2P50iZRE172..S..USA201608-201708

PLUS3 PACKAGE

main83800-F2P60iZRE172..S..CND201608-201708

main83800-F2P70iZRE172..(ECO,ECOSW,LE,STD)..USA201608-201708

main83800-F2P80iZRE172..(ECO,ECOSW,LE,STD)..CND201608-201708

main83800-F2U60iZRE172..S..USA201708

PLUS3 PACKAGE

main83800-F2U70iZRE172..S..CND201708

PLUS3 PACKAGE

main83800-F2U80iZRE172..(ECO,ECOSW,LE,STD)..USA201708

main83800-F2U90iZRE172..(ECO,ECOSW,LE,STD)..CND201708

83138GGLASS, COMBINATION METER

main83852-0ZX00iZRE172..ECO,ECOSW,LE,STD201308-201608

main83852-0ZX50iZRE172..S201308-201608

main83852-F2P70iZRE172..ECO,ECOSW,LE,STD201608

main83852-F2Q10iZRE172..S201608

PLUS3 PACKAGE

90167A0002

main90167-A0002

9356755020

main93567-55020

4 parts on this diagram · 2 diagrams in section
