Toyota COROLLA — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-02250i201608

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-02260i201308-201608

main69052-02270i201608

ANTI-THEFT SYSTEM-IMB + ALARM(HORN)

main69052-02280supersedes 69052-02270i201308-201608

STARTING SYSTEM-PUSH(WITH/SMART)

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-02260i201608

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02720i201308-201608

main69057-0R050i201608

ANTI-THEFT SYSTEM-IMB + ALARM(HORN)

69503CYLINDER SET, LOCK

main69005-02A20i201608

main69005-02A30i201608

ANTI-THEFT SYSTEM-IMB + ALARM(HORN)

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-02030i201308-201608

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); PUERTO RICO SPEC

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-0D170i201308-201608

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); PUERTO RICO SPEC; PUERTO RICO SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

90178A0023

main90178-A0023

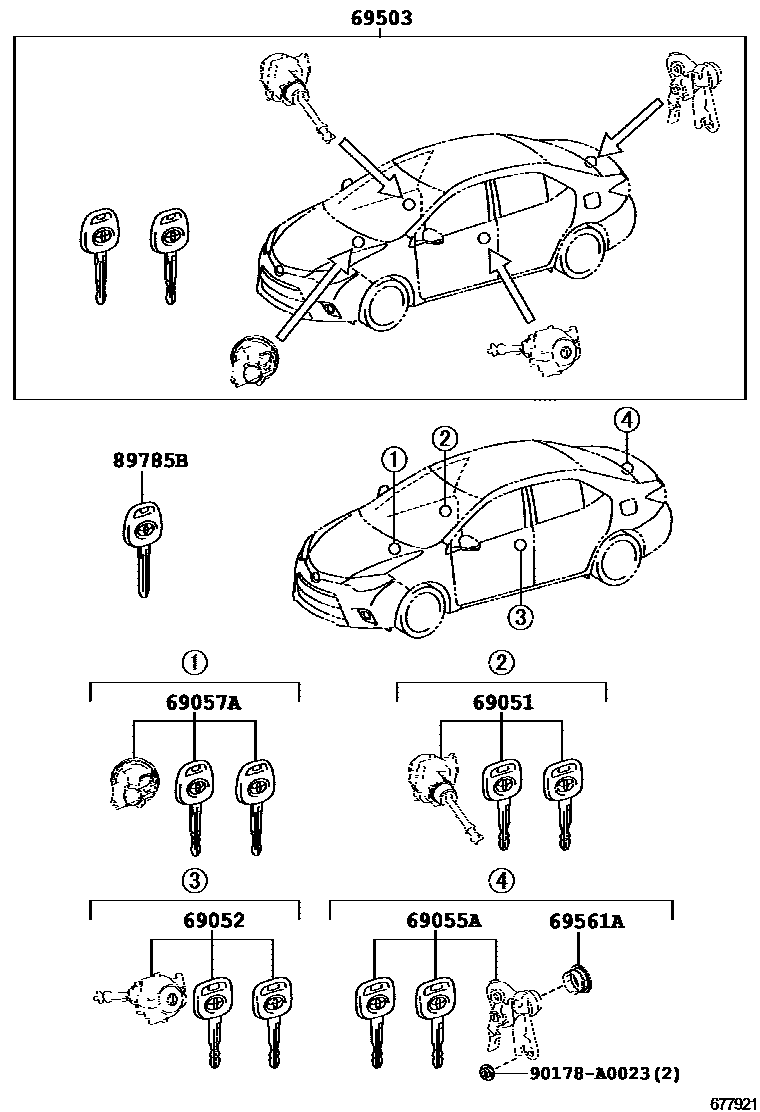

8 parts on this diagram · 3 diagrams in section

LOCK CYLINDER SET for Toyota COROLLA

This section contains 19 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
