Toyota COROLLA — INTERIOR LAMP
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
12V 1.2W W/O SOCKET,12V 1.4W
81240LAMP ASSY, ROOM, NO.1
IVORY,IVORY
IVORY,IVORY
IVORY,IVORY
IVORY,IVORY
81240BBULB, ROOM LAMP, NO.1
12V 10W,12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
BLACK,BLACK
BLUE,BLUE
DARK BROWN,BROWN
81250BBULB, ROOM LAMP, NO.2
12V 5W,12V 5W
81251LENS, ROOM LAMP, NO.2
8125914010
main81259-14010
9354014514
main93540-14514

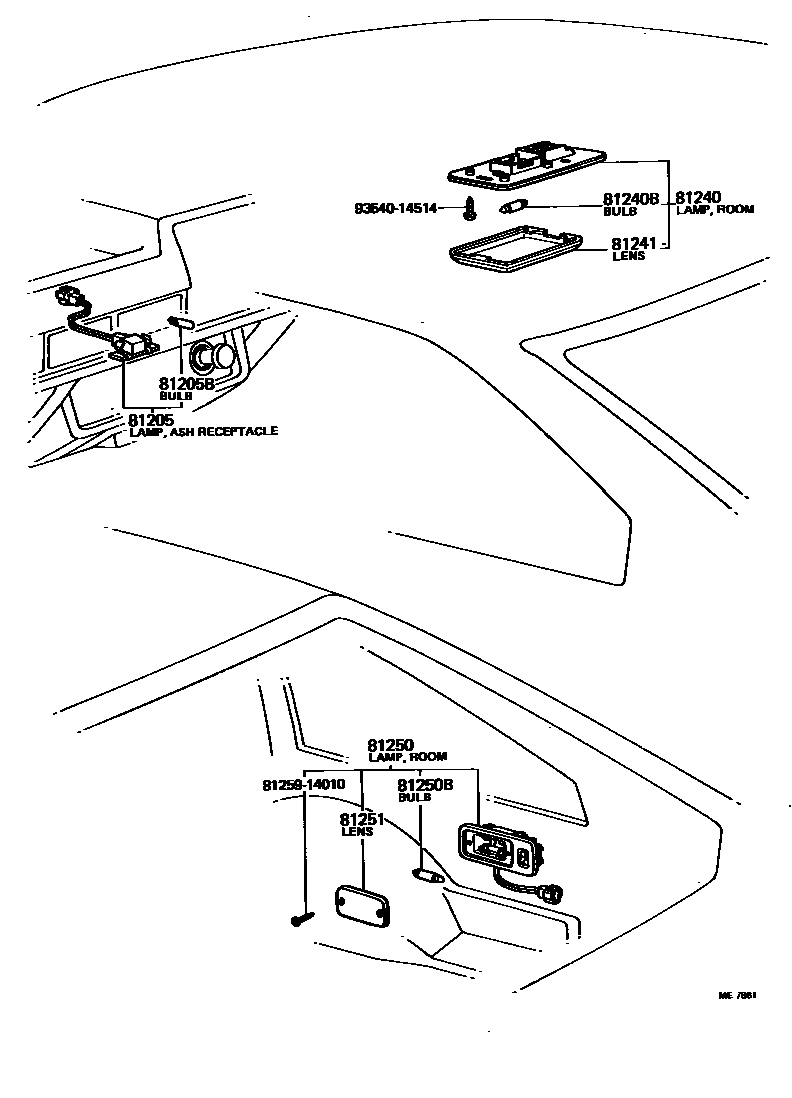

10 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota COROLLA
This section contains 10 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA. Key components include: LAMP SUB-ASSY, ASH RECEPTACLE, BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1.
