Toyota COROLLA — INTERIOR LAMP
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
12V 1.2W W/O SOCKET,12V 1.4W
81240LAMP ASSY, ROOM, NO.1
GRAY,GRAY
BLUE,BLUE
BEIGE,BEIGE
IVORY,IVORY
GRAY,GRAY
BEIGE,BEIGE
GRAY,GRAY
BLUE,BLUE
BEIGE,BEIGE
BEIGE,BEIGE
GRAY,GRAY
BLACK,BLACK
IVORY,IVORY
BEIGE,BEIGE
GRAY,GRAY
81240BBULB, ROOM LAMP, NO.1
12V 10W,12V 10W
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
BROWN,BROWN
BLACK,BLACK
BLACK,BLACK
BLUE,BLUE
BEIGE,BEIGE
81250BBULB, ROOM LAMP, NO.2
12V 5W,12V 5W
81251LENS, ROOM LAMP, NO.2
81256RIM, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 5W T10,12V 5W
81265SOCKET & WIRE, MAP LAMP
8125912010
main81259-12010
9018304031
main90183-04031
9018304070
main90183-04070
9354014025
main93540-14025
9354014514
main93540-14514
9354054010
main93540-54010

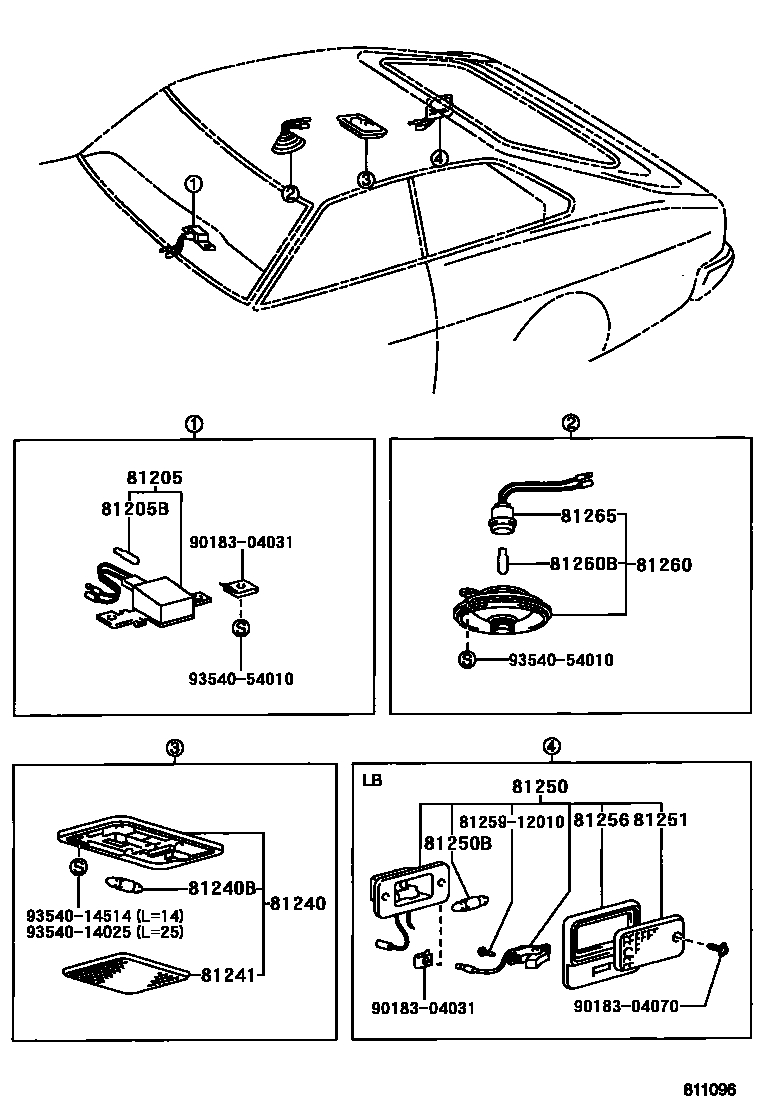

18 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota COROLLA
This section contains 18 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA. Key components include: LAMP SUB-ASSY, ASH RECEPTACLE, BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1.
