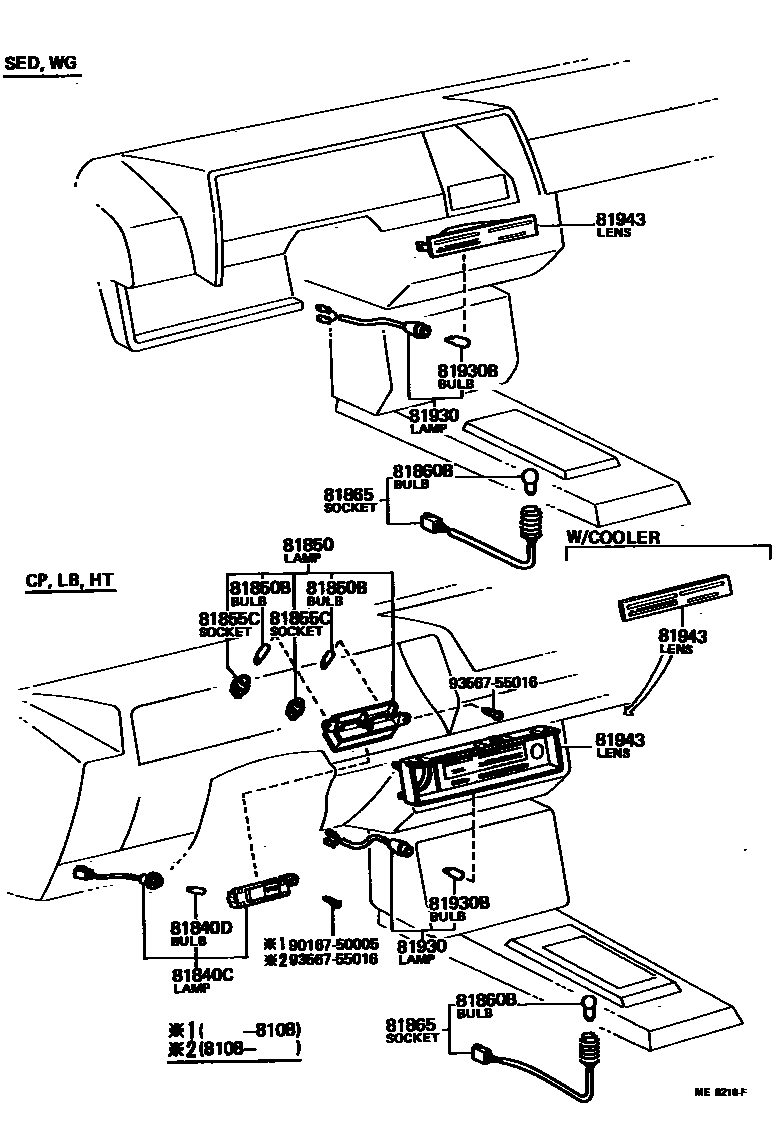

Toyota COROLLA — INDICATOR

81840CLAMP ASSY, DOOR INDICATOR

main81840-12010iTE72..SR5197908-198108

main81840-12011iTE72..SR5198108-198208

81840DBULB, DOOR INDICATOR LAMP

main90981-11018iTE72..SR5197908-198208

12V 1.4W

81850LAMP ASSY, INDICATOR

main81850-12090iTE72..CP,LB197908-198008

main81850-12091iTE72..(CP,HT,LB)..USA198008-198108

main81850-12160iTE72..(CP,HT,LB)..USA198008-198108

W/O RR WINDOW DEFOGGER

main81850-12170iTE72..(CP,LB)..CND198008-198108

81850BBULB, INDICATOR LAMP

main90981-11018×2iTE72..CP,HT,LB197908-198108

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×2iTE72..CP,HT,LB197908-198108

12V 3.4W,12V 3.4W

81855CSOCKET & WIRE, INDICATOR LAMP

main83101-10010×2iTE72..CP,HT,LB197908-198108

12V 3.4W

sub83101-14030

main83101-22010×2iTE72..CP,HT,LB197908-198108

12V 1.4W

sub83101-14040

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017iAE71,TE72..ATM197908-198307

12V 1.7W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-12030iAE71,TE72..ATM197908-198307

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81850-12040iTE72197908-198008

main81850-12041iTE72198008-198108

main81850-12042iAE71,TE72198108-198307

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11018iTE72197908-198307

12V 1.2W W/O SOCKET,12V 1.4W

81943LENS, HEATER CONTROL INDICATOR

main81940-12060iAE71,TE72..(CP,HT,LB)..USA197908-198307

W/O HEATER

main81940-12070iTE72..CP,LB197908-198008

main81940-12072iTE72..CP,HT,LB198008-198108

main81940-12073iAE71,TE72..CP,HT,LB198108-198307

main81940-12080iTE72..(CP,LB)..USA197908-198008

BOOST VENTILATOR ONLY

main81940-12082iTE72..(CP,HT,LB)..USA198008-198108

BOOST VENTILATOR ONLY

main81940-12083iAE71,TE72..(CP,HT,LB)..USA198108-198307

BOOST VENTILATOR ONLY

main81942-12060iAE71,TE72..(CP,HT,LB)..USA198108-198307

W/BOOST VENTILATOR & COOLER

main81943-12070iTE72..SED,WG197908-198008

main81943-12072iTE72..SED,WG198008-198108

sub81943-12075

main81943-12073iAE71,TE72..SED,WG198108-198307

sub81943-12075

main81943-12090iTE72..(SED,WG)..USA197908-198008

BOOST VENTILATOR ONLY

main81943-12092iTE72..(SED,WG)..USA198008-198108

BOOST VENTILATOR ONLY

sub81943-12095

main81943-12093iAE71,TE72..(SED,WG)..USA198108-198307

BOOST VENTILATOR ONLY

sub81943-12095

9016750005

main90167-50005

9356755016

main93567-55016

12 parts on this diagram · 1 diagram in section
