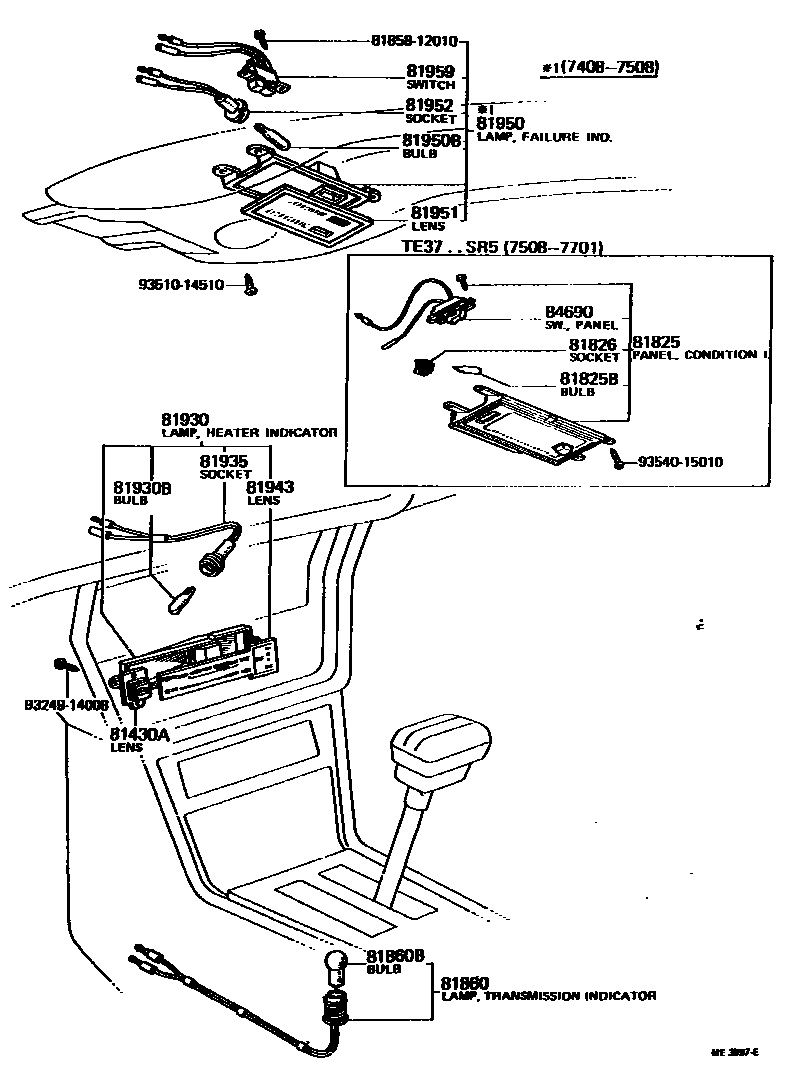

Toyota COROLLA — INDICATOR

0001 1 0002 1

81430ALENS, REAR WINDOW DEFOGGER INDICATOR LAMP

main55488-12010iKE3#,TE3#,51197408-197701

81825PANEL ASSY, CONDITION INDICATOR

main81820-12010iTE37..USA197508-197701

81825BBULB, CONDITION INDICATOR PANEL

main90981-11014×4iTE37..USA197508-197701

12V 1.4W

81826SOCKET, CONDITION INDICATOR BULB

main83101-14010×4iTE37..USA197508-197701

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-22011iTE3#,51..A40197408-197908

81860BBULB, TRANSMISSION INDICATOR LAMP

main99132-11017iTE3#,51..A40197408-197908

12V 1.7W,12V 1.7W

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-12040iKE3#,TE3#197408-197412

main81930-12041iKE3#,TE3#,51197412-197608

main81930-12042iTE3#..DLX,SR5197708-197802

main81930-12043iTE3#..DLX,SR5197802-197908

main81930-12050iTE3#197408-197412

W/COOLER

main81930-12051iTE3#,51197412-197608

W/COOLER

main81930-12052iTE3#..DLX,SR5197701-197708

W/COOLER

main81930-12053iKE30,TE31..SPL..USA197805-197908

W/COOLER

main81930-12070iKE30,TE31..SPL,STD197701-197802

main81930-12071iKE30,TE31..SPL,STD197802-197908

main81930-12080iTE31..SPL,STD197701-197708

W/COOLER

main81930-12081iKE30,TE31..SPL..USA197802-197805

W/COOLER

main81930-12100iKE50,TE51197701-197802

main81930-12101iKE50,TE51197802-197908

sub81930-12091

main81930-12120iTE51..USA197708-197802

W/COOLER

main81930-12121iTE51..USA197802-197908

W/COOLER

main81930-12130iKE3#,TE3#,51197608-197701

main81930-12140iTE3#,51197608-197701

W/COOLER

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11018iKE3#,50,TE3#,51197408-197908

12V 1.2W W/O SOCKET,12V 1.4W

81935SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP

main81935-12020iKE3#,TE3#,51197408-197701

81943LENS, HEATER CONTROL INDICATOR

main81931-12040iKE3#,TE3#197408-197412

main81931-12041iKE3#,TE3#,51197412-197701

main81931-12042iKE3#,50,TE3#,51197701-197802

main81943-12020iTE3#,51197408-197701

W/COOLER

main81943-12030iTE3#,51..DLX,SR5197701-197708

W/COOLER

81950LAMP ASSY, FAILURE INDICATOR

main81850-12010iTE37..USA197408-197508

81950BBULB, FAILURE INDICATOR LAMP

main90981-11018iTE37..USA197408-197508

12V 1.4W

81951LENS, FAILURE INDICATOR LAMP

main81851-12010iTE37..USA197408-197508

81952SOCKET, FAILURE INDICATOR LAMP BULB

main81855-12010iTE37..USA197408-197508

81959SWITCH, FAILURE INDICATOR LAMP

main81859-12010iTE37..USA197408-197508

84690SWITCH ASSY, CONDITION INDICATOR PANEL

main84249-12010iTE37..USA197508-197701

8185812010SOCKET AND WIRE, INDICATOR LAMP

main81858-12010

9324914008

main93249-14008

9351014510

main93510-14510

9354015010

main93540-15010

20 parts on this diagram · 2 diagrams in section
