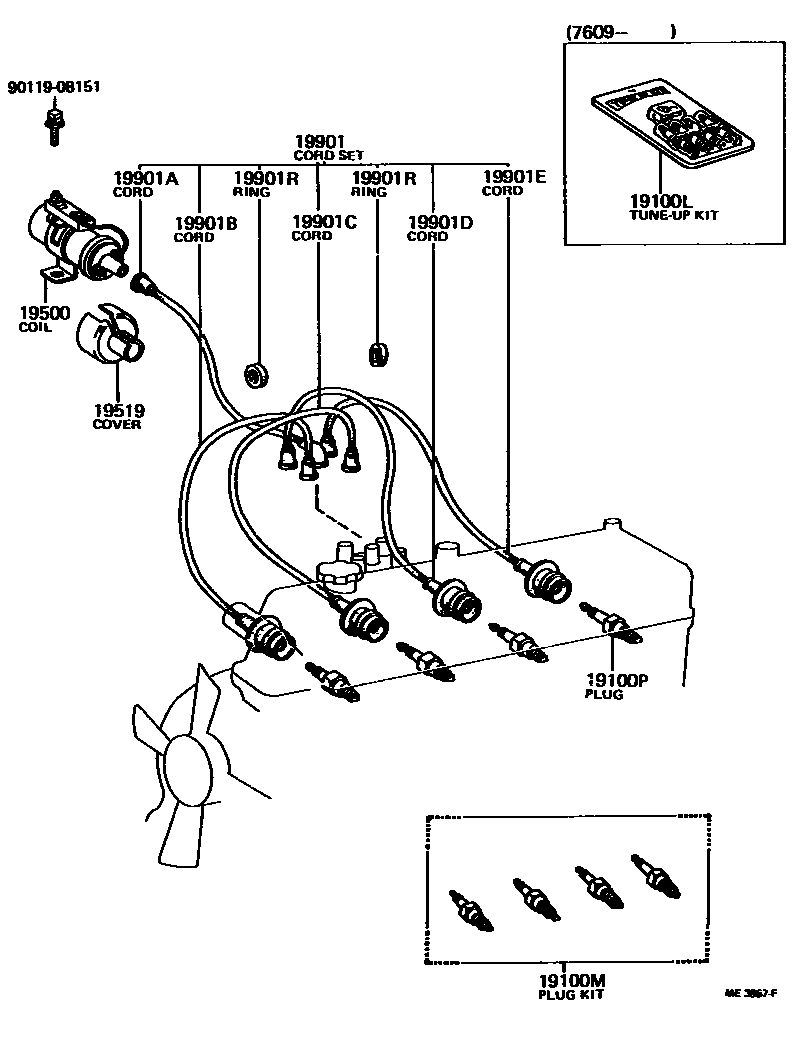

Toyota COROLLA — IGNITION COIL & SPARK PLUG / GLOW PLUG
19100LTUNE-UP KIT
CANADA SPEC.
CANADA SPEC.
19100MPLUG KIT, SPARK
W16EP
19100PPLUG, SPARK
W16EP OR W16EX-U,W16EP
W16EPR OR W16EXR-U,W16EPR CANADA SPEC.
W16EPR OR W16EXR-U,W16EPR
W16EX-U,W16EX-U
19500COIL ASSY, IGNITION
CANADA SPEC.
CANADA SPEC.
19519COVER, IGNITION COIL
19901CORD SET, COIL & SPARK, W/RESISTIVE
W/COOLER
19901ACORD, COIL RESISTIVE
W/COOLER
19901BCORD, SPARK PLUG RESISTIVE, NO.1
19901CCORD, SPARK PLUG RESISTIVE, NO.2
19901DCORD, SPARK PLUG RESISTIVE, NO.3
19901ECORD, SPARK PLUG RESISTIVE, NO.4
19901RRING, RUBBER SPARK PLUG RESISTIVE CORD
9011908151
main90119-08151
13 parts on this diagram · 5 diagrams in section
IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota COROLLA
This section contains 20 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota COROLLA. Key components include: TUNE-UP KIT, PLUG KIT, SPARK, PLUG, SPARK, COIL ASSY, IGNITION, COVER, IGNITION COIL.
