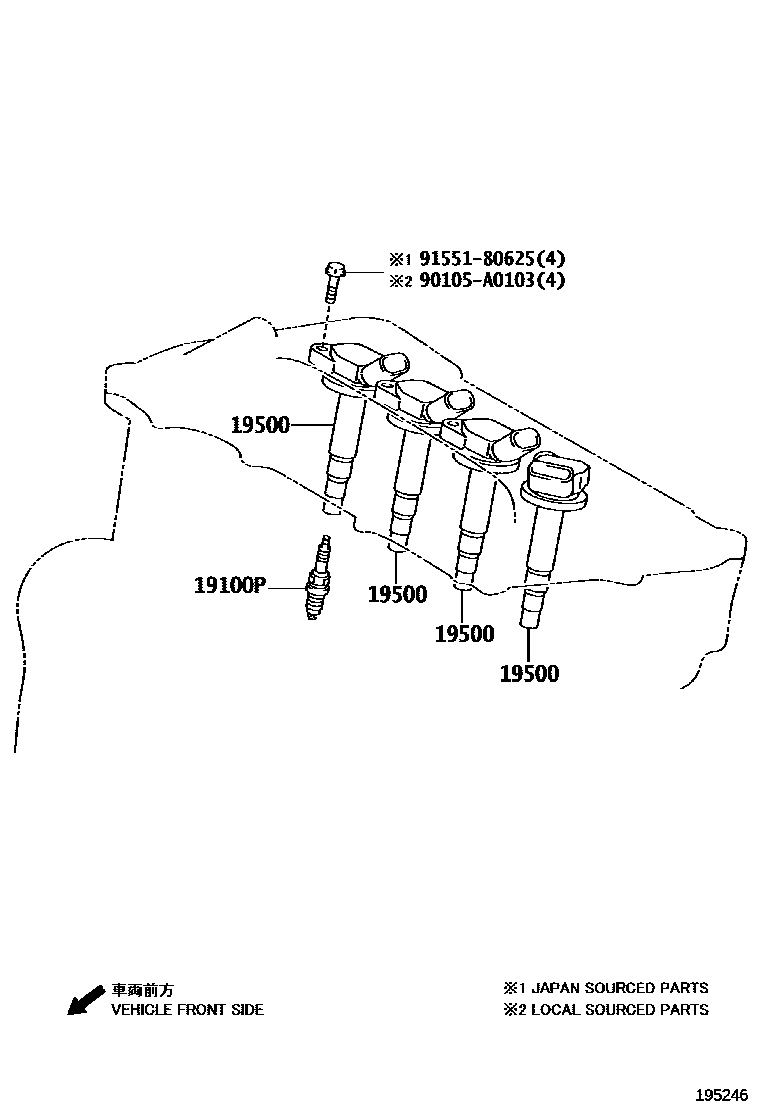

Toyota COROLLA — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01253i2ZR#..ZRE172201308-201503

SC20HR11

sub90919-01275

main90919-01275i2ZR#..ZRE172201504-201608

SC16HR11

19500COIL ASSY, IGNITION

main90919-02258i2ZR#..ZRE172201308-201608

90105A0103

main90105-A0103

9155180625

main91551-80625

4 parts on this diagram · 1 diagram in section
