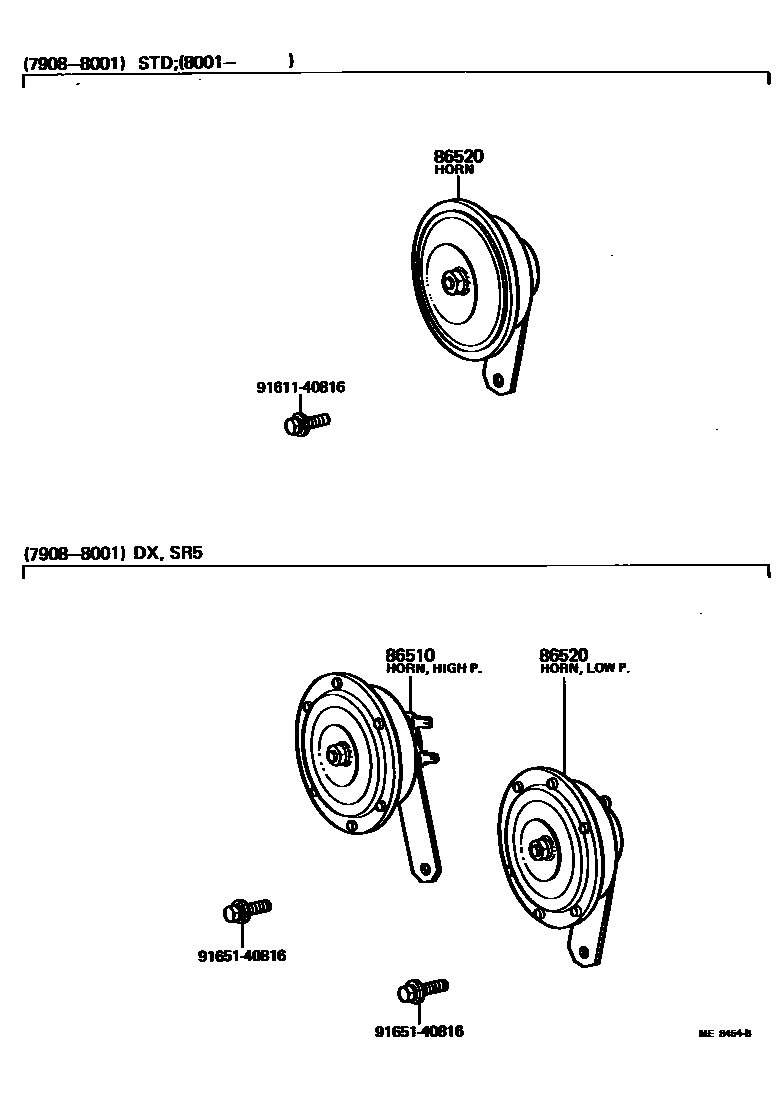

Toyota COROLLA — HORN

86510HORN ASSY, HIGH PITCHED

main86510-12190i197908-198001

DENSO

main86510-12200i197908-198001

MARUKO

86520HORN ASSY, LOW PITCHED

main86520-12190i197908-198108

DENSO

main86520-12200i197908-198108

MARUKO

main86520-12270i198108-198307

9161140816

main91611-40816

9165140816

main91651-40816

4 parts on this diagram · 1 diagram in section

HORN for Toyota COROLLA

This section contains 4 genuine Toyota parts for the HORN system of the Toyota COROLLA. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
