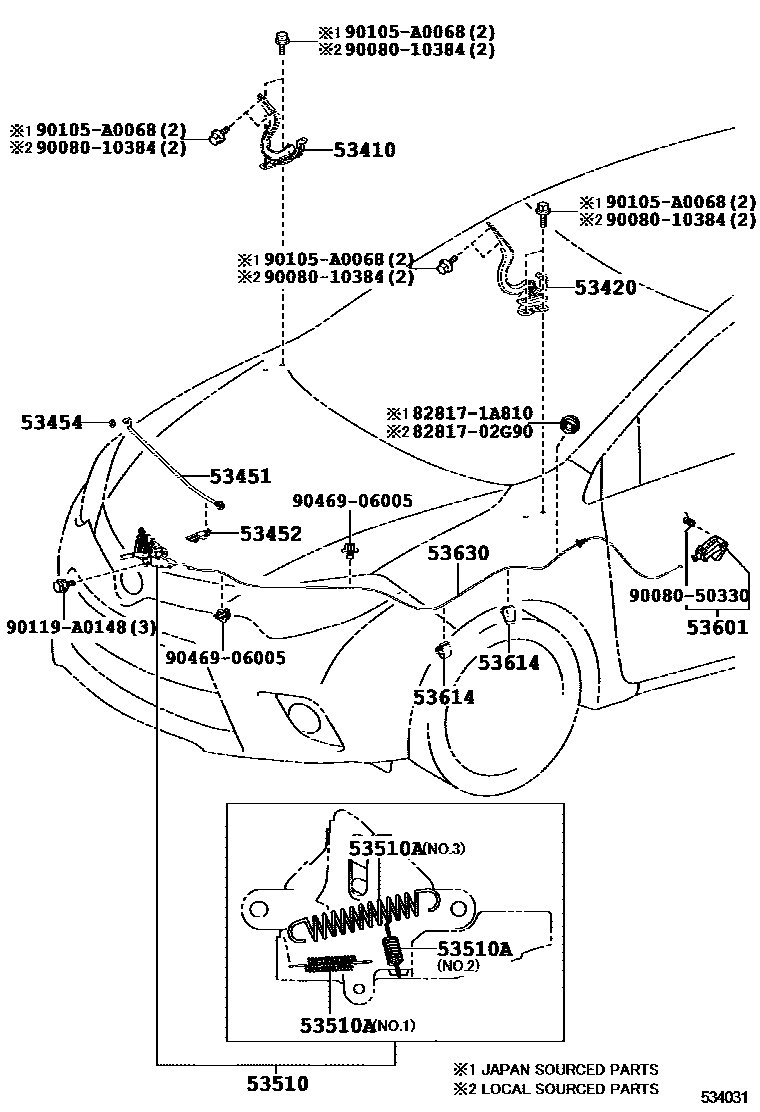

Toyota COROLLA — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-02220i201308-201408

main53410-02280i201608

53420HINGE ASSY, HOOD, LH

main53420-02250i201308-201408

main53420-02280i201608

53451ROD, HOOD SUPPORT

main53440-02170i201308-201608

53452HOLDER, HOOD STAY

main53452-02140i201308-201608

53454CLIP, HOOD SUPPORT ROD

main53454-12040i201308-201608

53510LOCK ASSY, HOOD

main53510-02500i201404-201608

main53510-02510i201608

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055i201608

WD=0.9,CW=21,NO.1

main90506-12063i201308-201408

WD=1.2,CW=8.5,NO.2

main90506-18067i201308-201408

WD=1.8,CW=13,NO.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-02020-C0i201608-201706

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#

main53601-02020-C3i201706-201905

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-1E350×2i201308-201408

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02280i201308-201408

8281702G90PROTECTOR, WIRING HARNESS, NO.1

main82817-02G90

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9008010384

main90080-10384

9008050330

main90080-50330

90105A0068

main90105-A0068

90119A0148

main90119-A0148

9046906005

main90469-06005

17 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota COROLLA

This section contains 17 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota COROLLA. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, HOLDER, HOOD STAY, CLIP, HOOD SUPPORT ROD.
