Toyota COROLLA — HEATING & AIR CONDITIONING - SET

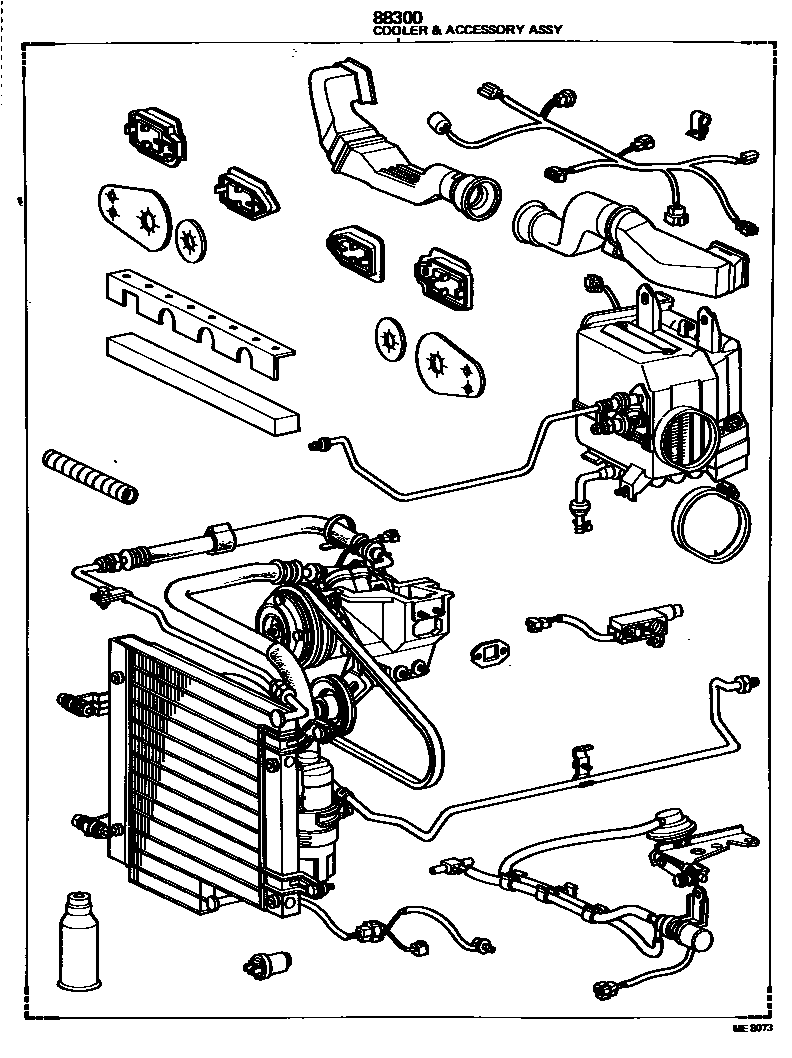

Parts diagram
88300COOLER & ACCESSORY ASSY
main88300-1A180i197908-198008
main88300-1A190i197908-198008
main88300-1A200i197908-198008
CALIFORNIA SPEC
main88300-1A201i198008-198108
main88300-1A210i197908-198008
CALIFORNIA SPEC
main88300-1A211i198008-198108
main88300-1A220i197908-198008
W/PS,AIR MIX HEATER
main88300-1A230i197908-198008
W/PS,AIR MIX HEATER
main88300-1A240i197908-198008
CALIFORNIA SPEC,W/PS
main88300-1A241i198008-198108
W/PS
main88300-1A250i197908-198008
CALIFORNIA SPEC,W/PS
main88300-1A251i198008-198108
W/PS
main88300-1A370i197908-198008
*BV ONLY
main88300-1A380i197908-198008
*BV ONLY
main88300-1A390i197908-198008
*BV,CALIFORNIA SPEC
main88300-1A391i198008-198108
*BV ONLY
main88300-1A400i197908-198008
*BV,CALIFORNIA SPEC
main88300-1A401i198008-198108
*BV ONLY
main88300-1A431i198008-198108
W/PS,*BV ONLY
main88300-1A441i198008-198108
W/PS,*BV ONLY
main88300-1A550i198208-198307
main88300-1A620i198208-198307
main88300-1A630i198208-198307
*BV ONLY
main88300-1A750i198108-198203
main88300-1A751i198203-198208
main88300-1A760i198108-198203
W/PS
main88300-1A761i198203-198208
W/PS
main88300-1A770i198108-198203
main88300-1A771i198203-198208
main88300-1A780i198108-198203
W/PS
main88300-1A781i198203-198208
W/PS
main88300-1A790i198108-198203
*BV ONLY
main88300-1A791i198203-198208
*BV ONLY
main88300-1A800i198108-198203
W/PS,*BV ONLY
main88300-1A801i198203-198208
W/PS,*BV ONLY
main88300-1A810i198108-198203
*BV ONLY
main88300-1A811i198203-198208
*BV ONLY
main88300-1A820i198108-198203
W/PS,*BV ONLY
main88300-1A821i198203-198208
W/PS,*BV ONLY
main88300-1E180i198208-198307
*BV ONLY

1 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota COROLLA

This section contains 1 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota COROLLA. Key components include: COOLER & ACCESSORY ASSY.
