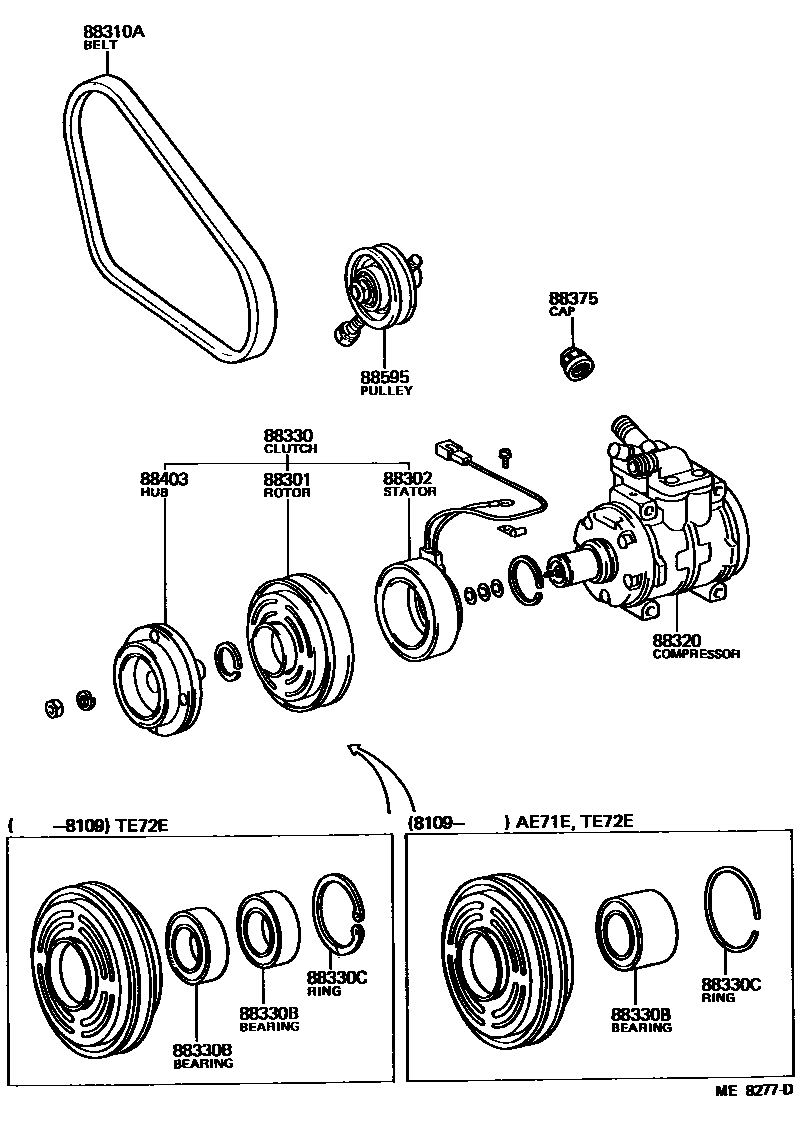

Toyota COROLLA — HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12050i197908-198008

CALIFORNIA SPEC

main88412-12070i197908-198008

main88412-12080i198008-198109

main88412-12090i198109-198208

main88412-14030i198208-198307

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14040i198008-198109

CALIFORNIA SPEC

main88411-14050i198109-198208

CALIFORNIA SPEC

main88411-16010i198208-198307

main88411-30360i197908-198008

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10860i198208-198307

L=860

main99332-10965i198008-198208

88320COMPRESSOR ASSY, COOLER

main88320-12210i197908-198008

CALIFORNIA SPEC

main88320-12220i197908-198008

main88320-12240i198208-198307

88330CLUTCH ASSY, MAGNET

main88410-12100i197908-198008

CALIFORNIA SPEC

main88410-12110i197908-198008

main88410-12130i198109-198208

main88410-16010i198208-198307

88330BBEARING, MAGNET CLUTCH

main90099-10127i197908-198008

main90099-10133i198109-198208

main90099-10135i198208-198307

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07113i197908-198008

main90099-07114i198109-198307

88375CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30270×2i197908-198005

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14040i198208-198307

main88403-22030i198008-198208

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12070i197908-198008

main88440-12080i198208-198307

10 parts on this diagram · 4 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota COROLLA

This section contains 39 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota COROLLA. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, CYLINDER SUB-ASSY, COOLER COMPRESSOR, BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1, CRANKSHAFT, COOLER COMPRESSOR.
