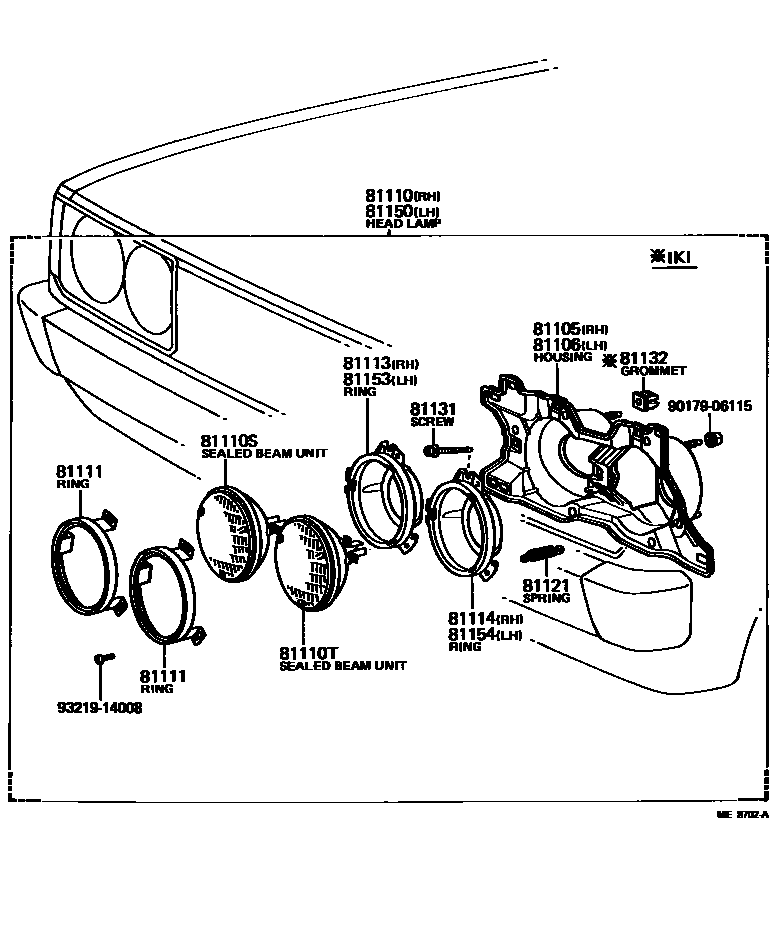

Toyota COROLLA — HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-12550i197908-198008

KOITO

main81105-12560i197908-198008

IKI

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-12480i197908-198008

KOITO

main81106-12490i197908-198008

IKI

81110HEADLAMP ASSY, RH

main81110-80029i197908-198008

KOITO

main81110-80030i197908-198008

IKI

main81110-80031i197908-198008

KOITO

main81110-80032i197908-198008

IKI

main81110-80156i198108-198307

KOITO

main81110-80157i198108-198307

IKI

main81110-80164i198108-198208

HALOGEN

main81110-80187i198108-198208

GM,W/O SEALED BEAM

main81110-80305i198210-198307

HALOGEN

81110SSEALED BEAM UNIT, NO.1

main90981-02011×2i197908-198008

12V 37.5W,*WB,12V 37.5W,KOITO

main90981-02041×2i197908-198008

12V 37.5/50W,*WB,12V 37.5W,IKI

main90981-04003×2i198008-198108

12V 65/55W,*WB,12V 65/55W,IKI

main90981-04004×2i198008-198108

12V 65/55W,*WB,12V 65/55W,KOITO

main90981-04016×2i198208-198210

12V 65/55W,*WB,*HAL,12V 65/55W,HALOGEN

main90981-04020×2i198210-198307

12V 65/35W,*HAL,*WB,12V 65/35W,HALOGEN

81110TSEALED BEAM UNIT, NO.2

main90981-02013×2i197908-198008

12V 37.5/50W,*WB,12V 37.5/50W,KOITO

main90981-02044×2i197908-198008

12V 37.5/50W,IKI

81111RING, SEALED BEAM RETAINING

main81111-14261×4i197908-198008

IKI

main81111-16010×2i198008-198307

IKI

main81111-16020×2i197908-198008

KOITO

main81111-20280×4i197908-198008

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-12571i198108-198307

KOITO

main81113-12581i198108-198307

IKI

main81113-14260i197908-198008

IKI

main81113-20100i197908-198008

KOITO

main81153-16010i197908-198008

IKI

main81153-16020i197908-198008

KOITO

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-14260i197908-198008

IKI

main81154-20100i197908-198008

KOITO

81121SPRING, HEADLAMP TENSION

main81121-12570×2i198108-198307

KOITO

main81121-12581×2i198108-198307

IKI

main81121-16010×2i198008-198108

IKI

main81121-16020×2i198008-198108

KOITO

main81121-20100×4i197908-198008

KOITO

main90506-18018×4i197908-198008

IKI

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4i197908-198008

KOITO

main81131-16010×4i198008-198307

IKI

main81131-20043×8i197908-198008

KOITO

main81131-20053×8i197908-198008

IKI

81132NUT, HEADLAMP SELF LOCKING

main81132-20380×8i197908-198008

IKI

main90189-05013×4i197908-198008

main90189-05015×4i198008-198307

81150HEADLAMP ASSY, LH

main81150-80029i197908-198008

KOITO

main81150-80030i197908-198008

IKI

main81150-80031i197908-198008

KOITO

main81150-80032i197908-198008

IKI

main81150-80153i198108-198307

KOITO

main81150-80154i198108-198307

IKI

main81150-80161i198208-198210

HALOGEN

main81150-80184i198108-198208

GM,W/O SEALED BEAM

main81150-80302i198210-198307

HALOGEN

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-16010i197908-198008

IKI

main81113-16020i198008-198108

KOITO

main81153-12501i198108-198307

KOITO

main81153-12511i198108-198307

IKI

main81153-14260i197908-198008

IKI

main81153-20100i197908-198008

KOITO

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81114-20100i197908-198008

KOITO

main81154-14260i197908-198008

IKI

9017906115

main90179-06115

9321914008

main93219-14008

16 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota COROLLA

This section contains 19 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, BRACKET SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, BRACKET SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH.
