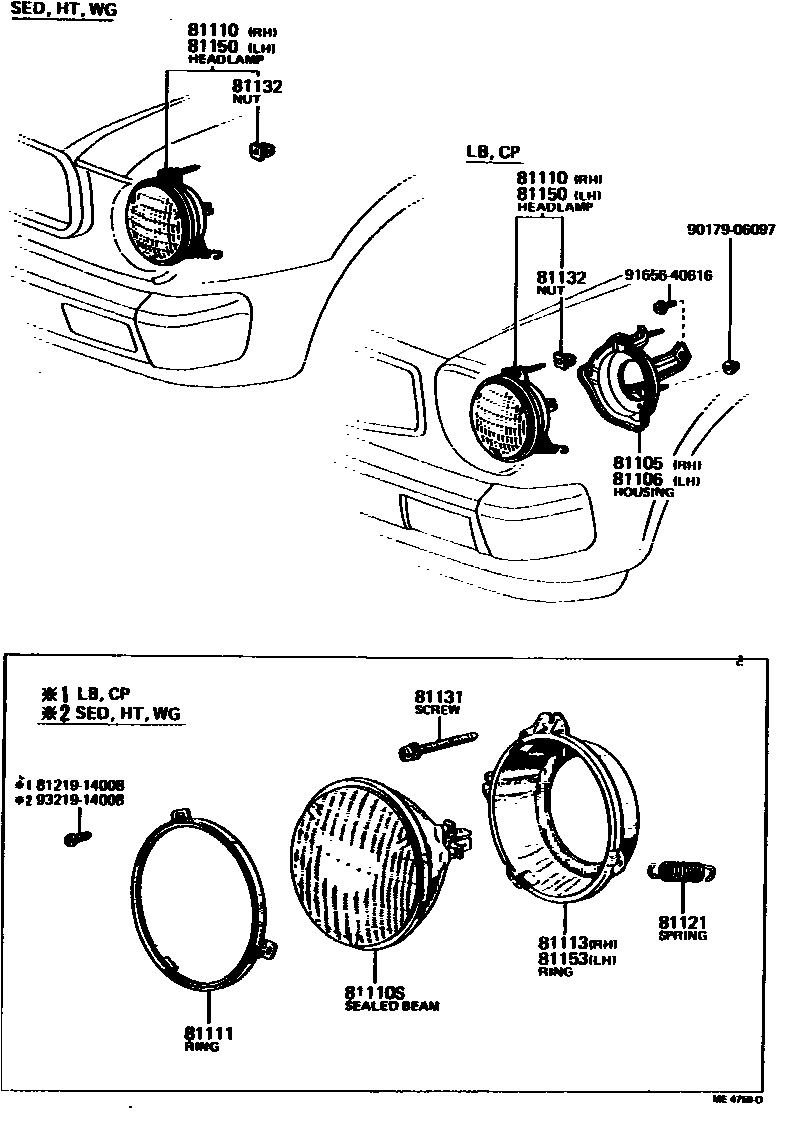

Toyota COROLLA — HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main53037-12010i197603-197908

81106HOUSING SUB-ASSY, HEADLAMP, LH

main53038-12010i197603-197908

81110HEADLAMP ASSY, RH

main81110-19425i197408-197808

KOITO

main81110-19435i197408-197410

TOSHIBA

main81110-19505i197603-197908

KOITO

main81110-19965i197808-197908

KOITO

main81110-19975i197808-197908

IKI

81110SSEALED BEAM UNIT, NO.1

main90981-01013×2i197408-197703

12V 50/40W,TOSHIBA

main90981-01016×2i197408-197908

12V 50/40W,KOITO

main90981-01025×2i197703-197805

12V 50/40W,TOSHIBA

main90981-01031×2i197805-197908

12V 50/40W,*WB,12V 50/40W,IKI

81111RING, SEALED BEAM RETAINING

main81111-10120×2i197408-197808

KOITO

main81111-12021×2i197410-197808

IKI

main81111-12420×2i197808-197901

IKI

main81111-12421×2i197901-197908

IKI

main81111-22150×2i197808-197908

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-10050i197603-197908

KOITO

main81113-12200i197408-197410

TOSHIBA

main81113-12210i197408-197808

KOITO

main81113-12410i197808-197908

KOITO

main81113-12420i197808-197908

IKI

81121SPRING, HEADLAMP TENSION

main81121-12070×2i197408-197908

KOITO

main81121-12140×2i197408-197410

TOSHIBA

main81121-62010×2i197603-197908

KOITO

81131SCREW, HEADLAMP ADJUSTING

main81131-10031×4i197603-197908

KOITO

main81131-12021×4i197410-197908

IKI

main81131-12150×4i197408-197908

KOITO

81132NUT, HEADLAMP SELF LOCKING

main90189-05013×4i197408-197908

81150HEADLAMP ASSY, LH

main81150-19375i197408-197808

KOITO

main81150-19385i197410-197805

IKI

main81150-19455i197603-197908

KOITO

main81150-19905i197808-197908

KOITO

main81150-19915i197808-197908

IKI

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-10010i197603-197908

KOITO

main81153-12140i197408-197410

TOSHIBA

main81153-12150i197408-197808

KOITO

main81153-12340i197808-197908

KOITO

main81153-12350i197808-197908

IKI

8121914008BOLT, FOG LAMP

main81219-14008

9017906097

main90179-06097

9165640616

main91656-40616

9321914008

main93219-14008

15 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota COROLLA

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH, SEALED BEAM UNIT, NO.1, RING, SEALED BEAM RETAINING.
