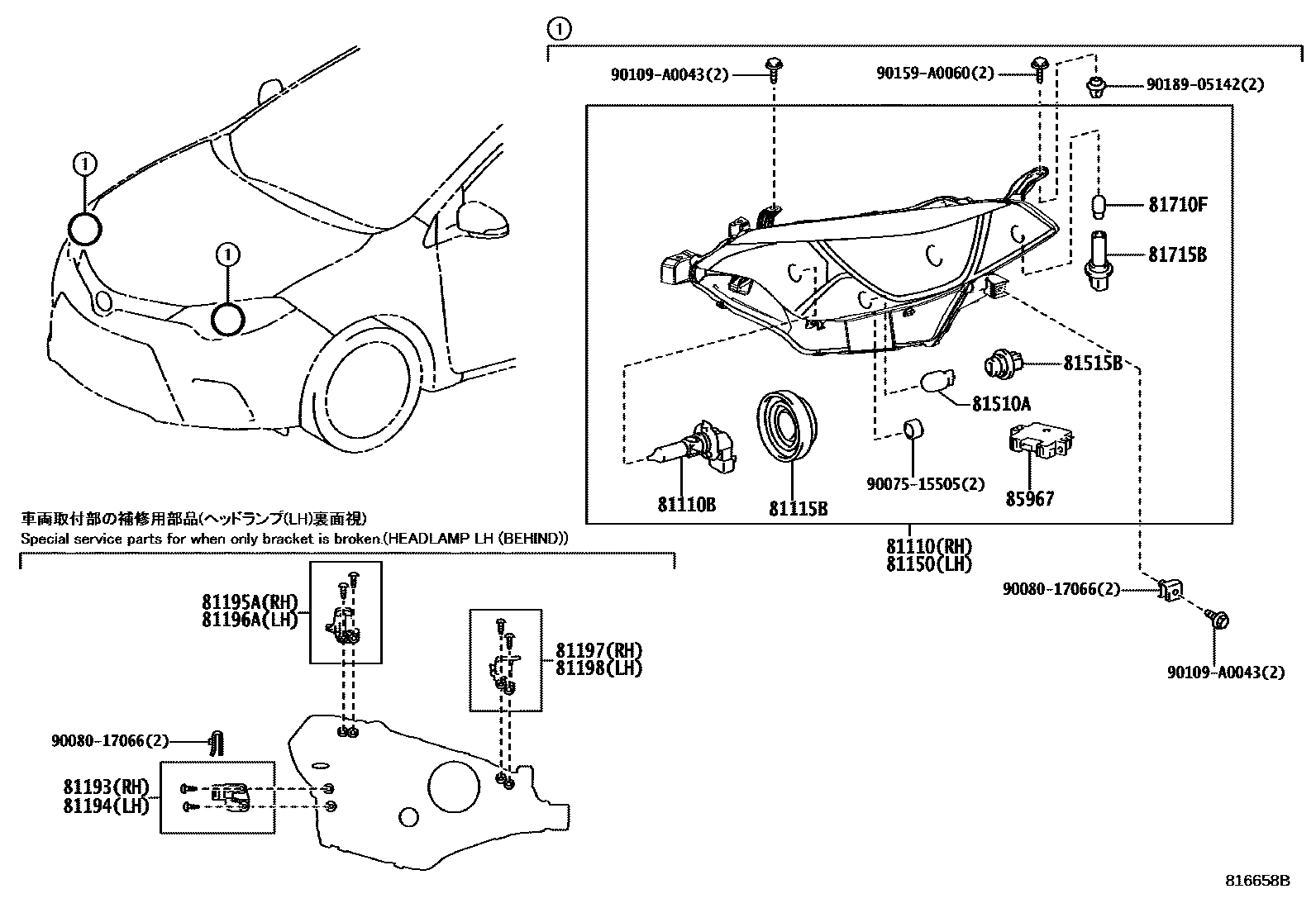

Toyota COROLLA — HEADLAMP

81110HEADLAMP ASSY, RH

main81110-02E60i201308-201608

main81110-02M70i201608

main81110-02M90i201608

PLUS3 PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2i201308-201608

12V65W(SAE),60W(ECE)

81115BSOCKET,HEADLAMP, NO.1

main90075-65006×2i201308-201608

81150HEADLAMP ASSY, LH

main81150-02E60i201308-201608

main81150-02M70i201608

main81150-02M90i201608

PLUS3 PACKAGE

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-02080i201308-201608

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-02080i201308-201608

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-02080i201308-201608

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-02080i201308-201608

81197BRACKET, HEADLAMP, LOWER RH

main81197-02080i201308-201608

81198BRACKET, HEADLAMP, LWR LH

main81198-02080i201308-201608

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024×2i201308-201608

12V 28/8W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-06470×2i201308-201608

main90075-60028×2i201608

PLUS3 PACKAGE

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050×2i201308-201608

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main90075-60077×2i201308-201608

main90075-60089×2i201608

85967COMPUTER, LIGHT CONTROL

main85967-02020×2i201308-201608

9007515505

main90075-15505

9008017066

main90080-17066

90109A0043

main90109-A0043

90159A0060

main90159-A0060

9018905142

main90189-05142

20 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota COROLLA

This section contains 22 genuine Toyota parts for the HEADLAMP system of the Toyota COROLLA. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), SOCKET,HEADLAMP, NO.1, COVER, HEADLAMP, HEADLAMP ASSY, LH.
