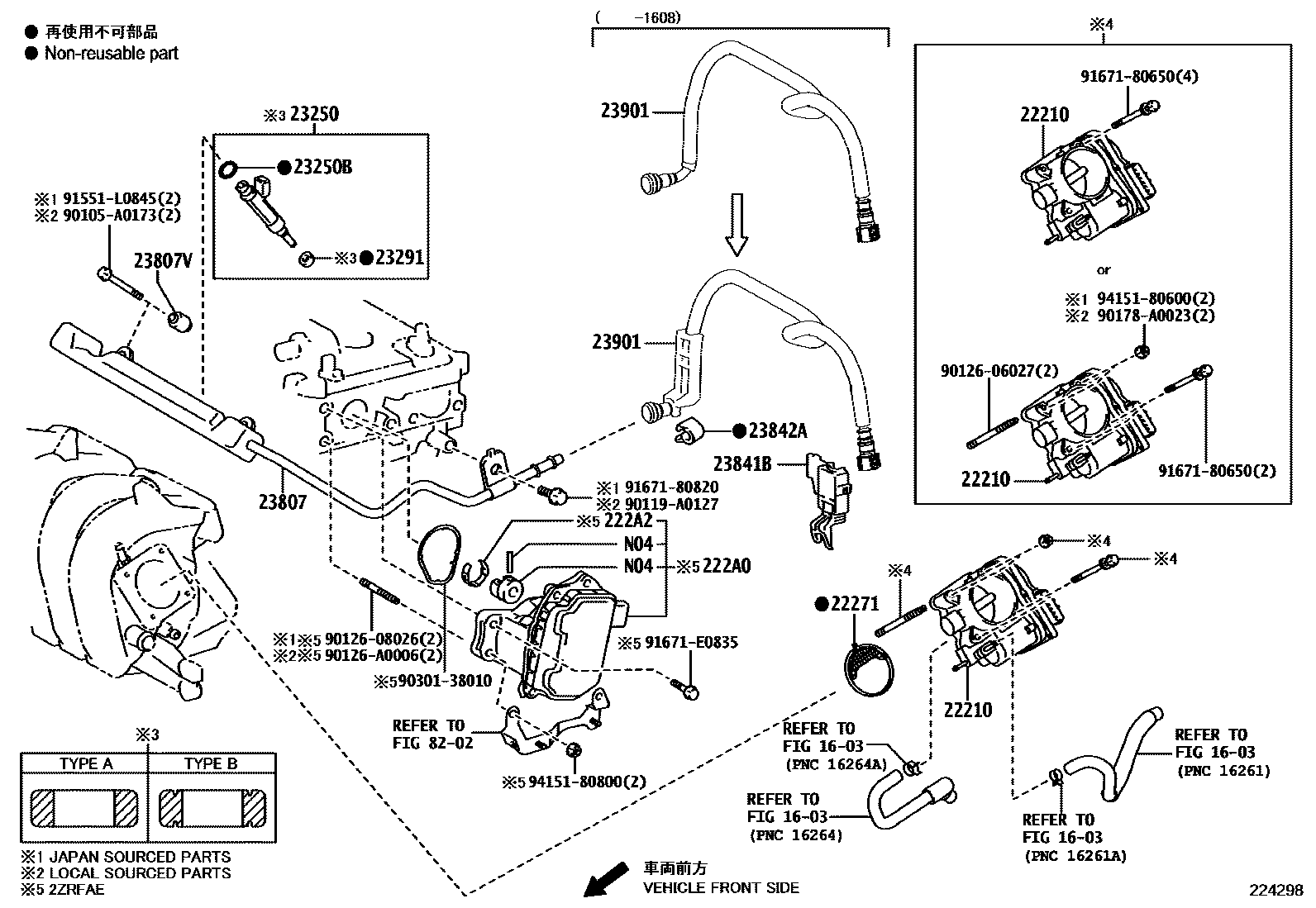

Toyota COROLLA — FUEL INJECTION SYSTEM
1603
22210BODY ASSY, THROTTLE
(L)
(J)
22271GASKET, THROTTLE BODY
(L)
(J)
222A0CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT
sub222A0-37020
sub222A0-37021
sub222A0-37022
sub222A0-37023
sub222A0-37024
sub222A0-37025
222A2CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR
23250INJECTOR ASSY, FUEL
(L)
(L)
(J),TYPE A
(J),TYPE B
(J)
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23291INSULATOR, INJECTOR VIBRATION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
8202
90105A0173
main90105-A0173
90119A0127
main90119-A0127
9012606027
main90126-06027
9012608026
main90126-08026
90126A0006
main90126-A0006
90178A0023
main90178-A0023
9030138010
main90301-38010
91551L0845
main91551-L0845
9167180650
main91671-80650
9167180820
main91671-80820
91671E0835
main91671-E0835
9415180600
main94151-80600
9415180800
main94151-80800
27 parts on this diagram · 1 diagram in section
