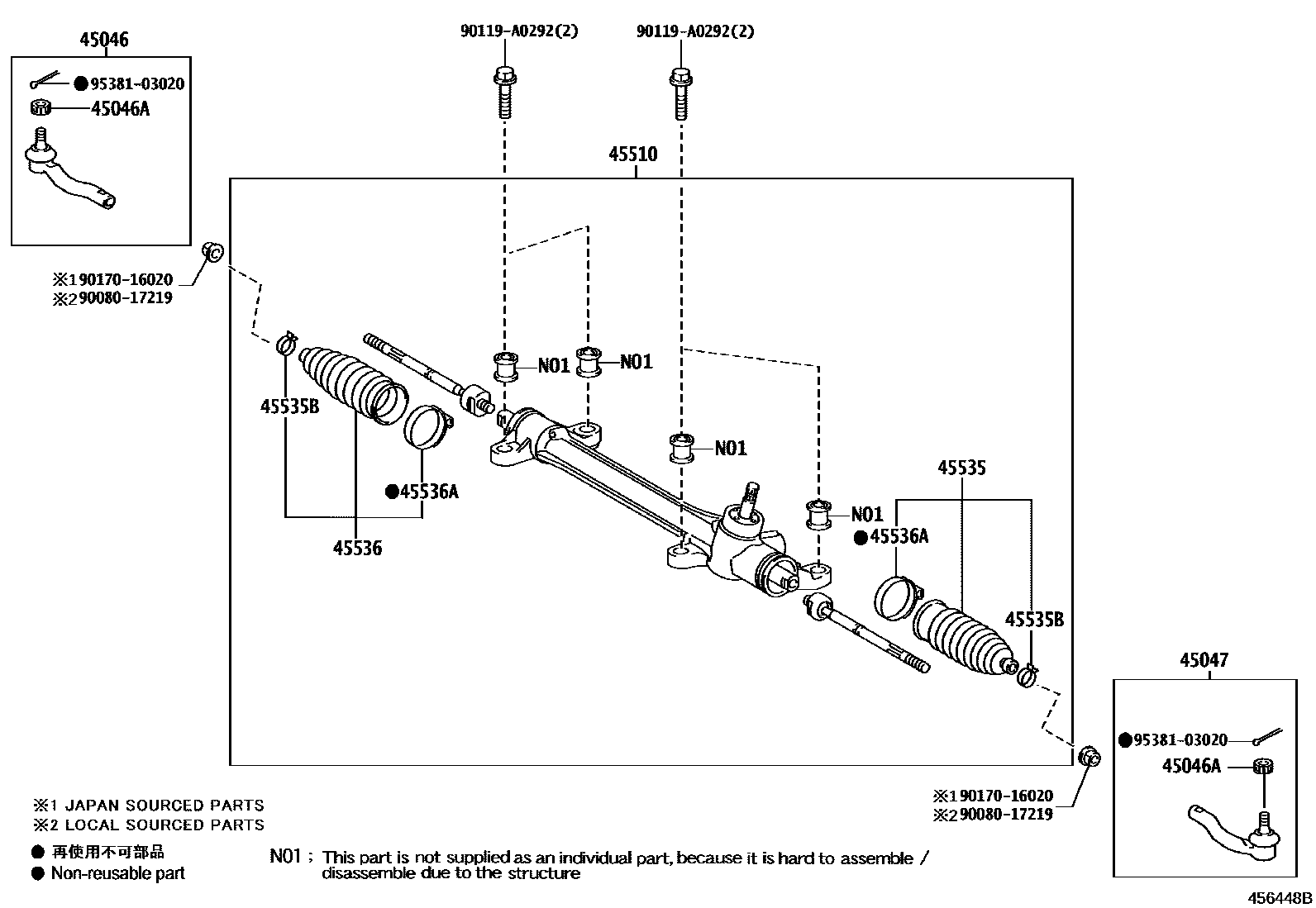

Toyota COROLLA — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09600i201308-201608

45046ANUT, CASTLE(FOR TIE ROD END)

main90080-17220×2i201308-201608

45047END SUB-ASSY, TIE ROD, LH

main45046-09600i201308-201608

45510GEAR ASSY, STEERING

main45510-02490i201308-201608

45535BOOT, STEERING RACK, NO.1

main45535-09200i201308-201608

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02020×2i201308-201608

45536BOOT, STEERING RACK, NO.2

main45535-09200i201308-201608

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02030×2i201308-201608

9008017219

main90080-17219

90119A0292

main90119-A0292

9017016020

main90170-16020

9538103020

main95381-03020

12 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota COROLLA

This section contains 12 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
