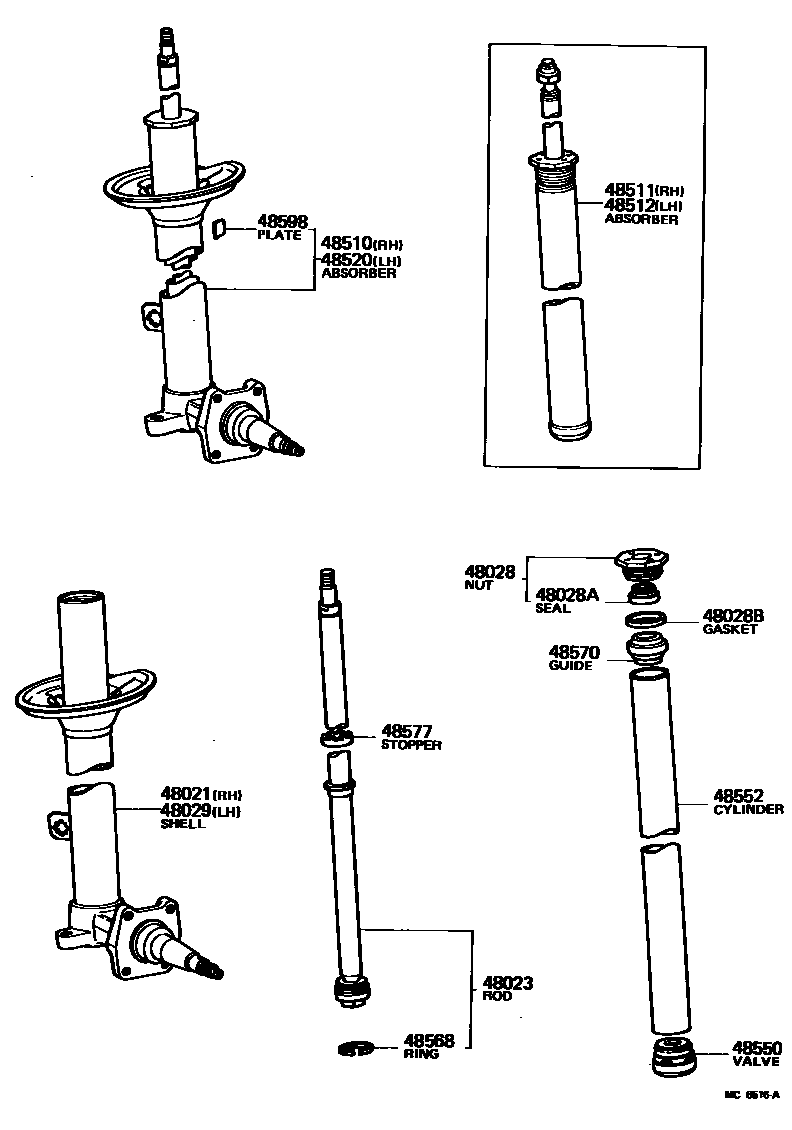

Toyota COROLLA — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48021SHELL SUB-ASSY, W/STEERING KNUCKLE, RH

main48021-12140iTE72197908-198108

main48021-12160iAE71,TE72198108-198307

48023ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT)

main48023-12151×2iTE72197908-198108

main48023-12200×2iAE71,TE72198108-198307

main48023-12210×2iAE71..(CP,HT)..USA198208-198307

SPORTS PACKAGE

48028NUT SUB-ASSY, SHOCK ABSORBER RING

main48028-14011×2iAE71,TE72197908-198307

sub48028-14012

48028ASEAL, OIL(FOR SHOCK ABSORBER RING NUT)

main90316-22001×2iAE71,TE72197908-198307

48028BGASKET(FOR SHOCK ABSORBER RING NUT)

main90430-43206×2iAE71,TE72197908-198307

48029SHELL SUB-ASSY, W/STEERING KNUCKLE, LH

main48029-12020iTE72197908-198108

main48029-12040iAE71,TE72198108-198307

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12181iTE72197908-198108

sub48510-12161

main48510-12230iAE71,TE72198108-198307

main48510-12250iAE71..(CP,HT)..USA198208-198307

SPORTS PACKAGE

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12110iTE72197908-198108

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12110iTE72197908-198108

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12061iTE72197908-198108

sub48520-12041

main48520-12110iAE71,TE72198108-198307

main48520-12130iAE71..(CP,HT)..USA198208-198307

SPORTS PACKAGE

48550VALVE ASSY, SHOCK ABSORBER BASE

main48550-12150×2iTE72197908-198108

main48550-12170iAE71..(CP,HT)..USA198208-198307

SPORTS PACKAGE

sub48550-14060

main48550-12210×2iAE71,TE72198108-198307

sub48550-14050

48552CYLINDER, SHOCK ABSORBER(FOR FRONT)

main48552-12030×2iAE71,TE72197908-198307

48568RING, SHOCK ABSORBER PISTON

main48568-22020×2iAE71,TE72197908-198307

main48568-22021×2iAE71198307-198307

48570GUIDE ASSY, SHOCK ABSORBER ROD

main48022-14010×2iAE71,TE72197908-198307

sub48022-22040

sub90430-42001

48577STOPPER, SHOCK ABSORBER REBOUND

main48579-14011×2iAE71,TE72197908-198307

48598PLATE, ABSORBER NAME

main48598-12251iTE72197908-198108

RH

main48598-12261iTE72197908-198108

LH

main48598-12350iAE71,TE72198108-198307

RH

main48598-12360iAE71,TE72198108-198307

LH

main48598-12390iAE71..(CP,HT)..USA198208-198307

RH,SPORTS PACKAGE

main48598-12400iAE71..(CP,HT)..USA198208-198307

LH,SPORTS PACKAGE

16 parts on this diagram · 2 diagrams in section
